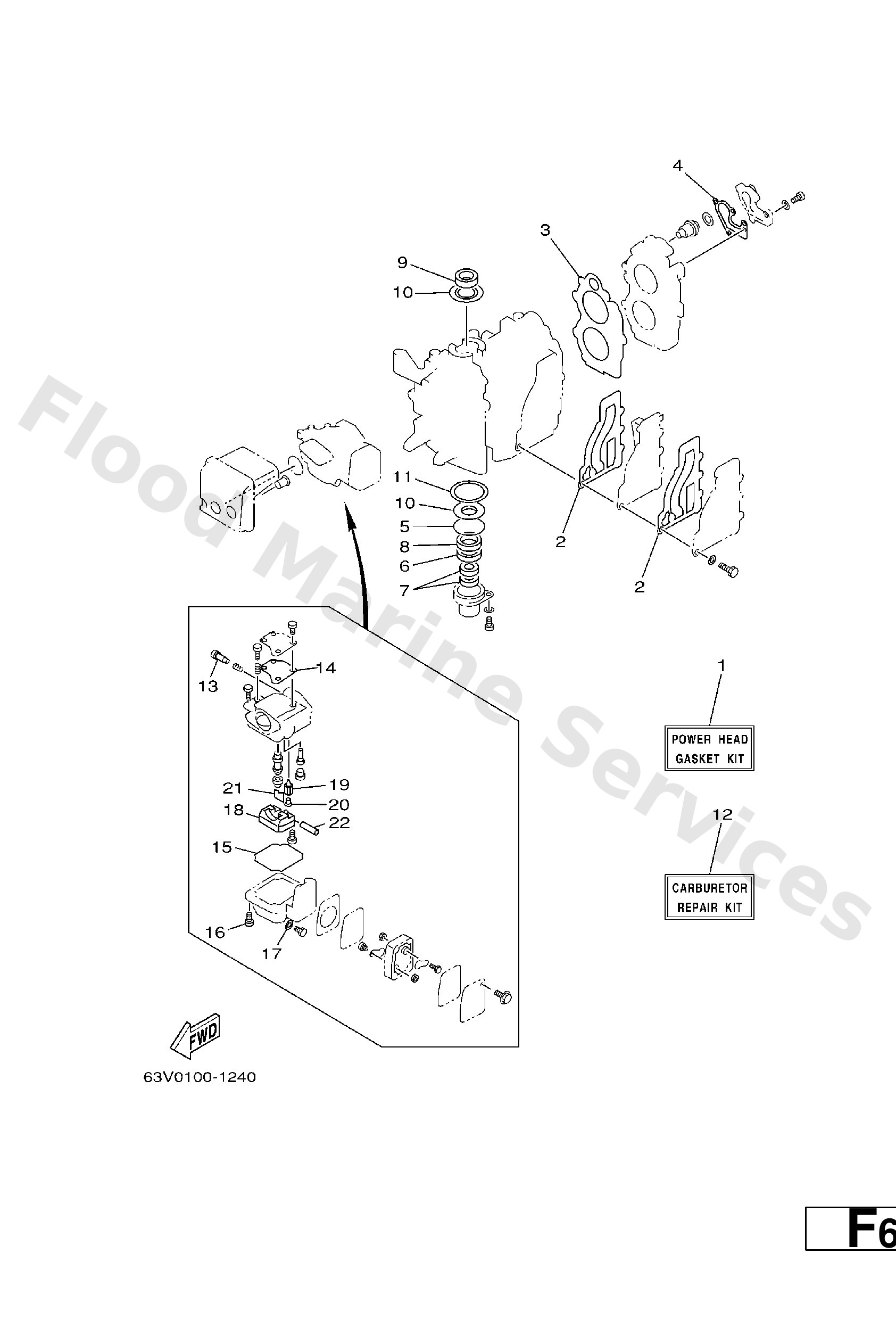

Diagram: REPAIR KIT 1

Diagram

Parts List

63V--W0001--02
Gasket kit
Diagram Reference: 1
Get Part
63V--41112--A0
Gasket, exhaust inner cover
Diagram Reference: 2
Get Part
63V11181A1
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
682--12414--A1
Gasket, cover
Diagram Reference: 4
Get Part
93210--46M16
O-ring (688)
Diagram Reference: 5
Get Part
93101--25018
Oil seal
Diagram Reference: 6
Get Part
93101--13018
Oil seal
Diagram Reference: 7
Get Part
93102--25M48
Oil seal(63v)
Diagram Reference: 8
Get Part
93110--23M00
Oil seal (682)
Diagram Reference: 9
Get Part
63V--11445--00
Spacer
Diagram Reference: 10
Get Part
90201--46M29
Washer, plate(63v)
Diagram Reference: 11
Get Part
63V--W0093--00
Carburetor repair kit
Diagram Reference: 12
Get Part
679--14923--00
Screw, pilot
Diagram Reference: 13
Get Part
63V--14126--00
Gasket
Diagram Reference: 14
Get Part
63V--14984--00
Gasket, float chamber
Diagram Reference: 15
Get Part
97980--04114
Screw, pan head(ga5)
Diagram Reference: 16
Get Part
6G1--14398--00
Washer
Diagram Reference: 17
Get Part
63V--14985--00
Float
Diagram Reference: 18
Get Part
6G1--14546--00
Valve, needle
Diagram Reference: 19
Get Part
676--14186--00
Pin, valve
Diagram Reference: 20
Get Part
663--14159--00
Clip
Diagram Reference: 21
Get Part
6H4--14548--00
Pin, float arm
Diagram Reference: 22
Get Part
