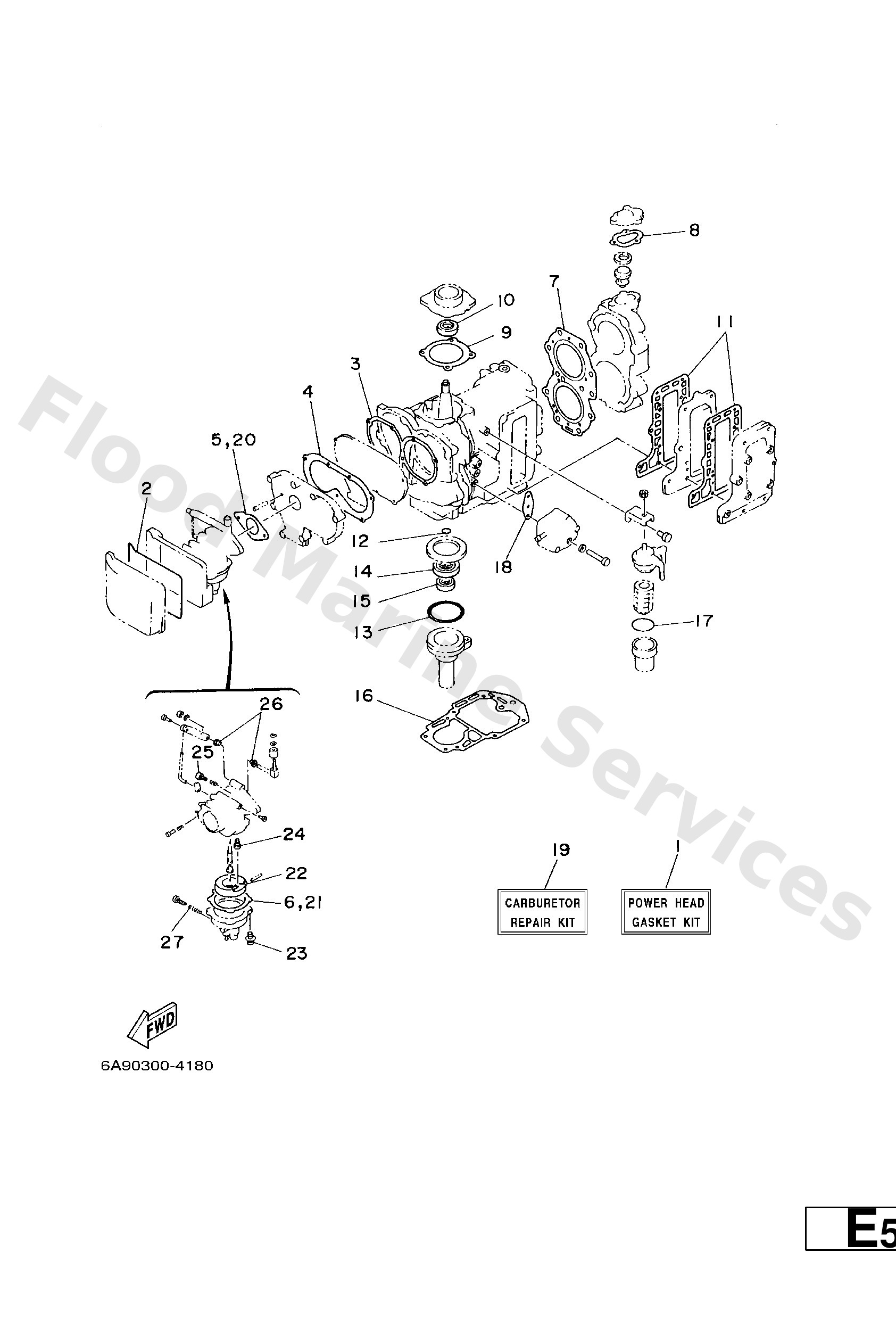

Diagram: REPAIR KIT 1

Diagram

Parts List

695W000103
18 −
Diagram Reference: 1
Get Part
6951447600
Seal
Diagram Reference: 2
Get Part
648--13621--A1
Gasket, valve seat
Diagram Reference: 3
Get Part
648--13645--A0
Gasket, manifold 1
Diagram Reference: 4
Get Part
64814198A0
Gasket
Diagram Reference: 5
Get Part
6481438401
Gasket,float chamber
Diagram Reference: 6
Get Part
69511181A1
Gasket, cylinder head 1
Diagram Reference: 7
Get Part
655--12414--A1
Gasket, cover
Diagram Reference: 8
Get Part
66415369A0
Gasket, oil seal housing
Diagram Reference: 9
Get Part
93102--23096
Oil seal (23x38x7-648)
Diagram Reference: 10
Get Part
66441114A0
Gasket, exhaust outer cover
Diagram Reference: 11
Get Part
93210--16275
O-ring
Diagram Reference: 12
Get Part
93210--58M21
O-ring (683)
Diagram Reference: 13
Get Part
9310125M35
Oil seal(6a4)
Diagram Reference: 14
Get Part
93101--16M36
Oil seal(6a8)
Diagram Reference: 15
Get Part
689--45113--A1
Gasket, upper casing
Diagram Reference: 16
Get Part
93210--32738
O-ring(1wg)
Diagram Reference: 17
Get Part
650--24431--A0
Gasket,fuel pump
Diagram Reference: 18
Get Part
689W009302
Carburetor repair kit
Diagram Reference: 19
Get Part
6481438500
Float
Diagram Reference: 22
Get Part
97980--04112
Screw, pan head (686)
Diagram Reference: 23
Get Part
6J01439014
Valve seat assembly
Diagram Reference: 24
Get Part
647--14323--00
Screw, air adjusting
Diagram Reference: 25
Get Part
9038605002
Bush 626412910000
Diagram Reference: 26
Get Part
6461439700
O−Ring
Diagram Reference: 27
