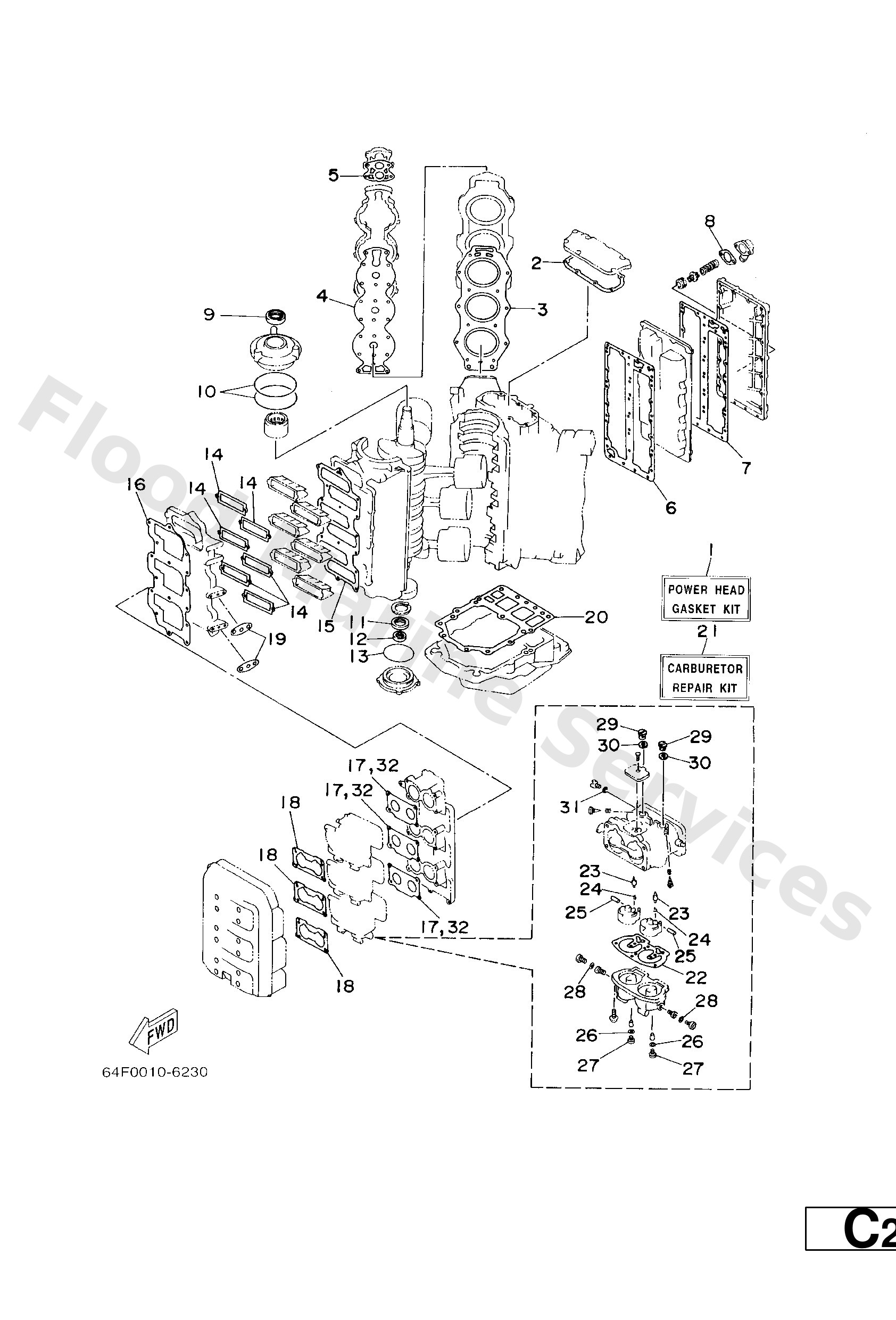

Diagram: REPAIR KIT 1

Diagram

Parts List

64FW000100
Power head gasket kit
Diagram Reference: 1
Get Part
6E5--11381--A2
Gasket 1
Diagram Reference: 2
Get Part
6G5--11181--A1
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
6G5--11193--A0
Gasket, head cover 1
Diagram Reference: 4
Get Part
688--12414--A1
Gasket, cover
Diagram Reference: 5
Get Part
6G5--41112--A1
Gasket, exhaust inner cover
Diagram Reference: 6
Get Part
6G5--11382--A1
Gasket 2
Diagram Reference: 8
Get Part
93102--40M14
Oil seal(61a)
Diagram Reference: 9
Get Part
93211--04001
O-ring
Diagram Reference: 10
Get Part
93102--35M13
Oil seal (6e5)
Diagram Reference: 11
Get Part
93101--22M15
Oil seal (6e5)
Diagram Reference: 12
Get Part
93210--74M35
O-ring (6e5)
Diagram Reference: 13
Get Part
6K7--13621--A1
Gasket, valve seat
Diagram Reference: 14
Get Part
6K7--13646--A2
Gasket, manifold 2
Diagram Reference: 15
Get Part
64E--13645--A0
Gasket, manifold 1
Diagram Reference: 16
Get Part
6E5--14198--A2
Gasket
Diagram Reference: 17
Get Part
6K7--14483--00
Gasket
Diagram Reference: 18
Get Part
650--24431--A0
Gasket,fuel pump
Diagram Reference: 19
Get Part
6G5--45113--A1
Gasket, upper casing
Diagram Reference: 20
Get Part
64D--W0093--01
Carburetor repair kit
Diagram Reference: 21
Get Part
64D--14384--01
Gasket, float chamber
Diagram Reference: 22
Get Part
6E5--14546--00
Valve, needle
Diagram Reference: 23
Get Part
6E5--14159--00
Clip
Diagram Reference: 24
Get Part
6E5--14386--02
Pin, float
Diagram Reference: 25
Get Part
61U--14959--00
Gasket
Diagram Reference: 26
Get Part
64D--14394--00
Valve, drain
Diagram Reference: 27
Get Part
6E5--14398--01
Gasket
Diagram Reference: 28
Get Part
6E5--14328--01
Plug
Diagram Reference: 29
Get Part
6E5--14979--00
Gasket
Diagram Reference: 30
Get Part
6J8--14959--00
Gasket, drin screw
Diagram Reference: 31
Get Part
