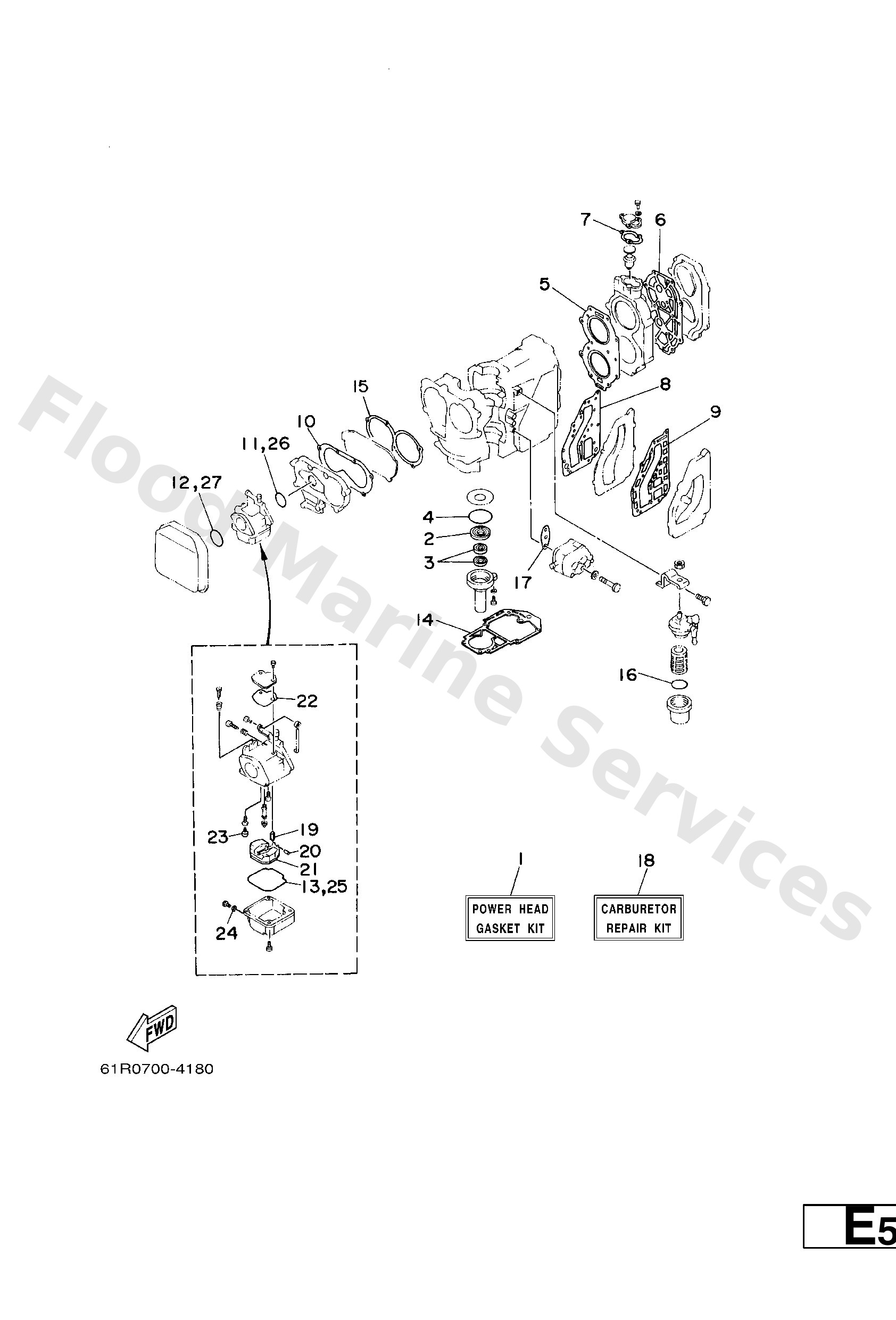

Diagram: REPAIR KIT 1

Diagram

Parts List

69P−W0001−00
Power head gasket kit
Diagram Reference: 1
Get Part
93102−25008
Oil seal
Diagram Reference: 2
Get Part
93101−16001
Oil seal
Diagram Reference: 3
Get Part
93210−58M21
O-ring (683)
Diagram Reference: 4
Get Part
61N−11181−A1
Gasket, cylinder head 1
Diagram Reference: 5
Get Part
61T−11193−A1
Gasket, head cover 1
Diagram Reference: 6
Get Part
655−12414−A1
Gasket, cover
Diagram Reference: 7
Get Part
6K8−41122−A1
Gasket, exhaust inner cover
Diagram Reference: 8
Get Part
6K8−41124−A1
Gasket, exhaust outer cover
Diagram Reference: 9
Get Part
648−13645−A0
Gasket, manifold 1
Diagram Reference: 10
Get Part
61N−14198−00
Gasket
Diagram Reference: 11
Get Part
93210−40659
O-ring(36y)
Diagram Reference: 12
Get Part
6L2−14384−00
Gasket, float chamber
Diagram Reference: 13
Get Part
689−45113−A1
Gasket, upper casing
Diagram Reference: 14
Get Part
648−13621−A1
Gasket, valve seat
Diagram Reference: 15
Get Part
93210−32738
O-ring(1wg)
Diagram Reference: 16
Get Part
650−24431−A0
Gasket,fuel pump
Diagram Reference: 17
Get Part
61N−W0093−00
Carburetor repair kit
Diagram Reference: 18
Get Part
61N−14392−00
Valve, needle
Diagram Reference: 19
Get Part
6E5−14386−01
Pin, float
Diagram Reference: 20
Get Part
6L2−14385−00
Float
Diagram Reference: 21
Get Part
6L2−14399−00
Gasket
Diagram Reference: 22
Get Part
50M−14355−00
Plug
Diagram Reference: 23
Get Part
6L2−14398−00
Gasket
Diagram Reference: 24
Get Part
