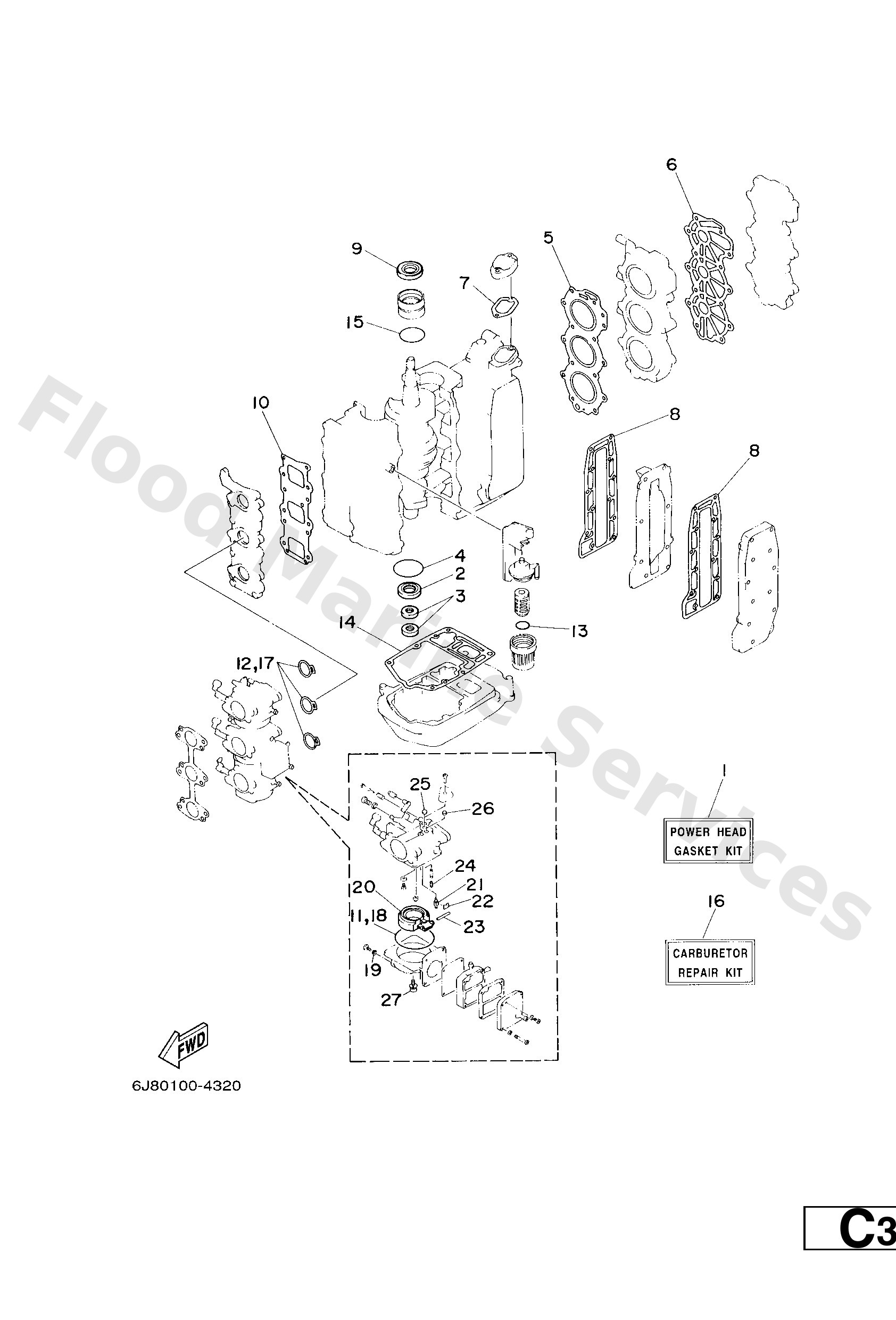

Diagram: REPAIR KIT 1

Diagram

Parts List

6J8W000103
Powerhead gasket kit
Diagram Reference: 1
Get Part
9310125M28
Oil seal(6j8)
Diagram Reference: 2
Get Part
9310416M04
Oil seal(6a8)
Diagram Reference: 3
Get Part
9321056M80
O-ring(6j8)
Diagram Reference: 4
Get Part
6J811181A1
Gasket, cylinder head 1
Diagram Reference: 5
Get Part
6J811193A1
Gasket, head cover 1
Diagram Reference: 6
Get Part
6J812414A0
Gasket, cover
Diagram Reference: 7
Get Part
6J841114A0
Gasket, exhaust outer cover
Diagram Reference: 8
Get Part
9310226M27
Oil seal(6j8)
Diagram Reference: 9
Get Part
6J81362100
Gasket, valve seat
Diagram Reference: 10
Get Part
6J81498400
Gasket, float chamber
Diagram Reference: 11
Get Part
6J81419800
Gasket
Diagram Reference: 12
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 13
Get Part
6J845113A0
Gasket, upper casing
Diagram Reference: 14
Get Part
9321042159
O-ring (647)
Diagram Reference: 15
Get Part
6J8W009300
Carburetor rerair kit
Diagram Reference: 16
Get Part
6J81499500
Gasket, drin screw
Diagram Reference: 19
Get Part
6J81498500
Float
Diagram Reference: 20
Get Part
6J81454600
Valve, needle
Diagram Reference: 21
Get Part
6J81415900
Clip
Diagram Reference: 22
Get Part
6J81454800
Pin, float arm
Diagram Reference: 23
Get Part
6J81496600
Plug
Diagram Reference: 24
Get Part
6J81412600
Plug
Diagram Reference: 25
Get Part
6J81411800
Plug
Diagram Reference: 26
Get Part
9798004112
Screw, pan head (686)
Diagram Reference: 27
Get Part
