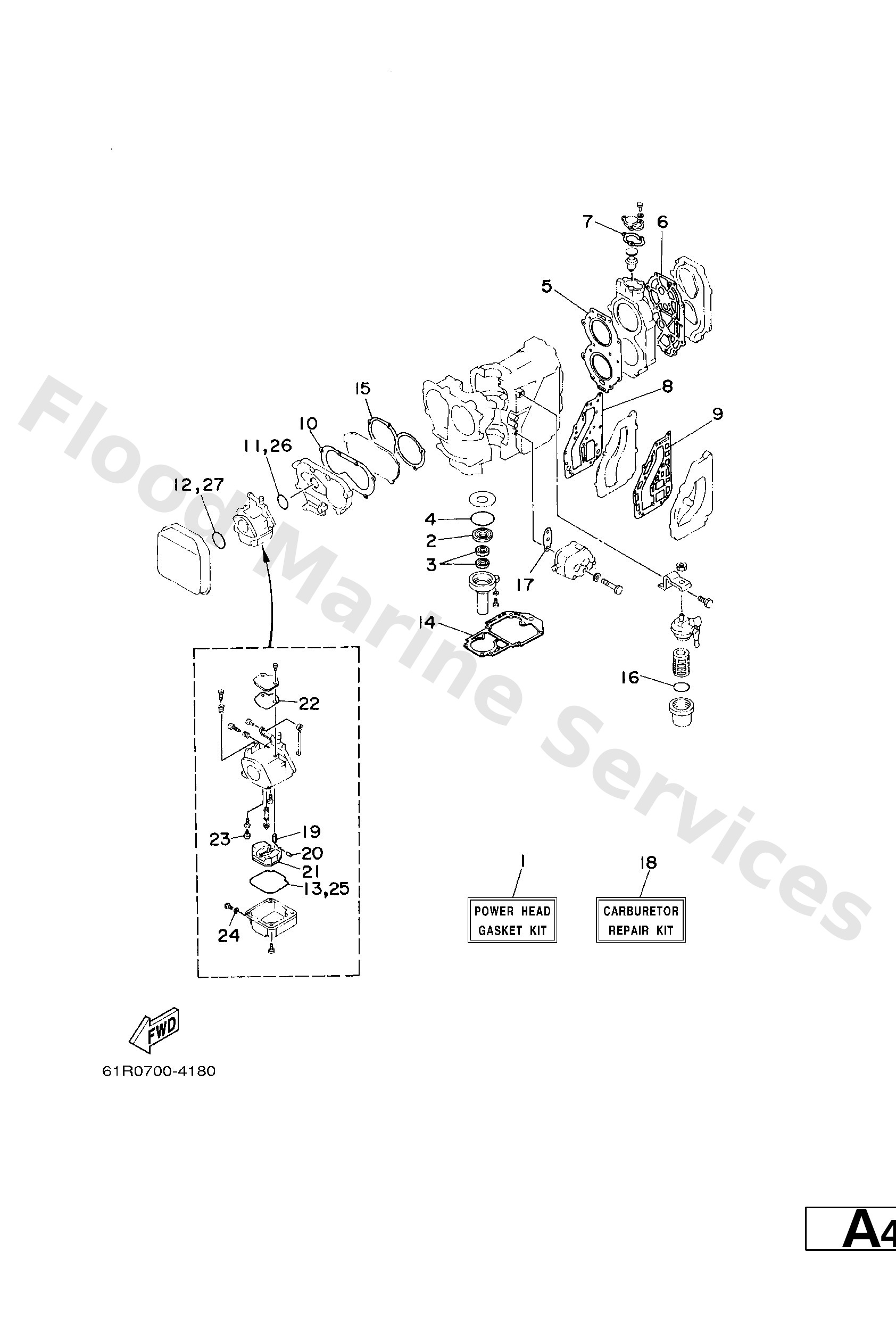

Diagram: REPAIR KIT 1

Diagram

Parts List

69P--W0001--00
Power head gasket kit
Diagram Reference: 1
Get Part
93102--25008
Oil seal
Diagram Reference: 2
Get Part
93101--16001
Oil seal
Diagram Reference: 3
Get Part
93210--58M21
O-ring (683)
Diagram Reference: 4
Get Part
61N--11181--A1
Gasket, cylinder head 1
Diagram Reference: 5
Get Part
61T--11193--A1
Gasket, head cover 1
Diagram Reference: 6
Get Part
655--12414--A1
Gasket, cover
Diagram Reference: 7
Get Part
6K8--41122--A1
Gasket, exhaust inner cover
Diagram Reference: 8
Get Part
6K8--41124--A1
Gasket, exhaust outer cover
Diagram Reference: 9
Get Part
648--13645--A0
Gasket, manifold 1
Diagram Reference: 10
Get Part
61N--14198--00
Gasket
Diagram Reference: 11
Get Part
93210--40659
O-ring(36y)
Diagram Reference: 12
Get Part
6L2--14384--00
Gasket, float chamber
Diagram Reference: 13
Get Part
689--45113--A1
Gasket, upper casing
Diagram Reference: 14
Get Part
648--13621--A1
Gasket, valve seat
Diagram Reference: 15
Get Part
93210--32738
O-ring(1wg)
Diagram Reference: 16
Get Part
650--24431--A0
Gasket,fuel pump
Diagram Reference: 17
Get Part
61N--W0093--00
Carburetor repair kit
Diagram Reference: 18
Get Part
61N--14392--00
Valve, needle
Diagram Reference: 19
Get Part
6E5--14386--01
Pin, float
Diagram Reference: 20
Get Part
6L2--14385--00
Float
Diagram Reference: 21
Get Part
6L2--14399--00
Gasket
Diagram Reference: 22
Get Part
50M--14355--00
Plug
Diagram Reference: 23
Get Part
6L2--14398--00
Gasket
Diagram Reference: 24
Get Part
