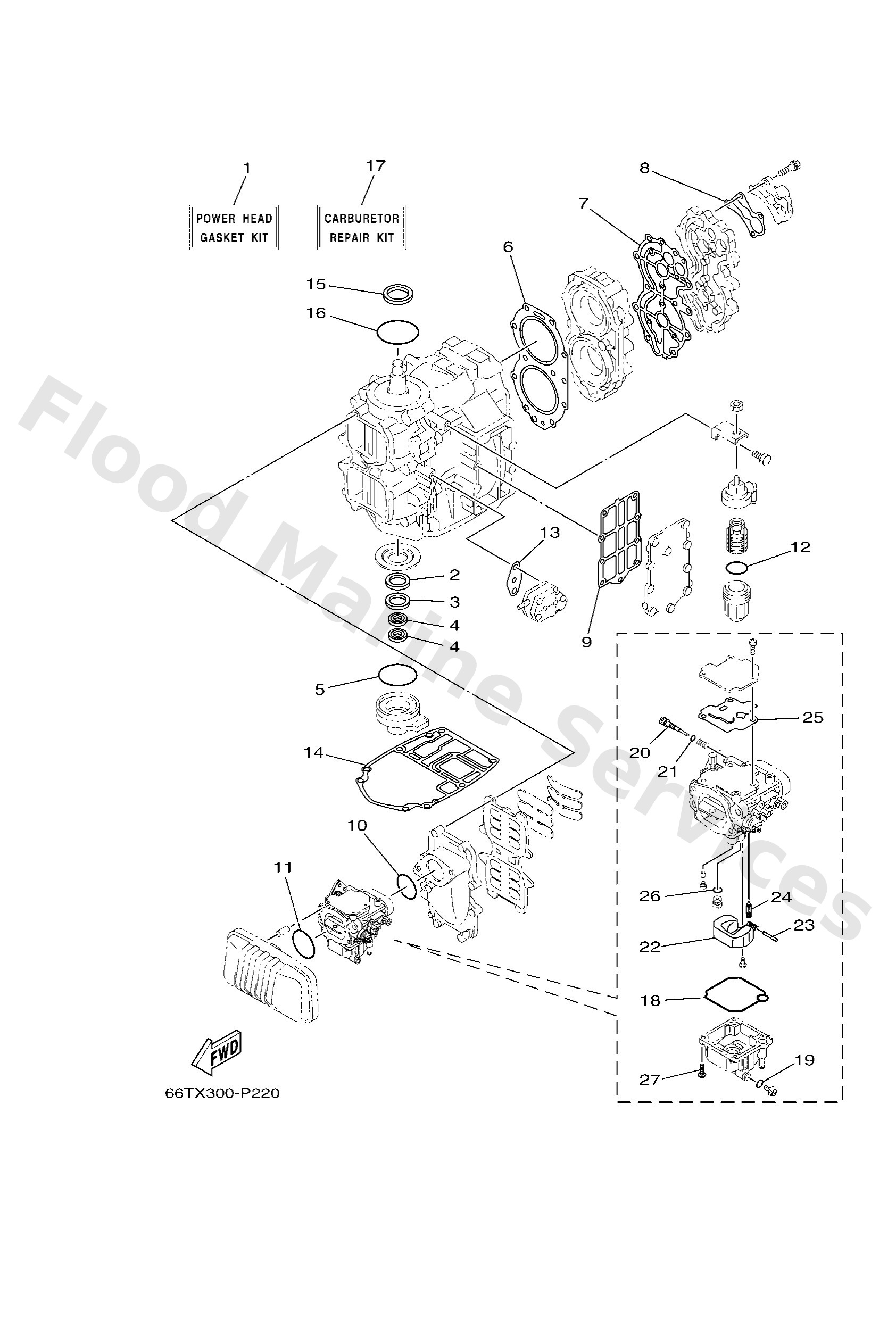

Diagram: REPAIR KIT 1

Diagram

Parts List

66TW000102
Power head gasket kit
Diagram Reference: 1
Get Part
9310230M56
Oil seal
Diagram Reference: 2
Get Part
9310130M33
Oil seal(6f5)
Diagram Reference: 3
Get Part
9310116001
Oil seal
Diagram Reference: 4
Get Part
9321065M50
O-ring
Diagram Reference: 5
Get Part
66T11181A3
Gasket, cylinder head 1
Diagram Reference: 6
Get Part
66T11193A3
Gasket, head cover 1
Diagram Reference: 7
Get Part
67612414A1
Gasket, cover
Diagram Reference: 8
Get Part
66T41114A0
Gasket, exhaust outer cover
Diagram Reference: 9
Get Part
9321046M16
O-ring (688)
Diagram Reference: 10
Get Part
9321054M54
O-ring (6g1)
Diagram Reference: 11
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 12
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 13
Get Part
66T45113A0
Gasket, upper casing
Diagram Reference: 14
Get Part
9310235008
Oil seal
Diagram Reference: 15
Get Part
9321075M51
O-ring (6f5)
Diagram Reference: 16
Get Part
66TW009310
Carburetor repair kit
Diagram Reference: 17
Get Part
66T1498460
Gasket, float chamber
Diagram Reference: 18
Get Part
6521439700
Ring, o
Diagram Reference: 19
Get Part
66T1432360
Screw, air adjusting
Diagram Reference: 20
Get Part
6521414700
Ring, o
Diagram Reference: 21
Get Part
66T1438560
Float
Diagram Reference: 22
Get Part
6E51438601
Pin, float
Diagram Reference: 23
Get Part
6C51454610
Valve, needle
Diagram Reference: 24
Get Part
66T1453660
Gasket
Diagram Reference: 25
Get Part
62Y1422700
O-ring
Diagram Reference: 26
Get Part
62Y1432100
Screw, throttle
Diagram Reference: 27
Get Part
