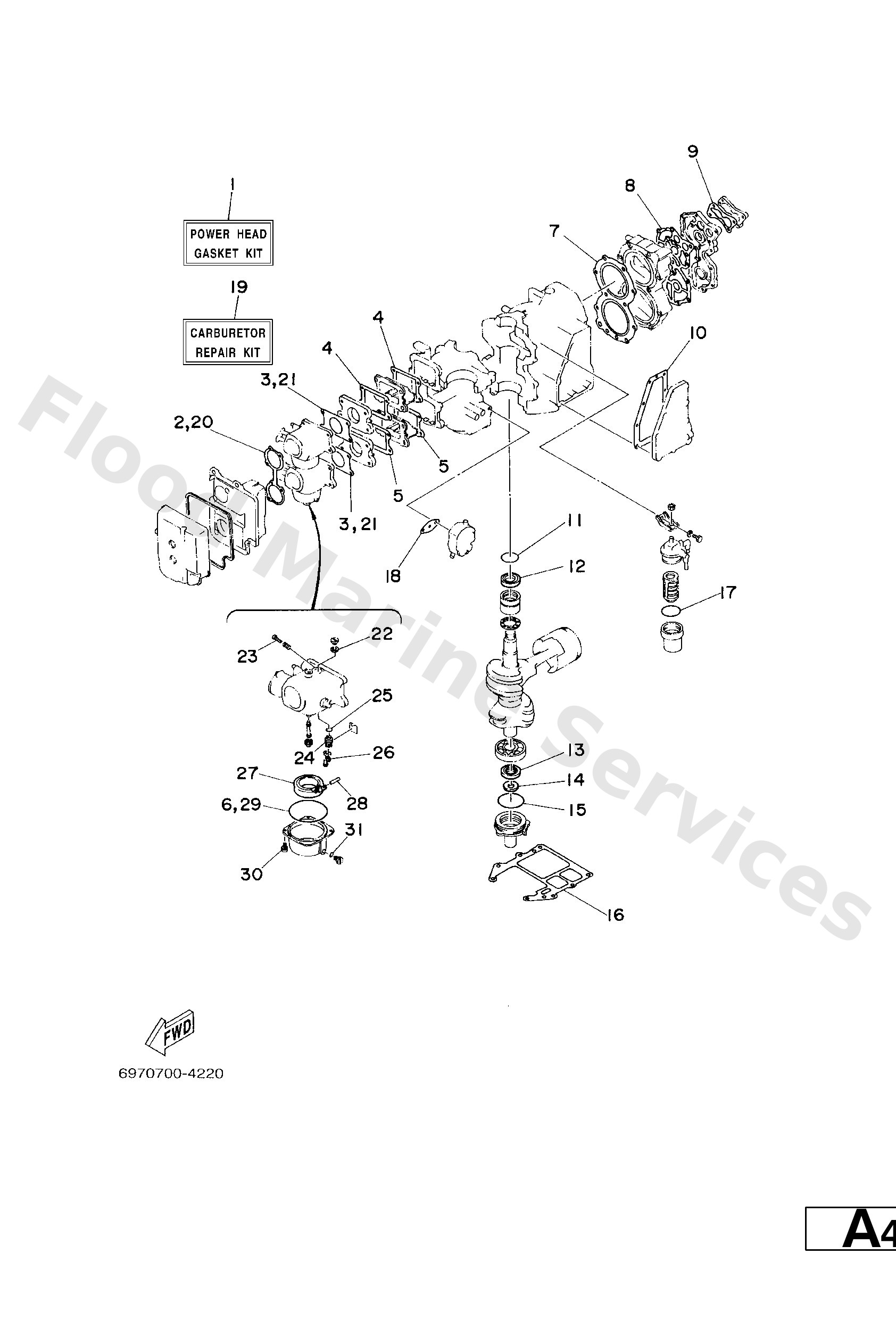

Diagram: REPAIR KIT 1

Diagram

Parts List

697W000102
Power head gasket kit
Diagram Reference: 1
Get Part
66314483A0
Gasket, plate
Diagram Reference: 2
Get Part
66314198A0
Gasket
Diagram Reference: 3
Get Part
66313621A0
Packing, valve seat 1
Diagram Reference: 4
Get Part
66313622A0
Packing, valve seat 2
Diagram Reference: 5
Get Part
9321064272
O-ring (663) (carb)
Diagram Reference: 6
Get Part
69711181A1
Gasket, cylinder head 1
Diagram Reference: 7
Get Part
66311193A0
Gasket, head cover
Diagram Reference: 8
Get Part
66312414A0
Gasket, thermostat
Diagram Reference: 9
Get Part
66341114A0
Gasket, exhaust outer cover
Diagram Reference: 10
Get Part
93210--42159
O-ring (647)
Diagram Reference: 11
Get Part
93102--32M07
Oil seal (697)
Diagram Reference: 12
Get Part
9310228135
Oil seal (28x47x7-663)
Diagram Reference: 13
Get Part
9310418049
Oil seal (18x30x5-663)
Diagram Reference: 14
Get Part
93210--62269
Ring, o(663)
Diagram Reference: 15
Get Part
69645113A0
Gasket,upper casing
Diagram Reference: 16
Get Part
93210--32738
O-ring(1wg)
Diagram Reference: 17
Get Part
650--24431--A0
Gasket,fuel pump
Diagram Reference: 18
Get Part
696W009302
Carburetor repair kit
Diagram Reference: 19
Get Part
6791455700
Washer (carb)
Diagram Reference: 22
Get Part
6631492300
Screw, adjust
Diagram Reference: 23
Get Part
6961459000
Needle valve assembly
Diagram Reference: 24
Get Part
9321007229
O-ring (371)
Diagram Reference: 25
Get Part
8101418600
Pin, valve
Diagram Reference: 26
Get Part
6F01498500
Float comp.
Diagram Reference: 27
Get Part
6631454800
Pin, arm
Diagram Reference: 28
Get Part
97980--04112
Screw, pan head (686)
Diagram Reference: 30
Get Part
93210--04230
O-ring (371)
Diagram Reference: 31
Get Part
