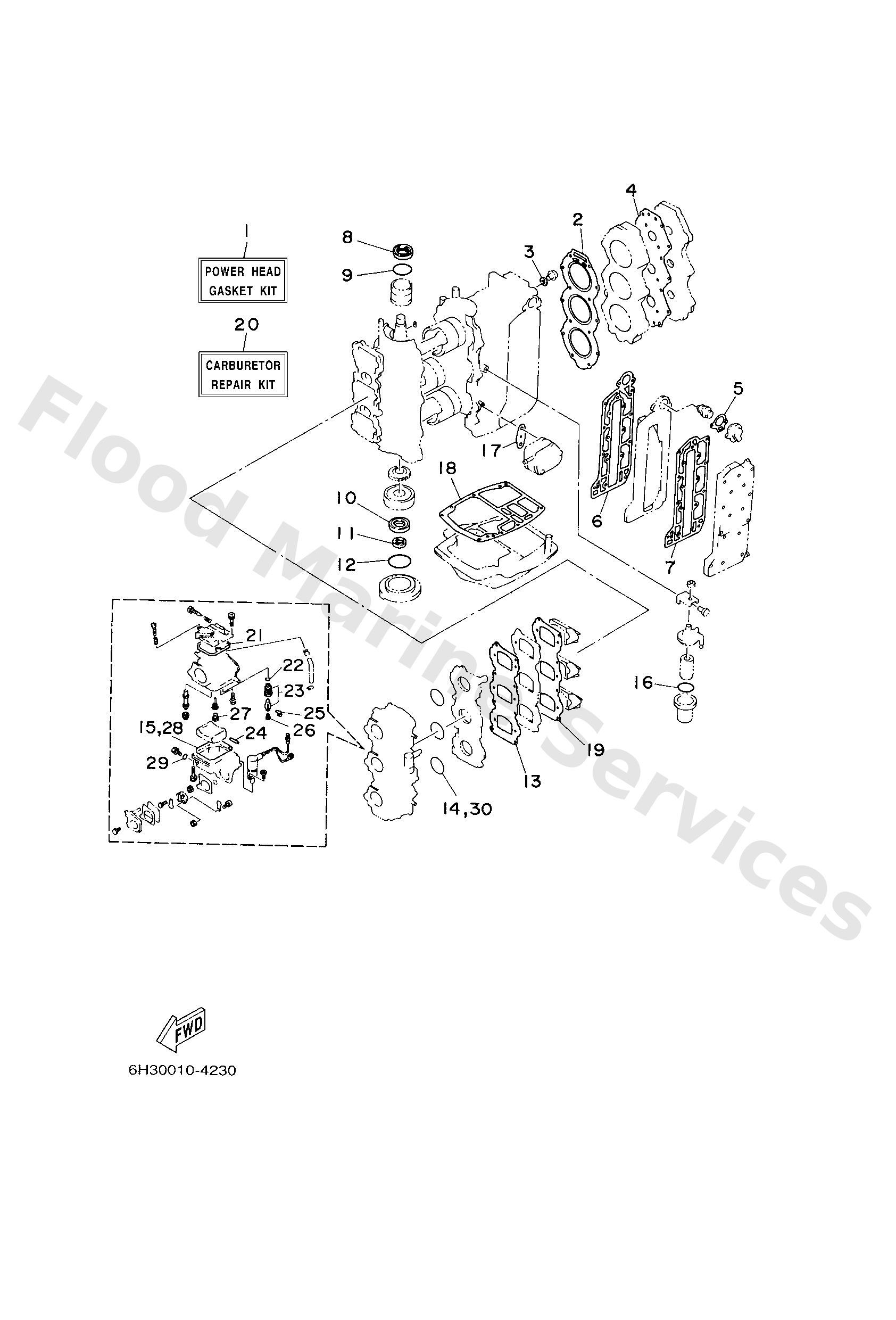

Diagram: REPAIR KIT 1

Diagram

Parts List

6H3W000102 (AUTO CHOKE)
Power head gasket kit
Diagram Reference: 1
Get Part
6H311181A1
Gasket, cylinder head 1
Diagram Reference: 2
Get Part
9043014115
Gasket (663)
Diagram Reference: 3
Get Part
6H311193A1
Gasket, head cover 1
Diagram Reference: 4
Get Part
6H312414A1
Gasket, cover
Diagram Reference: 5
Get Part
6H341112A0
Gasket, exhaust inner cover
Diagram Reference: 6
Get Part
6H341114A0
Gasket, exhaust outer cover
Diagram Reference: 7
Get Part
9310236M24
Oil seal(52w)
Diagram Reference: 8
Get Part
9321046M16
O-ring (688)
Diagram Reference: 9
Get Part
9310230M23
Oil seal (6h3)
Diagram Reference: 10
Get Part
9310618M01
Oil seal (6h3)
Diagram Reference: 11
Get Part
9321065M50
O-ring
Diagram Reference: 12
Get Part
6H313621A1
Gasket, valve seat
Diagram Reference: 13
Get Part
9321039ME4
O-ring(6h2)
Diagram Reference: 14
Get Part
6H41498400
Gasket, float chamber
Diagram Reference: 15
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 16
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 17
Get Part
6H345113A0
Gasket, upper casing
Diagram Reference: 18
Get Part
6H313622A1
Gasket, valve seat
Diagram Reference: 19
Get Part
6H2W009310 (AUTO CHOKE)
Carburetor repair kit
Diagram Reference: 20
Get Part
6H41414700
O-ring
Diagram Reference: 21
Get Part
9321004228
O-ring (371)
Diagram Reference: 22
Get Part
6H31459001
Needle valve assembly
Diagram Reference: 23
Get Part
6H41454800
Pin, float arm
Diagram Reference: 24
Get Part
6631415900
Clip
Diagram Reference: 25
Get Part
6761418600
Pin, valve
Diagram Reference: 26
Get Part
6761496600
Rubber cap
Diagram Reference: 27
Get Part
9321004230
O-ring (371)
Diagram Reference: 29
Get Part
