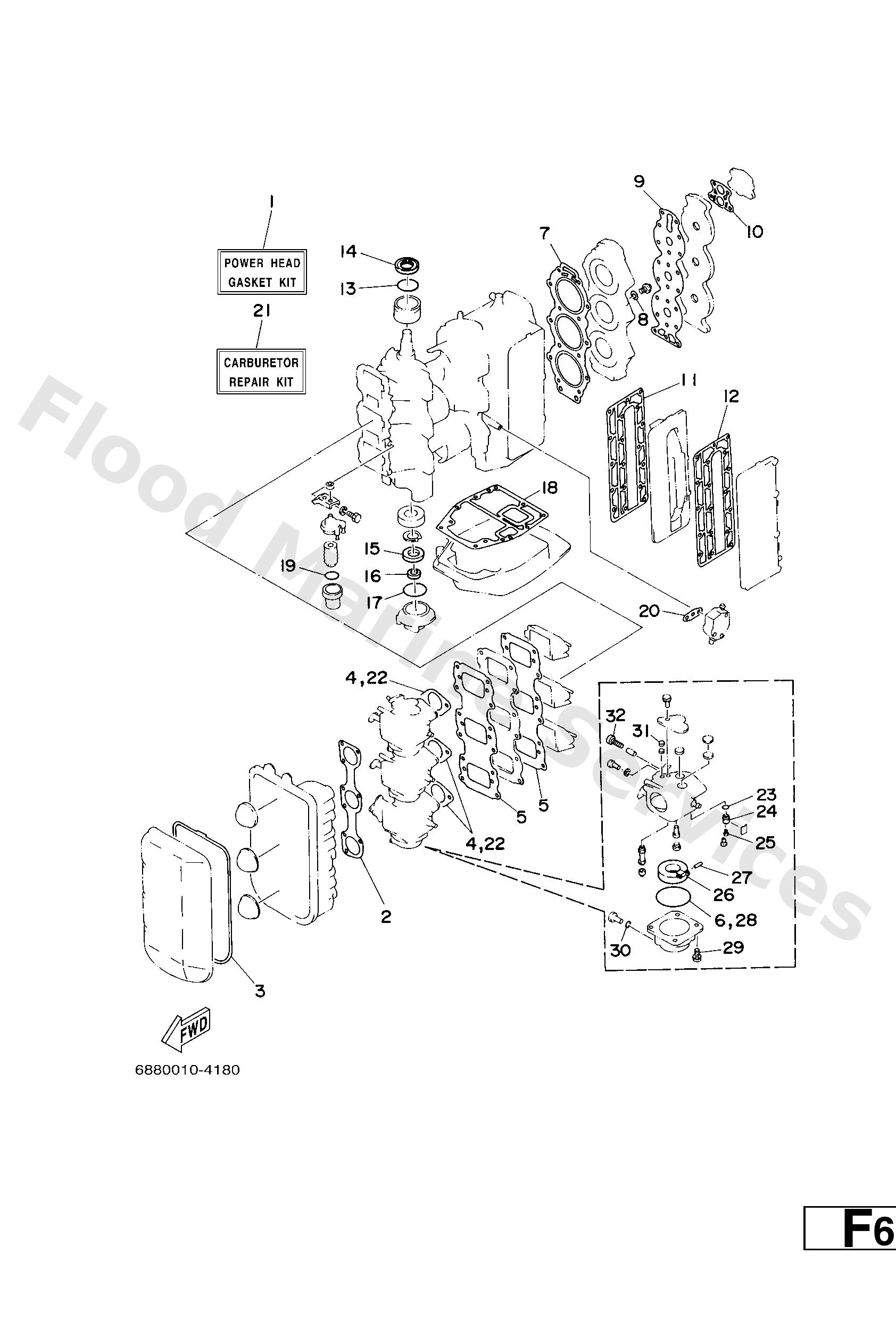

Diagram: REPAIR KIT 1

Diagram

Parts List

688W000102
Power head gasket kit
Diagram Reference: 1
Get Part
68814483A0
Gasket
Diagram Reference: 2
Get Part
6881441601
Gasket, air cleaner
Diagram Reference: 3
Get Part
68814198A2
Gasket
Diagram Reference: 4
Get Part
68813621A1
Gasket, valve seat
Diagram Reference: 5
Get Part
6761498400
Gasket, float chamber
Diagram Reference: 6
Get Part
68811181A1
Gasket, cylinder head 1
Diagram Reference: 7
Get Part
9043014115
Gasket (663)
Diagram Reference: 8
Get Part
68811193A1
Gasket, head cover 1
Diagram Reference: 9
Get Part
68812414A1
Gasket, cover
Diagram Reference: 10
Get Part
68841112A0
Gasket, exhaust inner cover
Diagram Reference: 11
Get Part
68841114A0
Gasket, exhaust outer cover
Diagram Reference: 12
Get Part
9321046M16
O-ring (688)
Diagram Reference: 13
Get Part
9310236M02
Oil seal(52w)
Diagram Reference: 14
Get Part
9310230M05
Oil seal (688)
Diagram Reference: 15
Get Part
9310420M02
Oil seal (688)
Diagram Reference: 16
Get Part
9321062269
Ring, o(663)
Diagram Reference: 17
Get Part
68845113A0
Gasket, upper casing
Diagram Reference: 18
Get Part
9321032738
O-ring(1wg)
Diagram Reference: 19
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 20
Get Part
6H1W009301
Carburetor repair kit
Diagram Reference: 21
Get Part
9321004228
O-ring (371)
Diagram Reference: 23
Get Part
6921459001
Needle valve assembly
Diagram Reference: 24
Get Part
6761418600
Pin, valve
Diagram Reference: 25
Get Part
6761498501
Float comp
Diagram Reference: 26
Get Part
6881454800
Pin, arm
Diagram Reference: 27
Get Part
9798004114
Screw, pan head(ga5)
Diagram Reference: 29
Get Part
9321004230
O-ring (371)
Diagram Reference: 30
Get Part
6631412600
Packing
Diagram Reference: 31
Get Part
6921492300
Screw, adjusting
Diagram Reference: 32
Get Part
