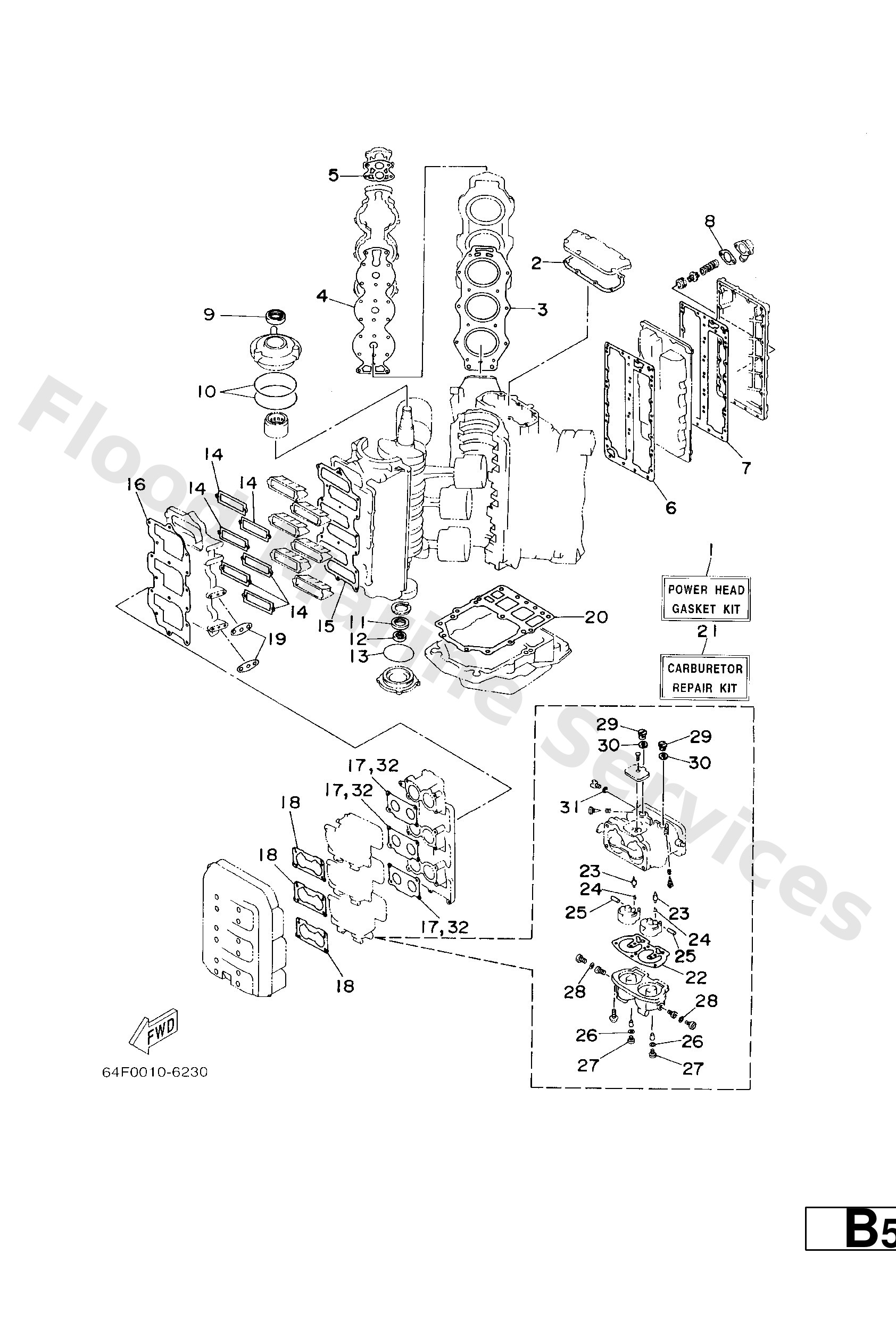

Diagram: REPAIR KIT 1

Diagram

Parts List

65NW000101
-
Diagram Reference: 1
Get Part
6E511381A2
Gasket 1
Diagram Reference: 2
Get Part
6G511181A1
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
6G511193A0
Gasket, head cover 1
Diagram Reference: 4
Get Part
68812414A1
Gasket, cover
Diagram Reference: 5
Get Part
6G541112A1
Gasket, exhaust inner cover
Diagram Reference: 6
Get Part
6G541114A0
Gasket, exhaust inner cover
Diagram Reference: 7
Get Part
6G511382A1
Gasket 2
Diagram Reference: 8
Get Part
9310240M14
Oil seal(61a)
Diagram Reference: 9
Get Part
9321104001
O-ring
Diagram Reference: 10
Get Part
9310235M13
Oil seal (6e5)
Diagram Reference: 11
Get Part
9310122M15
Oil seal (6e5)
Diagram Reference: 12
Get Part
9321074M35
O-ring (6e5)
Diagram Reference: 13
Get Part
6K713621A1
Gasket, valve seat
Diagram Reference: 14
Get Part
6K713646A2
Gasket, manifold 2
Diagram Reference: 15
Get Part
64E13645A0
Gasket, manifold 1
Diagram Reference: 16
Get Part
6E514198A2
Gasket
Diagram Reference: 17
Get Part
6K71448300
Gasket
Diagram Reference: 18
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 19
Get Part
6G545113A1
Gasket, upper casing
Diagram Reference: 20
Get Part
65NW009300
Carburetor repair kit
Diagram Reference: 21
Get Part
64D1438401
Gasket, float chamber
Diagram Reference: 22
Get Part
6E51454600
Valve, needle
Diagram Reference: 23
Get Part
6E51415900
Clip
Diagram Reference: 24
Get Part
6E51438602
Pin, float
Diagram Reference: 25
Get Part
61U1495900
Gasket
Diagram Reference: 26
Get Part
64D1439400
Valve, drain
Diagram Reference: 27
Get Part
6E51439801
Gasket
Diagram Reference: 28
Get Part
6E51432801
Plug
Diagram Reference: 29
Get Part
6E51497900
Gasket
Diagram Reference: 30
Get Part
6J81495900
Gasket, drin screw
Diagram Reference: 31
