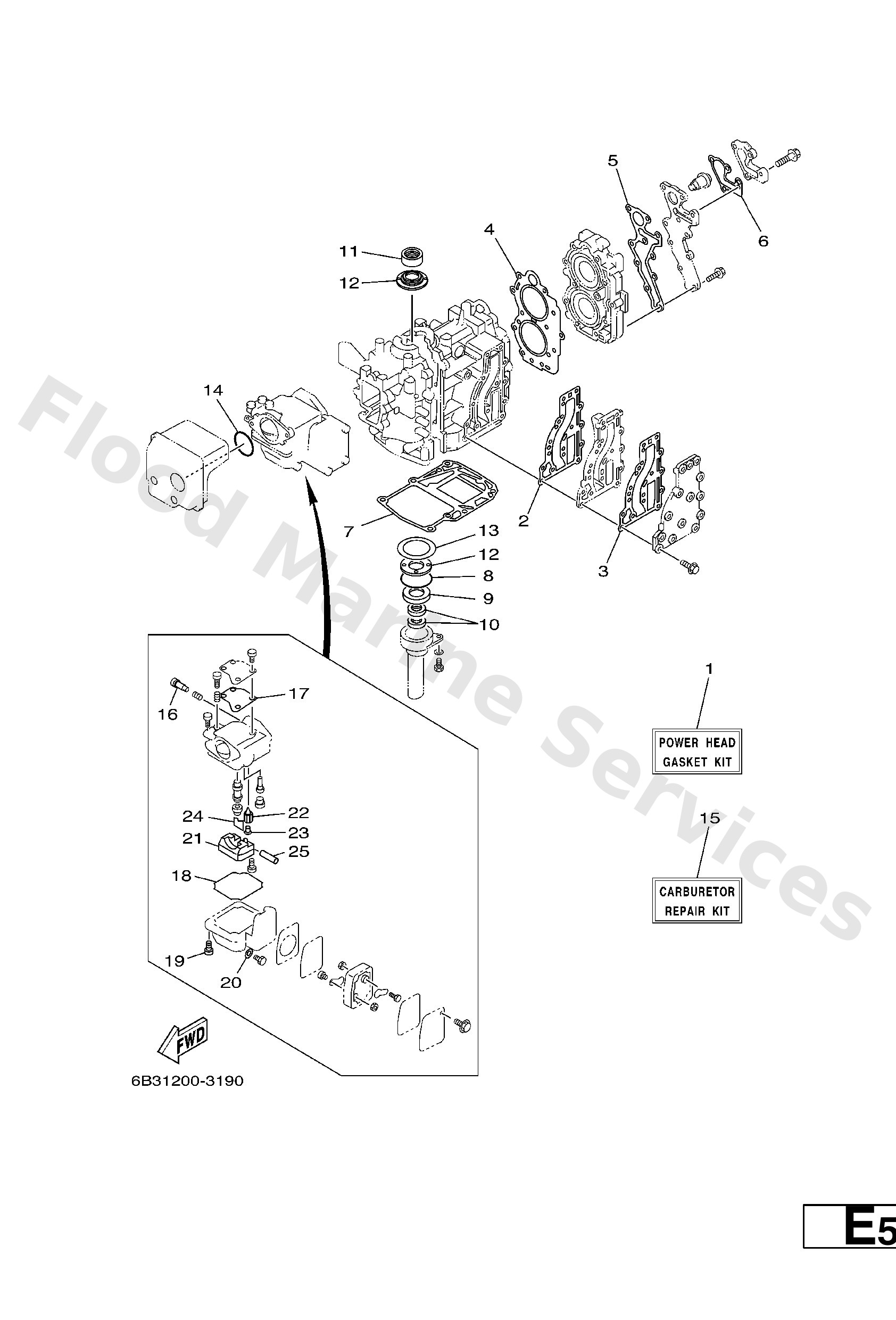

Diagram: REPAIR KIT 1

Diagram

Parts List

6B4−W0001−00
Power head gasket kit
Diagram Reference: 1
Get Part
6B4−41112−A0
Gasket, exhaust inner cover
Diagram Reference: 2
Get Part
63V−41112−A0
Gasket, exhaust inner cover
Diagram Reference: 3
Get Part
63V−11181−A1
Gasket, cylinder head 1
Diagram Reference: 4
Get Part
6B4−11193−A0
2−
Diagram Reference: 5
Get Part
682−12414−A1
Gasket, cover
Diagram Reference: 6
Get Part
6B4−11351−A0
Gasket, cylinder
Diagram Reference: 7
Get Part
93210−46M16
O-ring (688)
Diagram Reference: 8
Get Part
93102−25010
Oil seal
Diagram Reference: 9
Get Part
93101−13M27
Oil seal (6g8)
Diagram Reference: 10
Get Part
93110−23M00
Oil seal (682)
Diagram Reference: 11
Get Part
63V−11445−00
Spacer
Diagram Reference: 12
Get Part
90201−46M29
Washer, plate(63v)
Diagram Reference: 13
Get Part
93210−35M86
O-ring(6l2)
Diagram Reference: 14
Get Part
63V−W0093−00
Carburetor repair kit
Diagram Reference: 15
Get Part
679−14923−00
Screw, pilot
Diagram Reference: 16
Get Part
63V−14126−00
Gasket
Diagram Reference: 17
Get Part
63V−14984−00
Gasket, float chamber
Diagram Reference: 18
Get Part
97980−04114
Screw, pan head(ga5)
Diagram Reference: 19
Get Part
6G1−14398−00
Washer
Diagram Reference: 20
Get Part
63V−14985−00
Float
Diagram Reference: 21
Get Part
6G1−14546−01
Valve, needle
Diagram Reference: 22
Get Part
676−14186−00
Pin, valve
Diagram Reference: 23
Get Part
663−14159−00
Clip
Diagram Reference: 24
Get Part
6H4−14548−00
Pin, float arm
Diagram Reference: 25
Get Part
