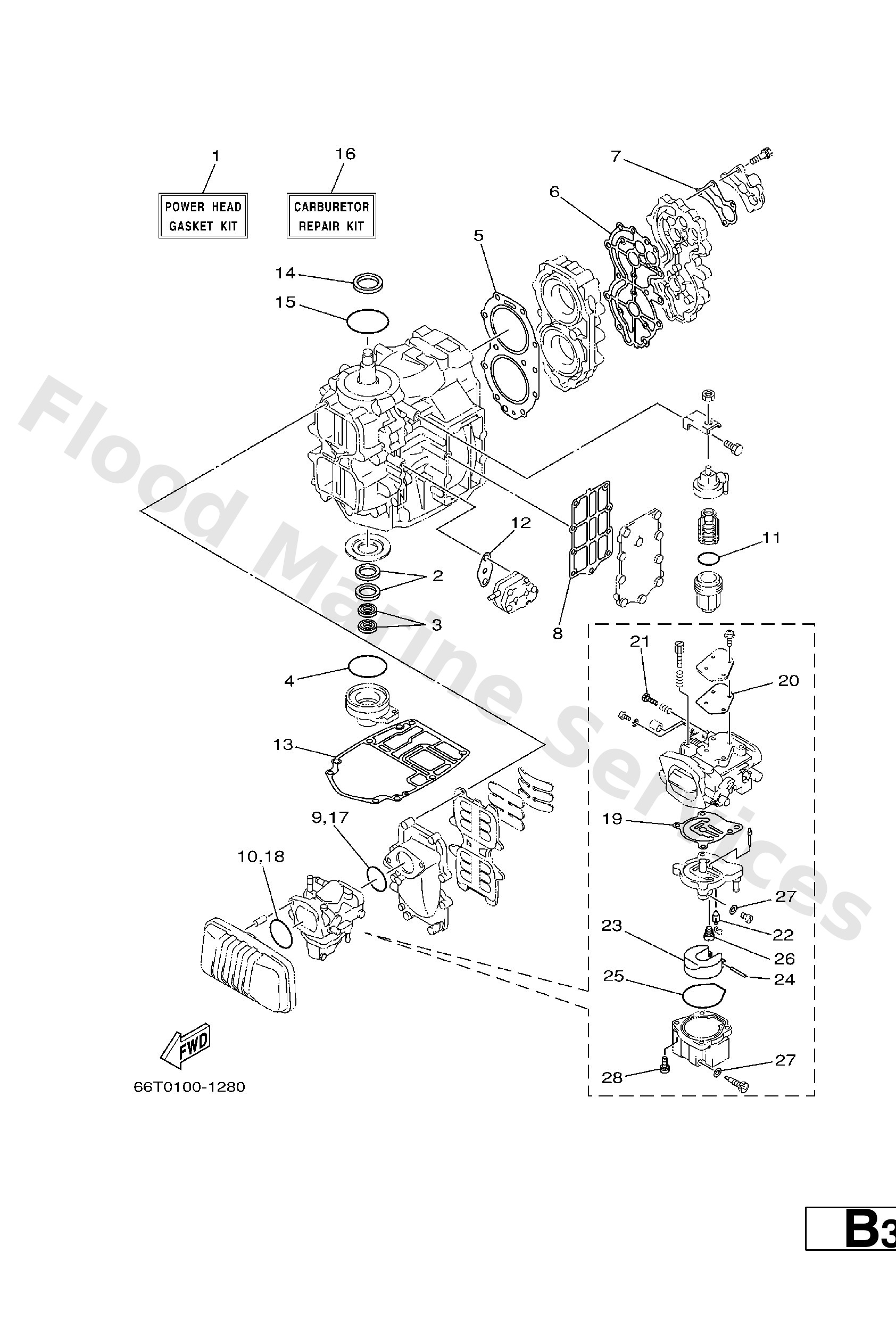

Diagram: REPAIR KIT 1

Diagram

Parts List

66T--W0001--01
Power head gasket kit
Diagram Reference: 1
Get Part
93102--30M56
Oil seal
Diagram Reference: 2
Get Part
93101--16001
Oil seal
Diagram Reference: 3
Get Part
93210--65M50
O-ring
Diagram Reference: 4
Get Part
66T11181A2
Gasket, cylinder head 1
Diagram Reference: 5
Get Part
66T11193A2
Gasket, head cover 1
Diagram Reference: 6
Get Part
67612414A0
Gasket, cover
Diagram Reference: 7
Get Part
66T--41114--A0
Gasket, exhaust outer cover
Diagram Reference: 8
Get Part
93210--46M16
O-ring (688)
Diagram Reference: 9
Get Part
93210--54M54
O-ring (6g1)
Diagram Reference: 10
Get Part
93210--32738
O-ring(1wg)
Diagram Reference: 11
Get Part
650--24431--A0
Gasket,fuel pump
Diagram Reference: 12
Get Part
66T--45113--A0
Gasket, upper casing
Diagram Reference: 13
Get Part
93102--35008
Oil seal
Diagram Reference: 14
Get Part
93210--75M51
O-ring (6f5)
Diagram Reference: 15
Get Part
66T--W0093--01
Carburetor repair kit
Diagram Reference: 16
Get Part
66T--14384--01
Gasket, float chamber
Diagram Reference: 19
Get Part
66T--14536--00
Gasket
Diagram Reference: 20
Get Part
6E5--14323--03
Screw, air adjusting
Diagram Reference: 21
Get Part
6E5--14546--00
Valve, needle
Diagram Reference: 22
Get Part
6E5--14385--02
Float
Diagram Reference: 23
Get Part
6E5--14386--02
Pin, float
Diagram Reference: 24
Get Part
66T--14984--00
Gasket, float chamber
Diagram Reference: 25
Get Part
66T--14992--00
Plug
Diagram Reference: 26
Get Part
66T--14959--00
Gasket
Diagram Reference: 27
Get Part
97980--05125
Screw, panhead (a93)
Diagram Reference: 28
Get Part
