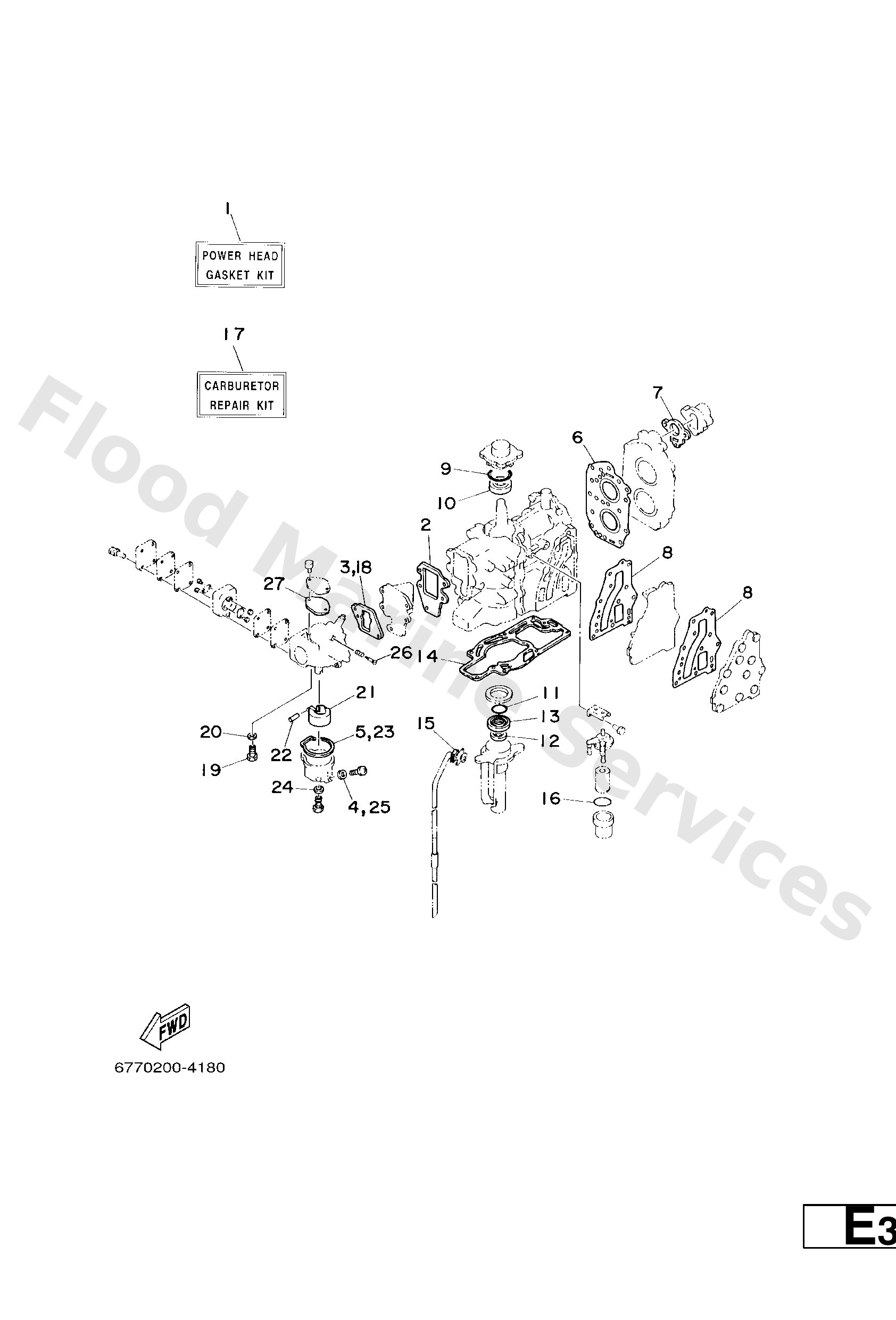

Diagram: REPAIR KIT 1

Diagram

Parts List

677−W0001−A2
Power head gasket kit
Diagram Reference: 1
Get Part
677−13621−A1
Gasket, valve seat
Diagram Reference: 2
Get Part
677−14198−A1
Gasket
Diagram Reference: 3
Get Part
655−14398−00
Gasket
Diagram Reference: 4
Get Part
677−14384−01
Gasket, float chamber
Diagram Reference: 5
Get Part
677−11181−A1
Gasket, cylinder head 1
Diagram Reference: 6
Get Part
677−12414−A1
Gasket, cover
Diagram Reference: 7
Get Part
677−41112−A1
Gasket, exhaust inner cover
Diagram Reference: 8
Get Part
93210−42159
O−Ring
Diagram Reference: 9
Get Part
93102−20M25
Oil seal (6e0)
Diagram Reference: 10
Get Part
93210−42M70
O-ring (677)
Diagram Reference: 11
Get Part
93101−14M01
Oil seal (677)
Diagram Reference: 12
Get Part
93101−20M29
2−
Diagram Reference: 13
Get Part
677−45113−A1
Gasket, upper casing
Diagram Reference: 14
Get Part
655−44365−00
Damper, water seal 1
Diagram Reference: 15
Get Part
93210−32738
O−Ring
Diagram Reference: 16
Get Part
677−W0093−06
Carburetor repair set
Diagram Reference: 17
Get Part
6E8−14390−12
Needle valve assembly
Diagram Reference: 19
Get Part
367−14195−00
Washer, valve seat
Diagram Reference: 20
Get Part
6E7−14385−00
Float
Diagram Reference: 21
Get Part
647−14386−10
Pin, float
Diagram Reference: 22
Get Part
1J2−14398−00
Packing
Diagram Reference: 24
Get Part
648−14323−00
Screw, air adjusting
Diagram Reference: 26
Get Part
677−14227−01
Gasket
Diagram Reference: 27
Get Part
