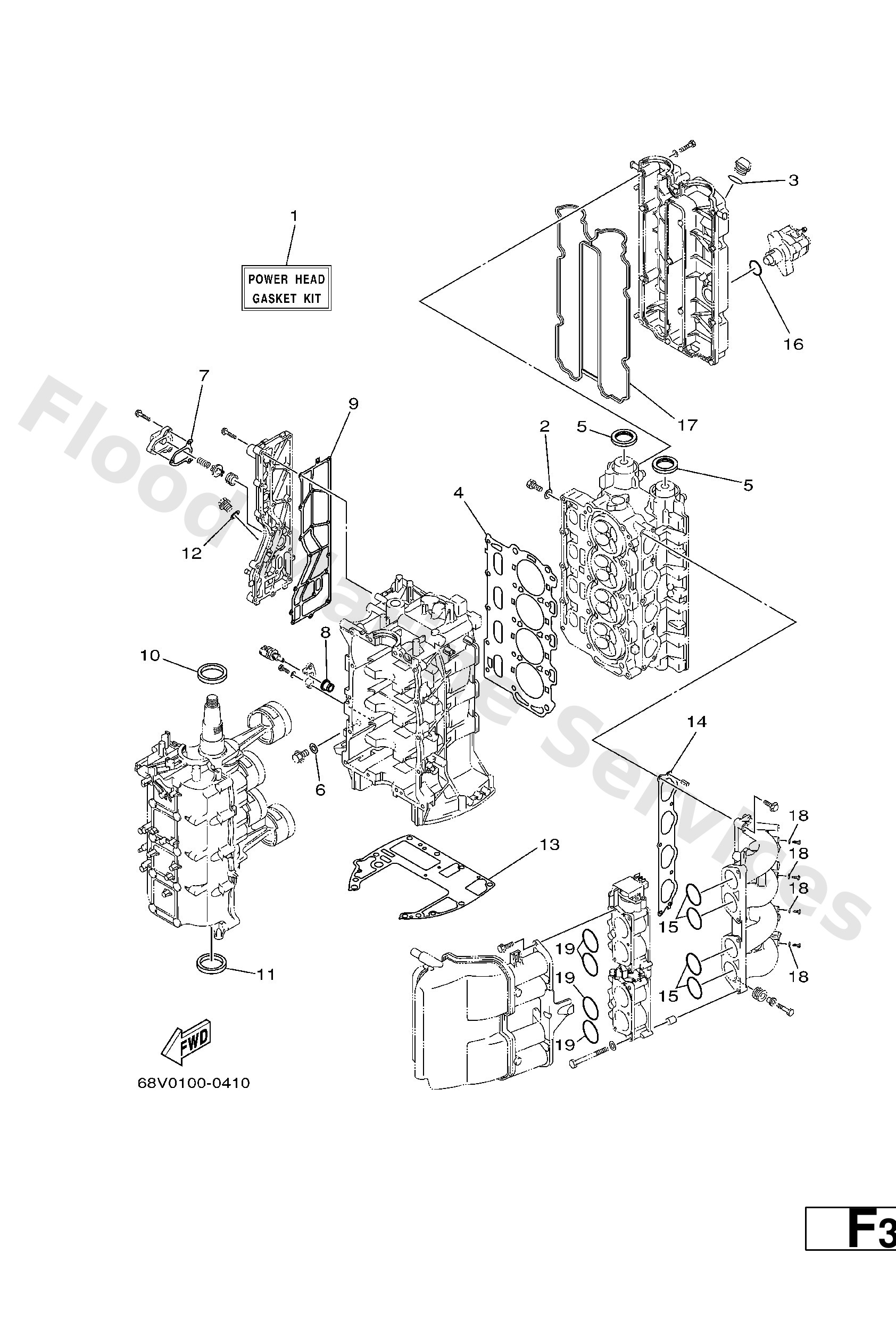

Diagram: REPAIR KIT 1

Diagram

Parts List

68V−W0001−01
Power head gasket kit
Diagram Reference: 1
Get Part
90430−08143
Gasket (256-11198-00)
Diagram Reference: 2
Get Part
93210−24M79
O-ring
Diagram Reference: 3
Get Part
67F−11181−01
Gasket, cylinder head 1
Diagram Reference: 4
Get Part
93102−38M59
Oil seal
Diagram Reference: 5
Get Part
90430−14115
Gasket (663)
Diagram Reference: 6
Get Part
67F−12435−A0
Gasket
Diagram Reference: 7
Get Part
68V−85753−00
Gasket, sender unit
Diagram Reference: 8
Get Part
67F−41114−A0
Gasket, exhaust outer cover
Diagram Reference: 9
Get Part
93102−48009
Oil seal
Diagram Reference: 10
Get Part
93101−48002
Oil seal
Diagram Reference: 11
Get Part
90430−18130
Gasket (1j7)
Diagram Reference: 12
Get Part
67F−11351−01
Gasket, cylinder
Diagram Reference: 13
Get Part
68V−13645−00
Gasket, manifold 1
Diagram Reference: 14
Get Part
93210−48MG8
O-ring
Diagram Reference: 15
Get Part
93210−30682
O-ring (371)
Diagram Reference: 16
Get Part
67F−11356−00
Seal, cylinder 2
Diagram Reference: 17
Get Part
90430−06014
Gasket 256113960000
Diagram Reference: 18
Get Part
93210−48MJ9
O-ring
Diagram Reference: 19
Get Part
