F13.5A (2007)
REPAIR KIT 1

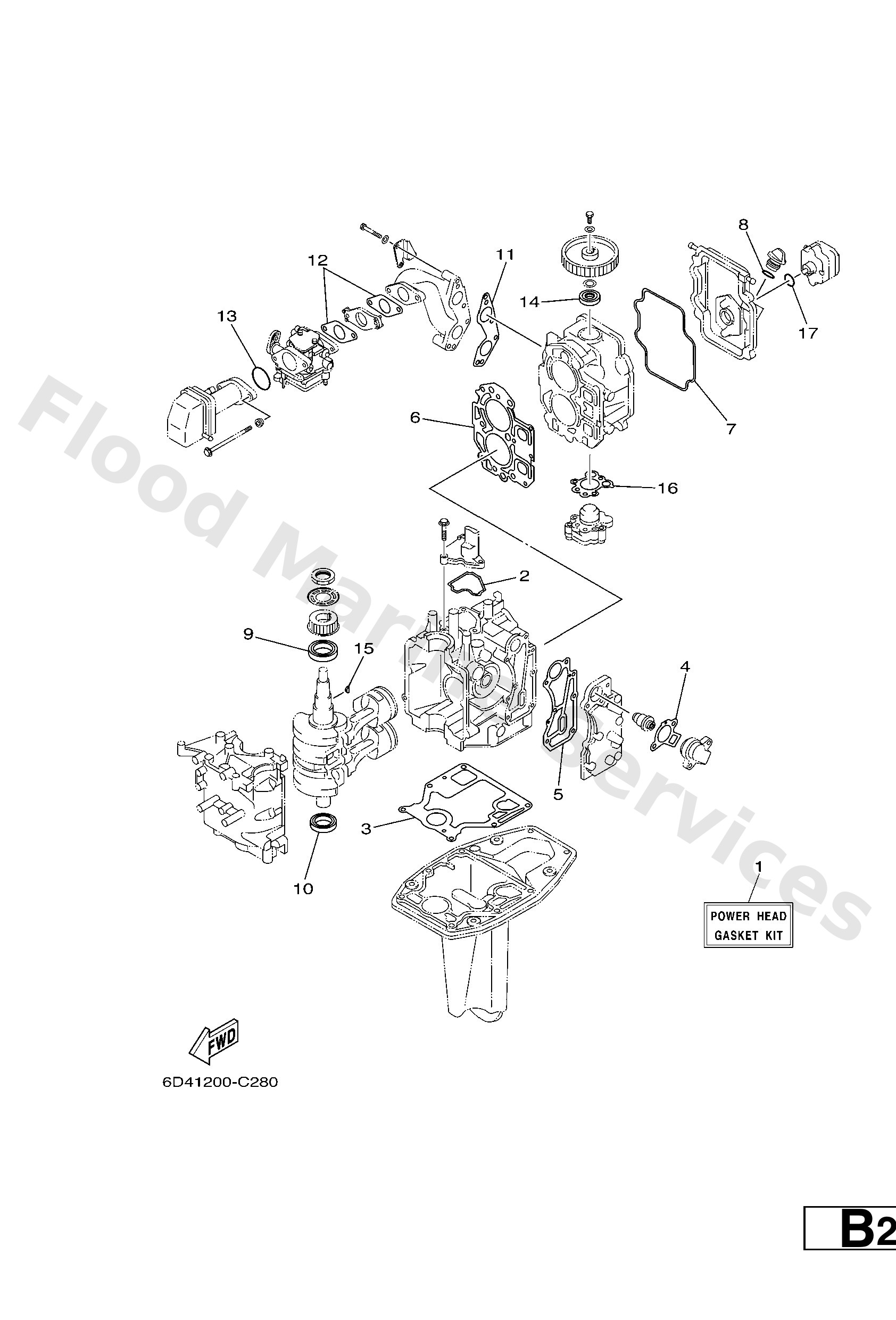

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
66MW000102
Power head gasket kit
Loading…
↗
2
66M1135700
Seal, cylinder 3
Loading…
↗
3
66M1135110
Gasket, cylinder
Loading…
↗
4
62Y1241400
Gasket, cover
Loading…
↗
5
66M4111401
Gasket, exhaust outer cover
Loading…
↗
6
66M1118110
Gasket, cylinder head 1
Loading…
↗
7
66M1135600
Seal, cylinder 2
Loading…
↗
8
9321024M79
O-ring
Loading…
↗
9
9310235M51
Oil seal
Loading…
↗
10
9310225M52
Oil seal
Loading…
↗
11
66M1364500
Gasket, manifold 1
Loading…
↗
12
66M1364600
Gasket, manifold 2
Loading…
↗
13
9321035M86
O-ring(6l2)
Loading…
↗
14
9310218M21
Oil seal (6g8)
Loading…
↗
15
9028003M01
Key woodruff 146115450000
Loading…
↗
16
66M1332910
Gasket, pump cover
Loading…
↗
17
9321020M65
O-ring
Loading…
↗
