Yamaha Outboard Parts - REPAIR KIT 1 - F2.5AMH (2003) | Flood Marine

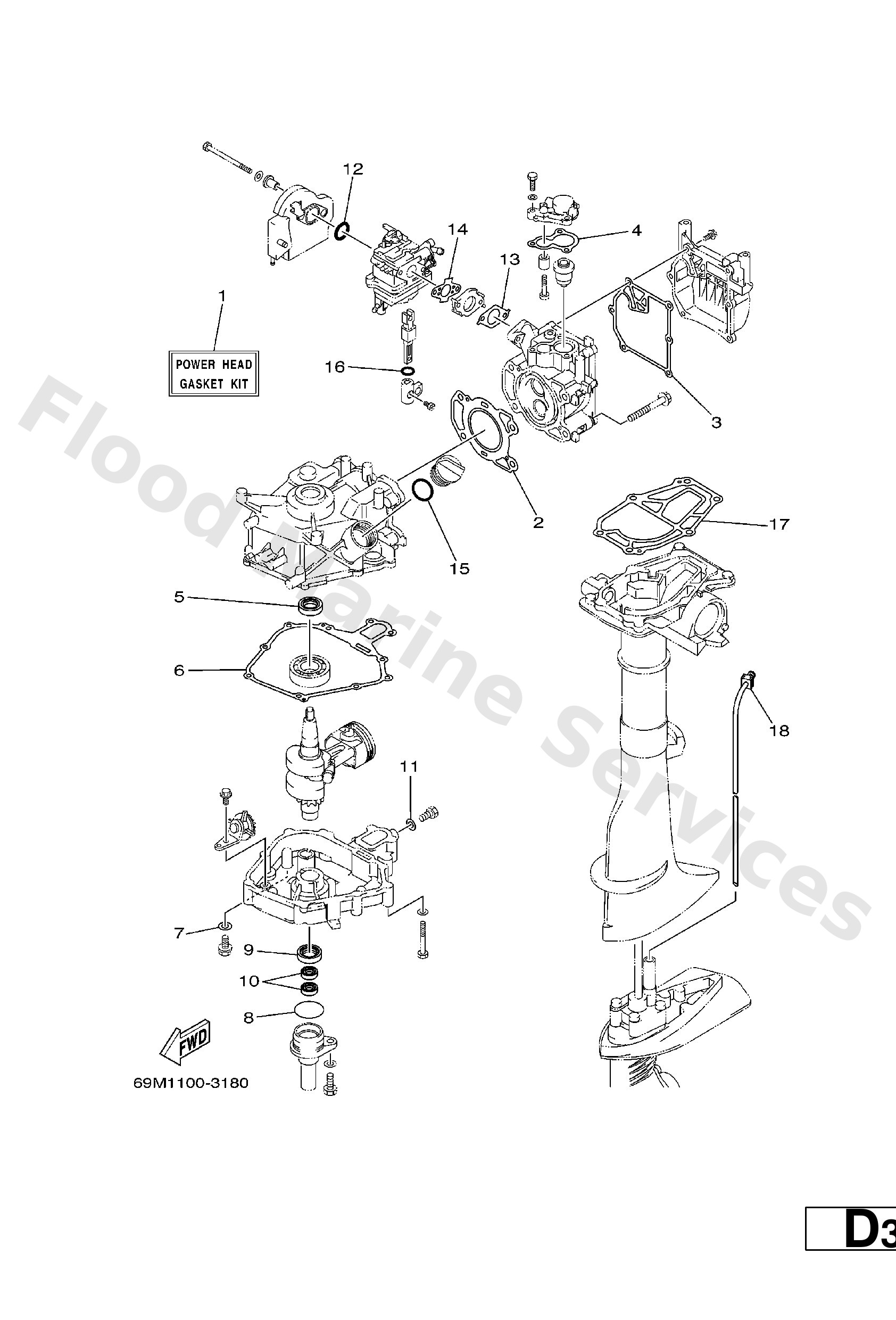

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
69M−WE001−00
Power head gasket kit
Loading…

↗
2
69M−11181−00
Gasket, cylinder head 1
Loading…

↗
3
69M−11193−A0
Gasket, head cover 1
Loading…

↗
4
68D−E2414−A0
Gasket, cover
Loading…

↗
5
93102−20108
Oil seal
Loading…

↗
6
69M−11351−A0
Gasket, cylinder
Loading…

↗
7
90201−08818
Washer
Loading…

↗
8
93210−35537
O-ring
Loading…

↗
10
93102−09004
Oil seal
Loading…

↗
11
93430−08800
Circlip
Loading…

↗
12
93210−20M65
O-ring
Loading…

↗
13
69M−E3645−A0
Gasket,manifold 1
Loading…

↗
14
69M−E3646−A0
Gasket, manifold 2
Loading…

↗
15
93210−24M79
O-ring
Loading…

↗
16
93210−13M43
O-ring (26h)
Loading…

↗
17
69M−45113−A0
Gasket, upper casing
Loading…

↗
18
68D−G4365−00
Damper, water seal
Loading…

↗
