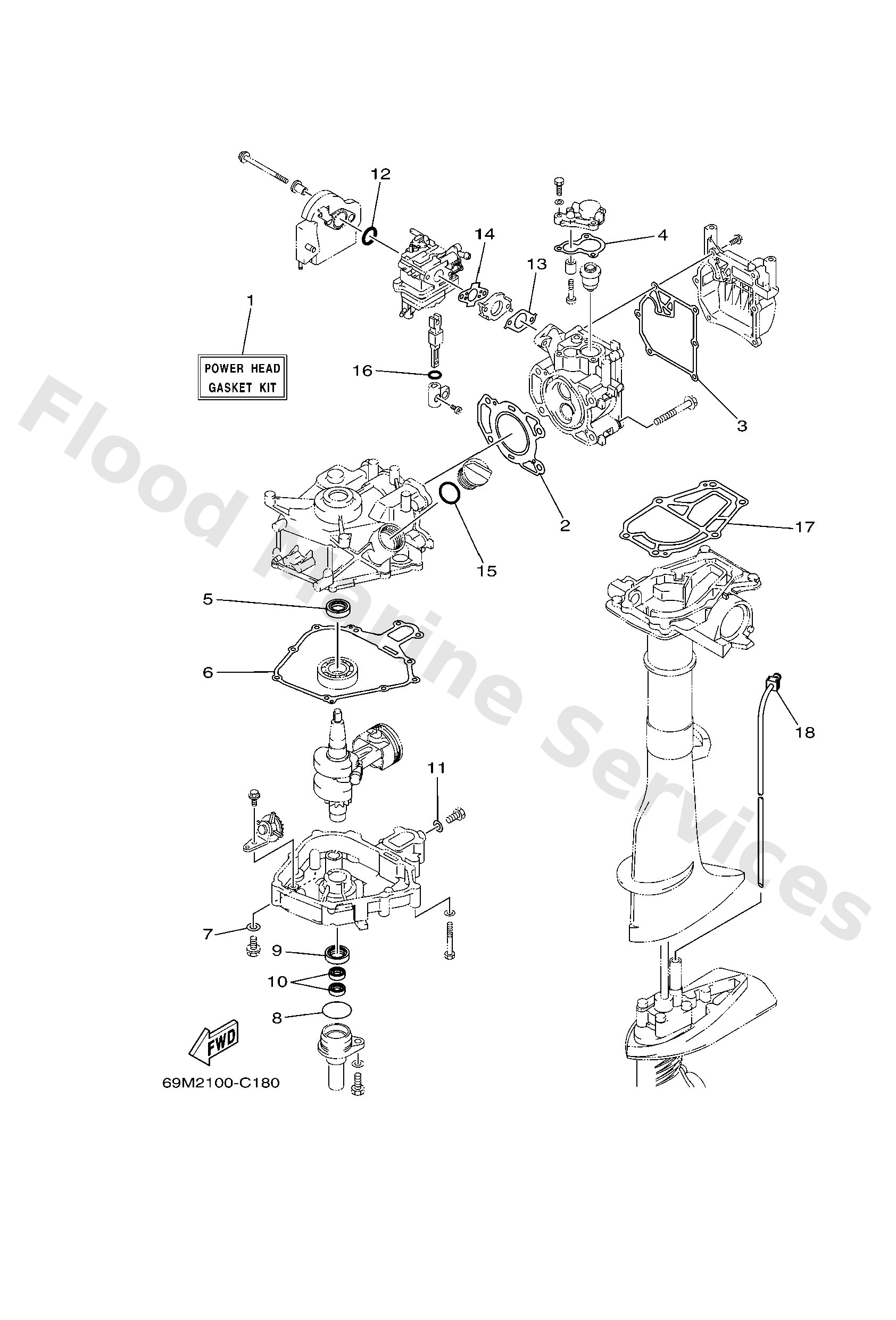

Diagram: REPAIR KIT 1
Parts List
Power head gasket kit
Diagram Reference: 1
Gasket, cylinder head 1
Diagram Reference: 2
Gasket, head cover 1
Diagram Reference: 3
Gasket, cover
Diagram Reference: 4
Oil seal
Diagram Reference: 5
Gasket, cylinder
Diagram Reference: 6
Washer
Diagram Reference: 7
O-ring
Diagram Reference: 8
Oil seal
Diagram Reference: 10
Gasket (256-11198-00)
Diagram Reference: 11
O-ring
Diagram Reference: 12
Gasket,manifold 1
Diagram Reference: 13
Gasket, manifold 2
Diagram Reference: 14
O-ring
Diagram Reference: 15
O-ring (26h)
Diagram Reference: 16
Gasket, upper casing
Diagram Reference: 17
Damper, water seal
Diagram Reference: 18
