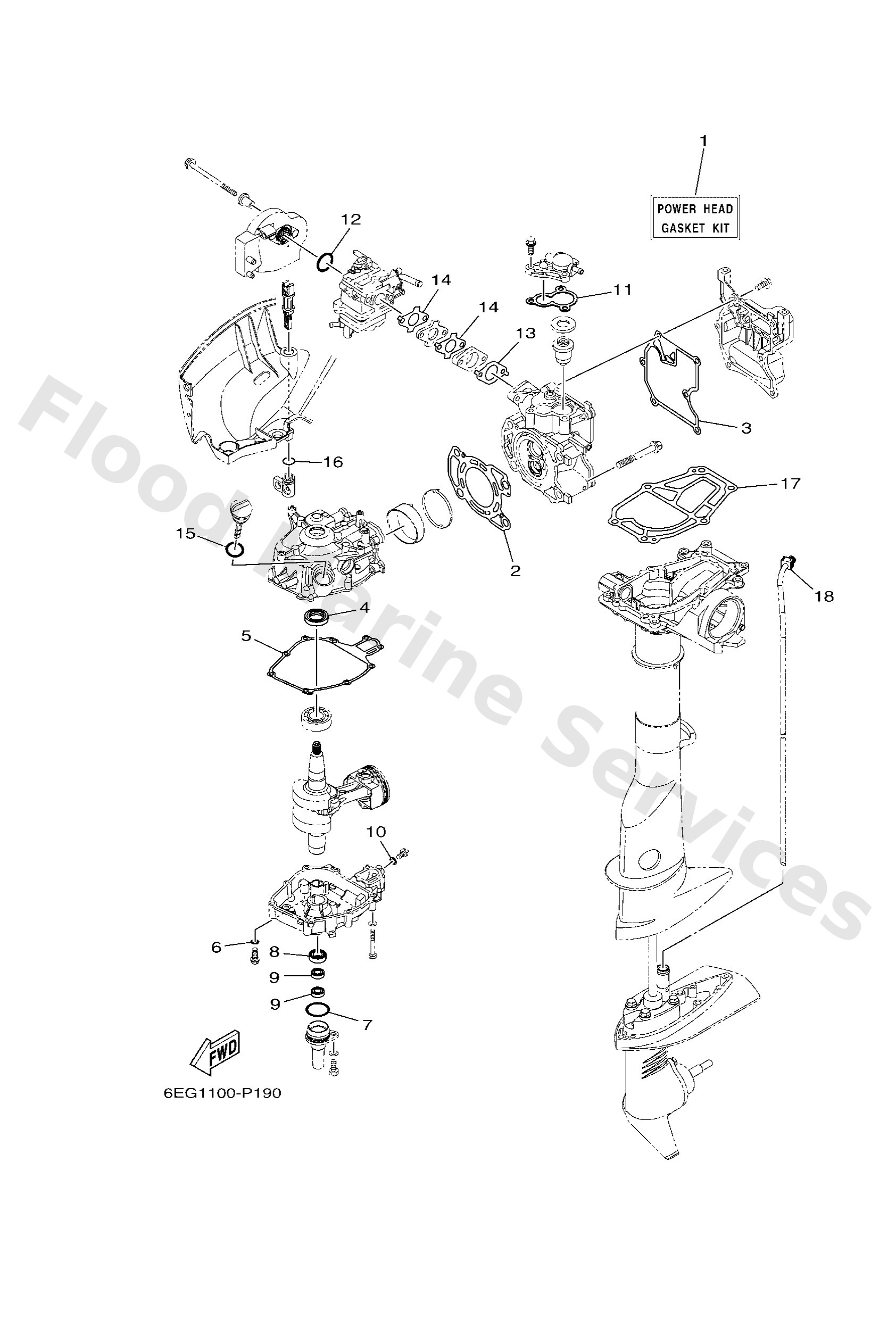

Diagram: REPAIR KIT 1
Parts List
Power head gasket kit
Diagram Reference: 1
Gasket, cylinder h
Diagram Reference: 2
Gasket, head cover
Diagram Reference: 3
Oil seal
Diagram Reference: 4
Gasket, cylinder
Diagram Reference: 5
Washer
Diagram Reference: 6
O-ring
Diagram Reference: 7
Oil seal
Diagram Reference: 9
Gasket (256-11198-00)
Diagram Reference: 10
Gasket, cover
Diagram Reference: 11
O-ring
Diagram Reference: 12
Gasket, manifold 1
Diagram Reference: 13
Gasket, manifold 2
Diagram Reference: 14
O-ring
Diagram Reference: 15
O-ring
Diagram Reference: 16
Gasket, upper casi
Diagram Reference: 17
Damper, water seal
Diagram Reference: 18
