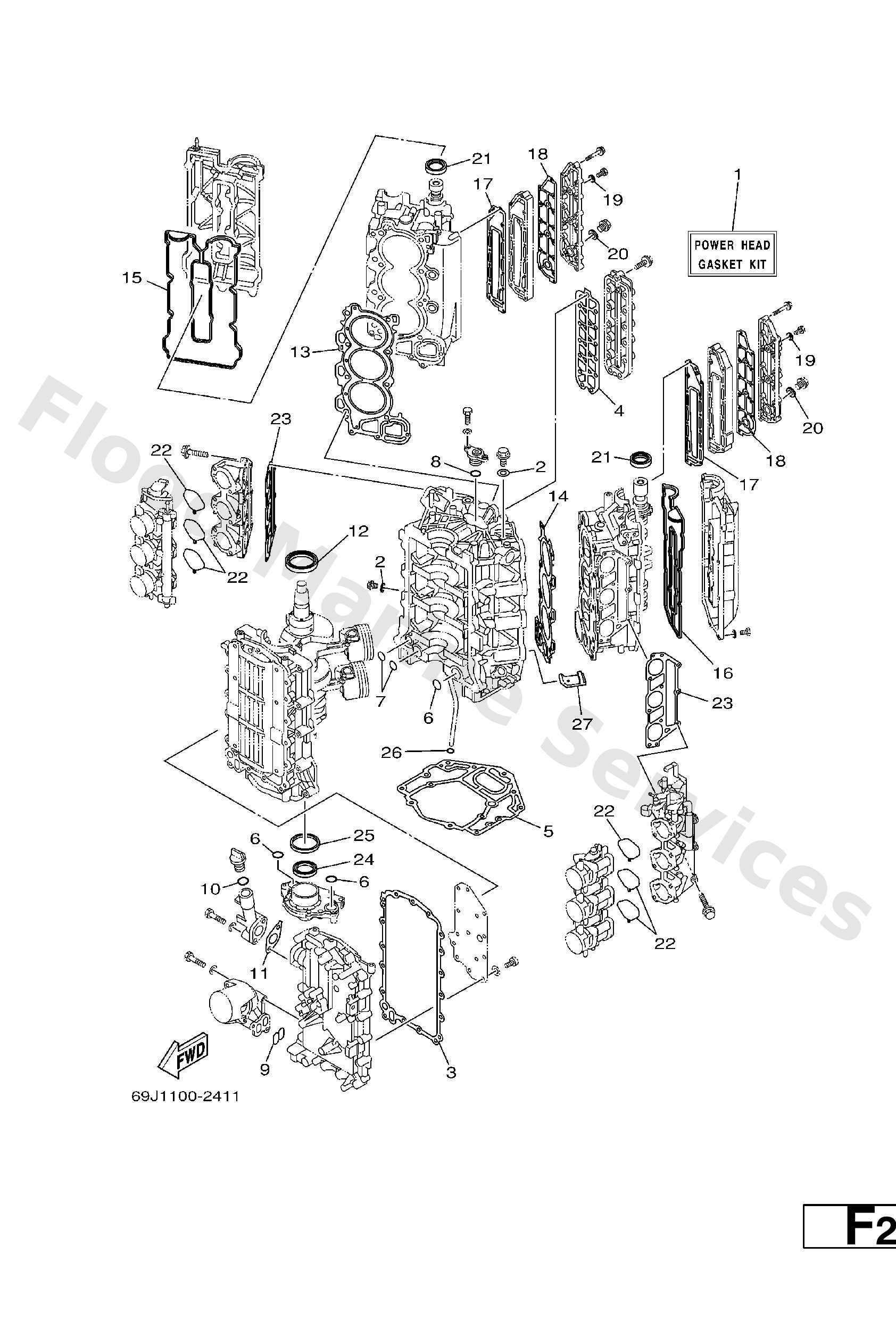

Parts List
Power head gasket kit
Diagram Reference: 1
Power head gasket kit
Diagram Reference: 1
Gasket (663)
Diagram Reference: 2
Gasket (663)
Diagram Reference: 2
Gasket, crankcase cover 1
Diagram Reference: 3
Gasket, crankcase cover 1
Diagram Reference: 3
Gasket, cover
Diagram Reference: 4
Gasket, cover
Diagram Reference: 4
Gasket, cylinder
Diagram Reference: 5
Gasket, cylinder
Diagram Reference: 5
O-ring (22f)
Diagram Reference: 6
O-ring (22f)
Diagram Reference: 6
O-ring
Diagram Reference: 7
O-ring
Diagram Reference: 7
O-ring (7or)
Diagram Reference: 8
O-ring (7or)
Diagram Reference: 8
Gasket
Diagram Reference: 9
Gasket
Diagram Reference: 9
O-ring
Diagram Reference: 10
O-ring
Diagram Reference: 10
Gasket, oil plug
Diagram Reference: 11
Gasket, oil plug
Diagram Reference: 11
Oil seal
Diagram Reference: 12
Oil seal
Diagram Reference: 12
Gasket, cylinder head 1
Diagram Reference: 13
Gasket, cylinder head 1
Diagram Reference: 13
Gasket, cylinder head 2
Diagram Reference: 14
Gasket, cylinder head 2
Diagram Reference: 14
Gasket, head cover 1
Diagram Reference: 15
Gasket, head cover 1
Diagram Reference: 15
Gasket, head cover 2
Diagram Reference: 16
Gasket, head cover 2
Diagram Reference: 16
Gasket, exhaust inner cover
Diagram Reference: 17
Gasket, exhaust inner cover
Diagram Reference: 17
Gasket, exhaust outer cover
Diagram Reference: 18
Gasket, exhaust outer cover
Diagram Reference: 18
Gasket (256-11198-00)
Diagram Reference: 19
Gasket (256-11198-00)
Diagram Reference: 19
Gasket (1j7)
Diagram Reference: 20
Gasket (1j7)
Diagram Reference: 20
Oil seal
Diagram Reference: 21
Oil seal
Diagram Reference: 21
Gasket
Diagram Reference: 22
Gasket
Diagram Reference: 22
Gasket, manifold 1
Diagram Reference: 23
Gasket, manifold 1
Diagram Reference: 23
Oil seal
Diagram Reference: 24
Oil seal
Diagram Reference: 24
Seal, cylinder 1
Diagram Reference: 25
Seal, cylinder 1
Diagram Reference: 25
O-ring
Diagram Reference: 26
O-ring
Diagram Reference: 26
Grommet, water shut
Diagram Reference: 27
Grommet, water shut
Diagram Reference: 27
