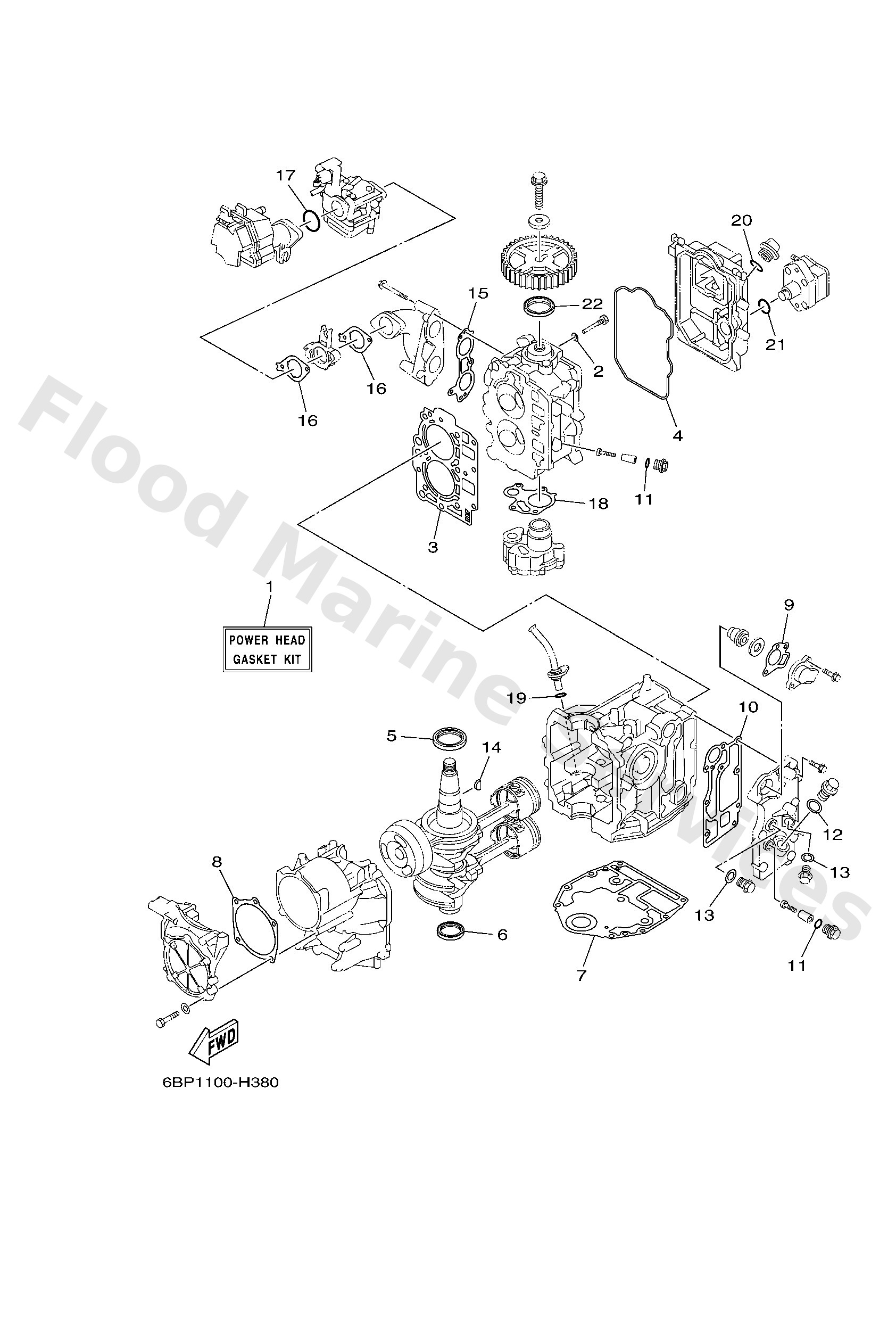

Diagram: REPAIR KIT 1

Diagram

Parts List

6BLW000100
Power head gasket kit
Diagram Reference: 1
Get Part
9043006014
Gasket 256113960000
Diagram Reference: 2
Get Part
6BL1118100
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
6BL1135600
Seal, cylinder 2
Diagram Reference: 4
Get Part
9310243M42
Oil seal(62y)
Diagram Reference: 5
Get Part
9310135002
Oil seal
Diagram Reference: 6
Get Part
6BG1135100
Gasket, cylinder
Diagram Reference: 7
Get Part
6BL1566300
Seal
Diagram Reference: 8
Get Part
62Y1241400
Gasket, cover
Diagram Reference: 9
Get Part
6BL4111400
Gasket, exhaust outer cover
Diagram Reference: 10
Get Part
9321013M63
O-ring (6g8)
Diagram Reference: 11
Get Part
9043018130
Gasket (1j7)
Diagram Reference: 12
Get Part
9043014115
Gasket (663)
Diagram Reference: 13
Get Part
9028003M01
Key woodruff 146115450000
Diagram Reference: 14
Get Part
6BL1364500
Gasket, manifold 1
Diagram Reference: 15
Get Part
6BL1364600
Gasket, manifold 2
Diagram Reference: 16
Get Part
9321039ME4
O-ring(6h2)
Diagram Reference: 17
Get Part
6C51332900
Gasket, pump cover
Diagram Reference: 18
Get Part
9321019MJ3
O-ring
Diagram Reference: 19
Get Part
9321024M79
O-ring
Diagram Reference: 20
Get Part
9310237M40
Oil seal(62y)
Diagram Reference: 22
Get Part
