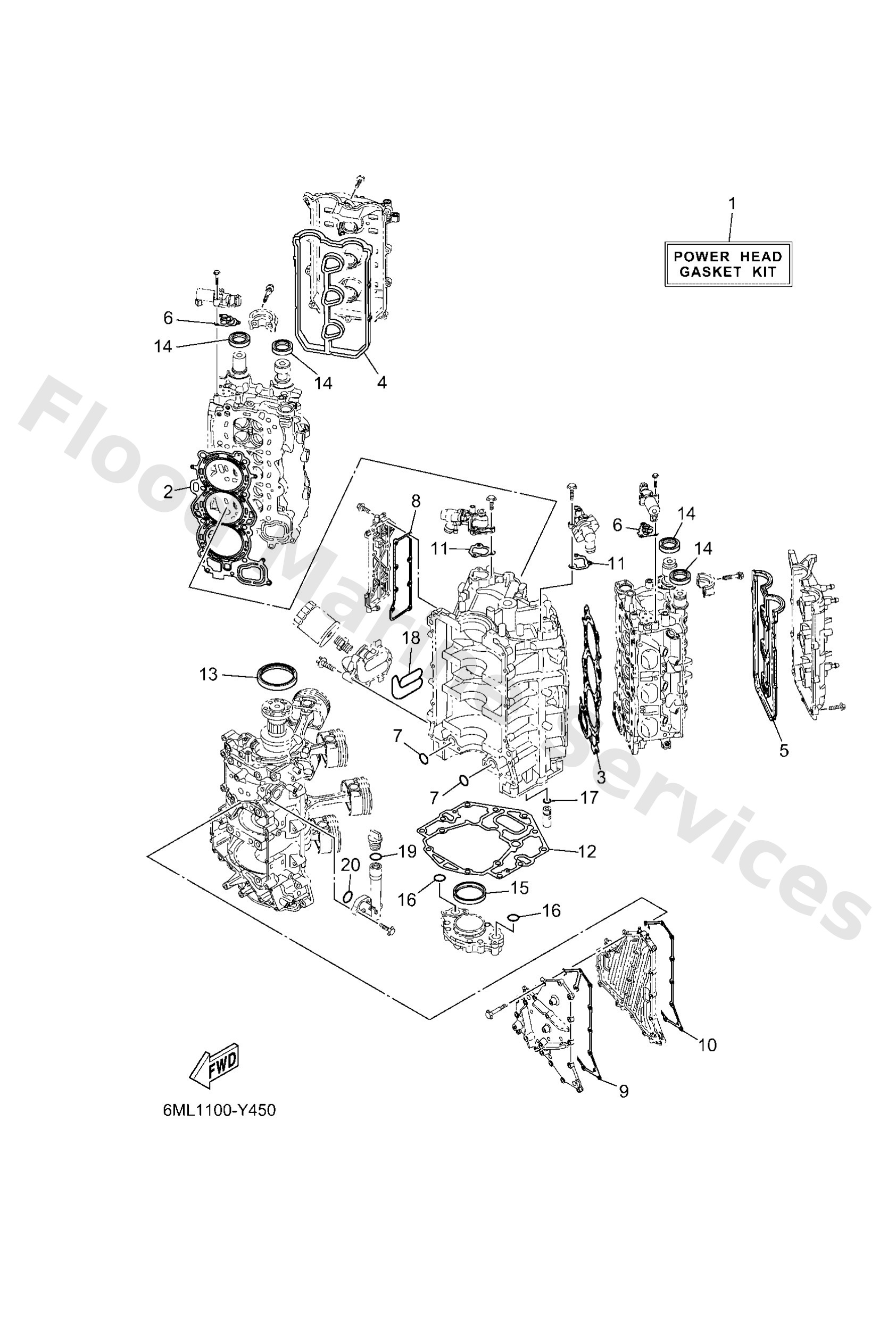

Diagram: REPAIR KIT 1

Diagram

Parts List

6MLW000100
Power head gasket kit
Diagram Reference: 1
Get Part
6ML1118100
Gasket, cylinder head 1
Diagram Reference: 2
Get Part
6ML1118200
Gasket, cylinder head 2
Diagram Reference: 3
Get Part
6CB1119300
Gasket, head cover 1
Diagram Reference: 4
Get Part
6CB1119400
Gasket, head cover 2
Diagram Reference: 5
Get Part
6CB1242F00
Gasket, filter
Diagram Reference: 6
Get Part
9321026658
O-ring(36y)
Diagram Reference: 7
Get Part
6ML1131B00
Gasket, cover
Diagram Reference: 8
Get Part
6ML1545100
Gasket, crankcase cover 1
Diagram Reference: 9
Get Part
6ML1546100
Gasket, crankcase cover 2
Diagram Reference: 10
Get Part
6CB1242711
Gasket, housing cover 1
Diagram Reference: 11
Get Part
6KA1135100
Gasket, cylinder
Diagram Reference: 12
Get Part
9310285008
Oil seal
Diagram Reference: 13
Get Part
9310238008
Oil seal
Diagram Reference: 14
Get Part
6CB1135500
Seal, cylinder 1
Diagram Reference: 15
Get Part
6CB1347300
O-ring
Diagram Reference: 17
Get Part
6CB1347700
Gasket
Diagram Reference: 18
Get Part
9321024M79
O-ring
Diagram Reference: 19
Get Part
9321027370
O-ring(1kt)
Diagram Reference: 20
