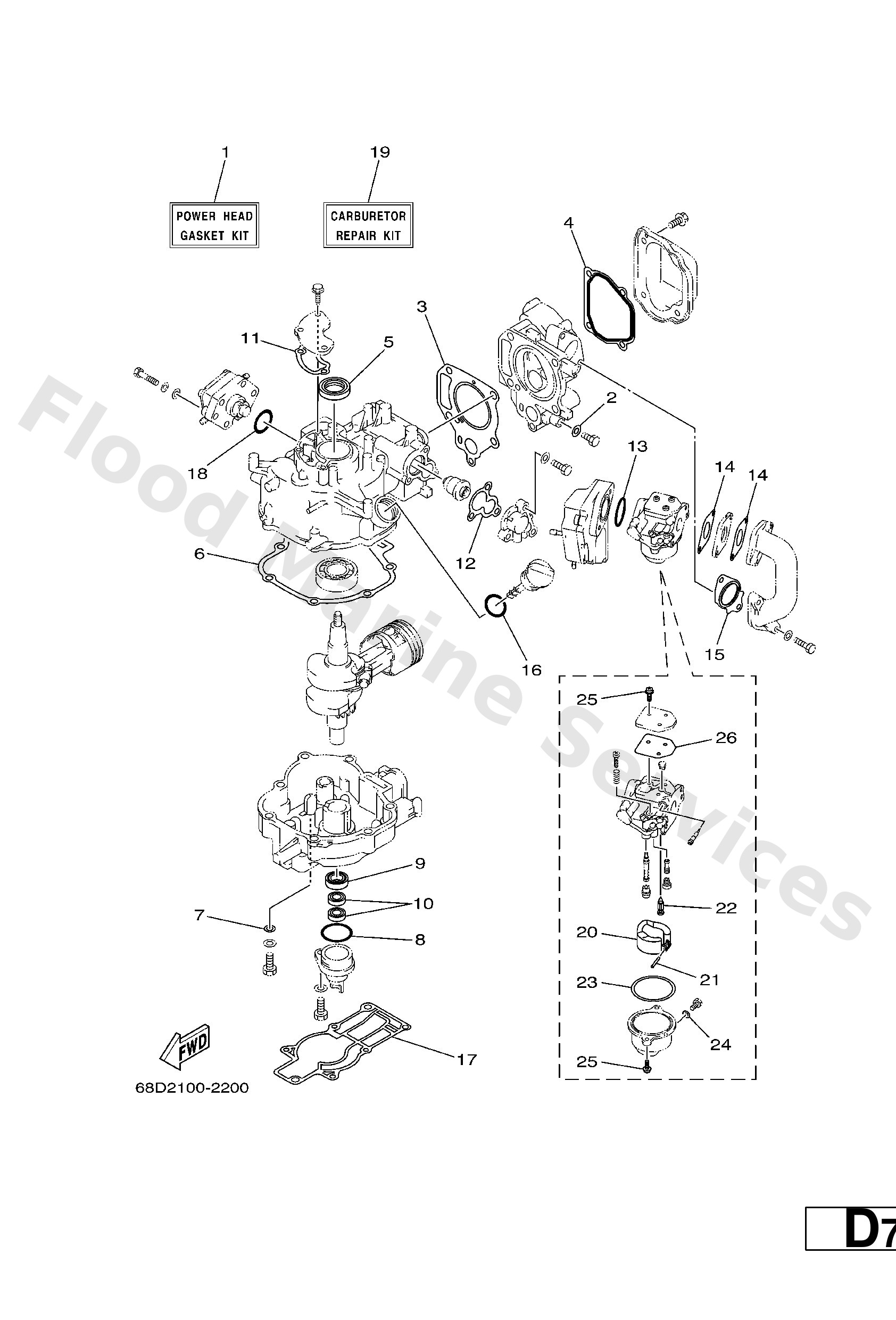

Diagram: REPAIR KIT 1
Parts List
Power head gasket kit
Diagram Reference: 1
Gasket (256-11198-00)
Diagram Reference: 2
Gasket, cylinder head 1
Diagram Reference: 3
Gasket head cover
Diagram Reference: 4
Oil seal (25x40x5-256)
Diagram Reference: 5
Gasket, cylinder
Diagram Reference: 6
Gasket(3gh)
Diagram Reference: 7
O-ring
Diagram Reference: 8
Oil seal
Diagram Reference: 9
Oil seal
Diagram Reference: 10
Gasket, Breather Cover
Diagram Reference: 11
Gasket, cover
Diagram Reference: 12
O-ring
Diagram Reference: 13
Gasket, Manifold 2
Diagram Reference: 14
Gasket, Manifold 1
Diagram Reference: 15
O-ring
Diagram Reference: 16
Gasket, upper casing
Diagram Reference: 17
O-ring
Diagram Reference: 18
Carburetor repair kit
Diagram Reference: 19
Float
Diagram Reference: 20
Pin, float
Diagram Reference: 21
Valve, needle
Diagram Reference: 22
Gasket, float chamber
Diagram Reference: 23
Gasket, drin screw
Diagram Reference: 24
Screw, pan head (686)
Diagram Reference: 25
Gasket
Diagram Reference: 26
