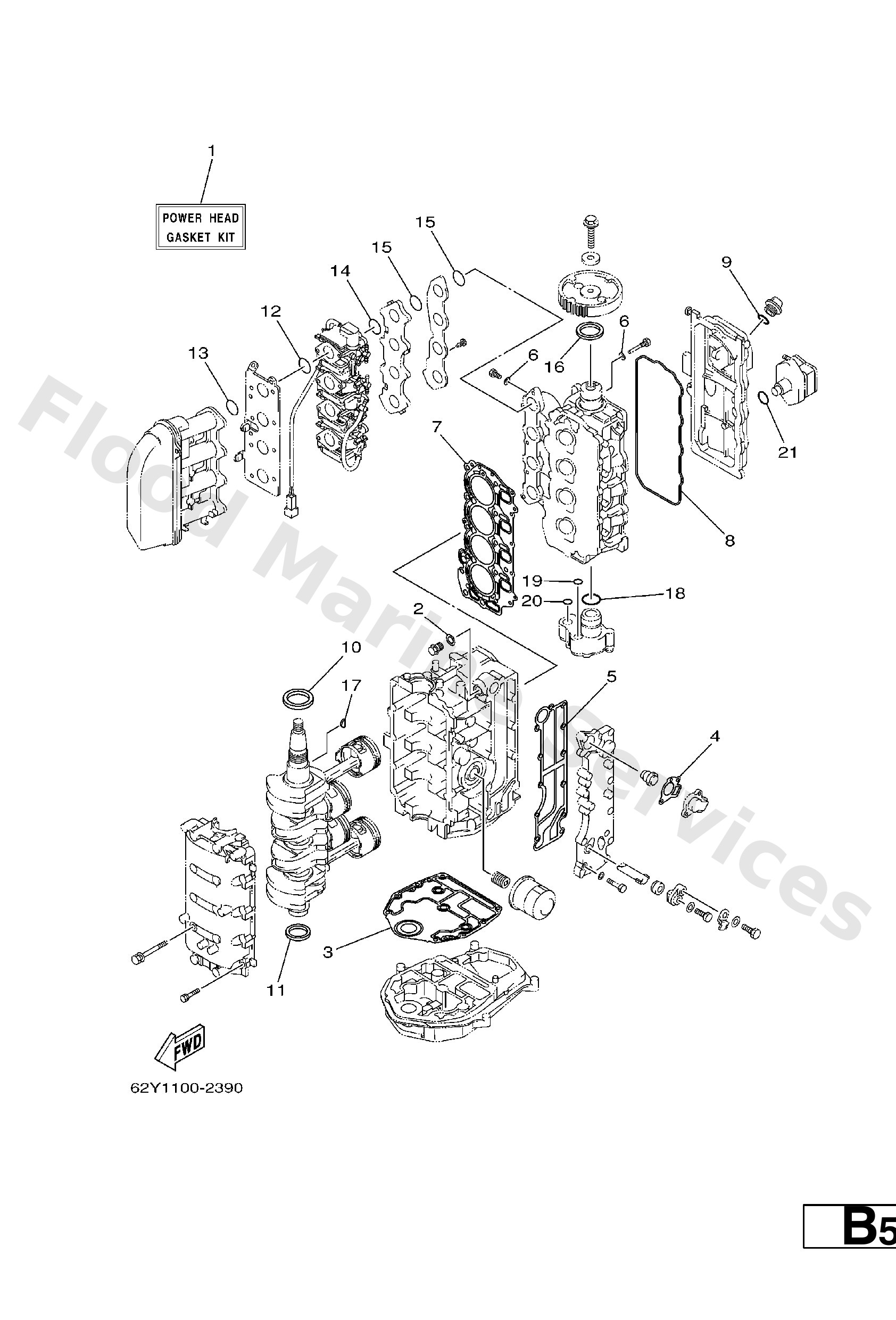

Diagram: REPAIR KIT 1

Diagram

Parts List

62Y−W0001−10
Power head gasket kit
Diagram Reference: 1
Get Part
90430−14115
Gasket (663)
Diagram Reference: 2
Get Part
67C−11351−00
Gasket, cylinder
Diagram Reference: 3
Get Part
62Y−12414−00
Gasket, cover
Diagram Reference: 4
Get Part
62Y−41114−00
Gasket, exhaust outer cover
Diagram Reference: 5
Get Part
90430−06014
Gasket 256113960000
Diagram Reference: 6
Get Part
62Y−11181−00
Gasket, cylinder head 1
Diagram Reference: 7
Get Part
62Y−11356−00
Seal, cylinder 2
Diagram Reference: 8
Get Part
93210−24M79
O-ring
Diagram Reference: 9
Get Part
93102−43M42
Oil seal(62y)
Diagram Reference: 10
Get Part
93101−35002
Oil seal
Diagram Reference: 11
Get Part
93210−35M86
O-ring(6l2)
Diagram Reference: 12
Get Part
93210−38MH3
O-ring(62y)
Diagram Reference: 13
Get Part
93210−30MH4
O-ring(62y)
Diagram Reference: 14
Get Part
93102−37M40
Oil seal(62y)
Diagram Reference: 16
Get Part
90280−04M06
Key, woodruff(6a1)
Diagram Reference: 17
Get Part
93210−33MH2
O-ring(62y)
Diagram Reference: 18
Get Part
93210−12MG9
O-ring(62y)
Diagram Reference: 19
Get Part
93210−14515
O-ring (11h)
Diagram Reference: 20
Get Part
