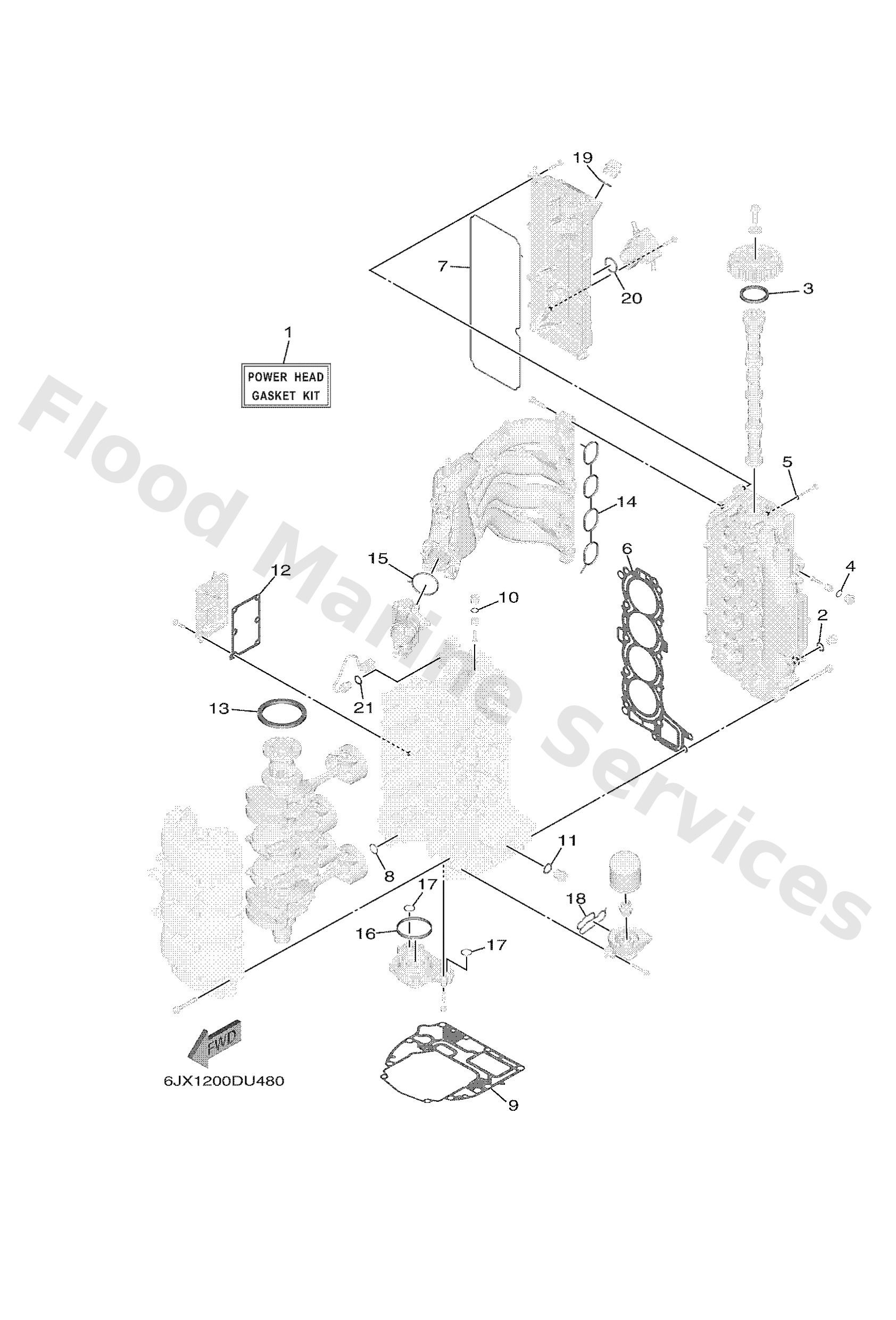

Diagram: REPAIR KIT 1
Parts List
Power head gasket kit
Diagram Reference: 1
Gasket (663)
Diagram Reference: 2
Oil seal
Diagram Reference: 3
O-ring (6g8)
Diagram Reference: 4
Gasket 256113960000
Diagram Reference: 5
Gasket, cylinder head 1
Diagram Reference: 6
Gasket, head cover 1
Diagram Reference: 7
O-ring
Diagram Reference: 8
Gasket, cylinder
Diagram Reference: 9
Washer, plate (22f)
Diagram Reference: 11
Gasket, drain
Diagram Reference: 12
Oil seal
Diagram Reference: 13
Gasket, manifold 1
Diagram Reference: 14
Gasket, manifold 2
Diagram Reference: 15
Seal, cylinder 1
Diagram Reference: 16
Gasket
Diagram Reference: 18
O-ring
Diagram Reference: 19
O-ring (371)
Diagram Reference: 20
