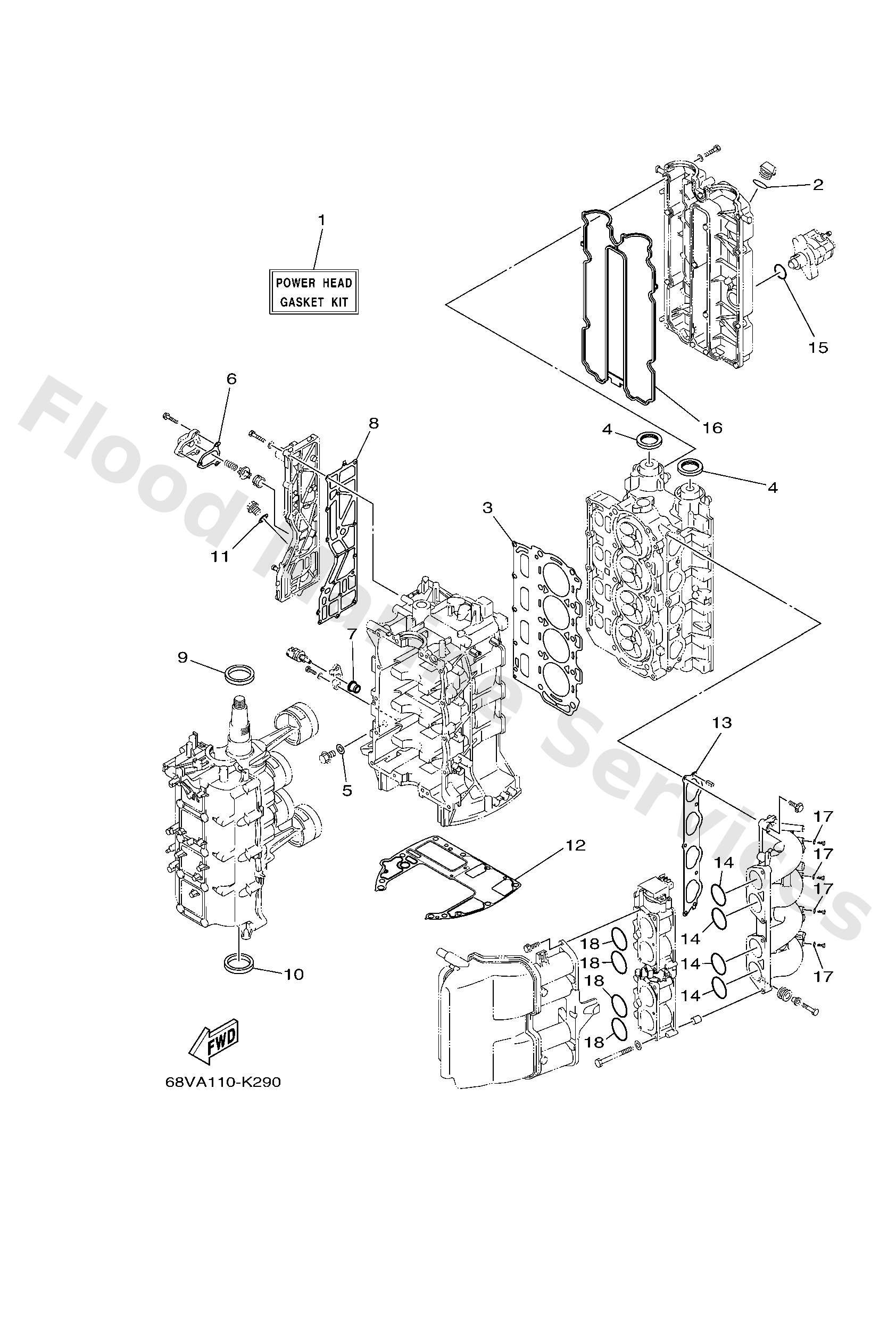

Diagram: REPAIR KIT 1

Diagram

Parts List

68VW000105
Power head gasket kit
Diagram Reference: 1
Get Part
9321024M79
O-ring
Diagram Reference: 2
Get Part
67F1118103
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
9310238008
Oil seal
Diagram Reference: 4
Get Part
9043014115
Gasket (663)
Diagram Reference: 5
Get Part
67F12435A0
Gasket
Diagram Reference: 6
Get Part
68V8575300
Gasket, sender unit
Diagram Reference: 7
Get Part
67F41114A2
Gasket, exhaust outer cover
Diagram Reference: 8
Get Part
9310248009
Oil seal
Diagram Reference: 9
Get Part
9310148002
Oil seal
Diagram Reference: 10
Get Part
9043018130
Gasket (1j7)
Diagram Reference: 11
Get Part
68V1135100
Gasket, cylinder
Diagram Reference: 12
Get Part
68V1364500
Gasket, manifold 1
Diagram Reference: 13
Get Part
9321048MG8
O-ring
Diagram Reference: 14
Get Part
9321030682
O-ring (371)
Diagram Reference: 15
Get Part
6D81135601
Seal, cylinder 2
Diagram Reference: 16
Get Part
9043006014
Gasket 256113960000
Diagram Reference: 17
Get Part
9321048MJ9
O-ring
Diagram Reference: 18
Get Part
