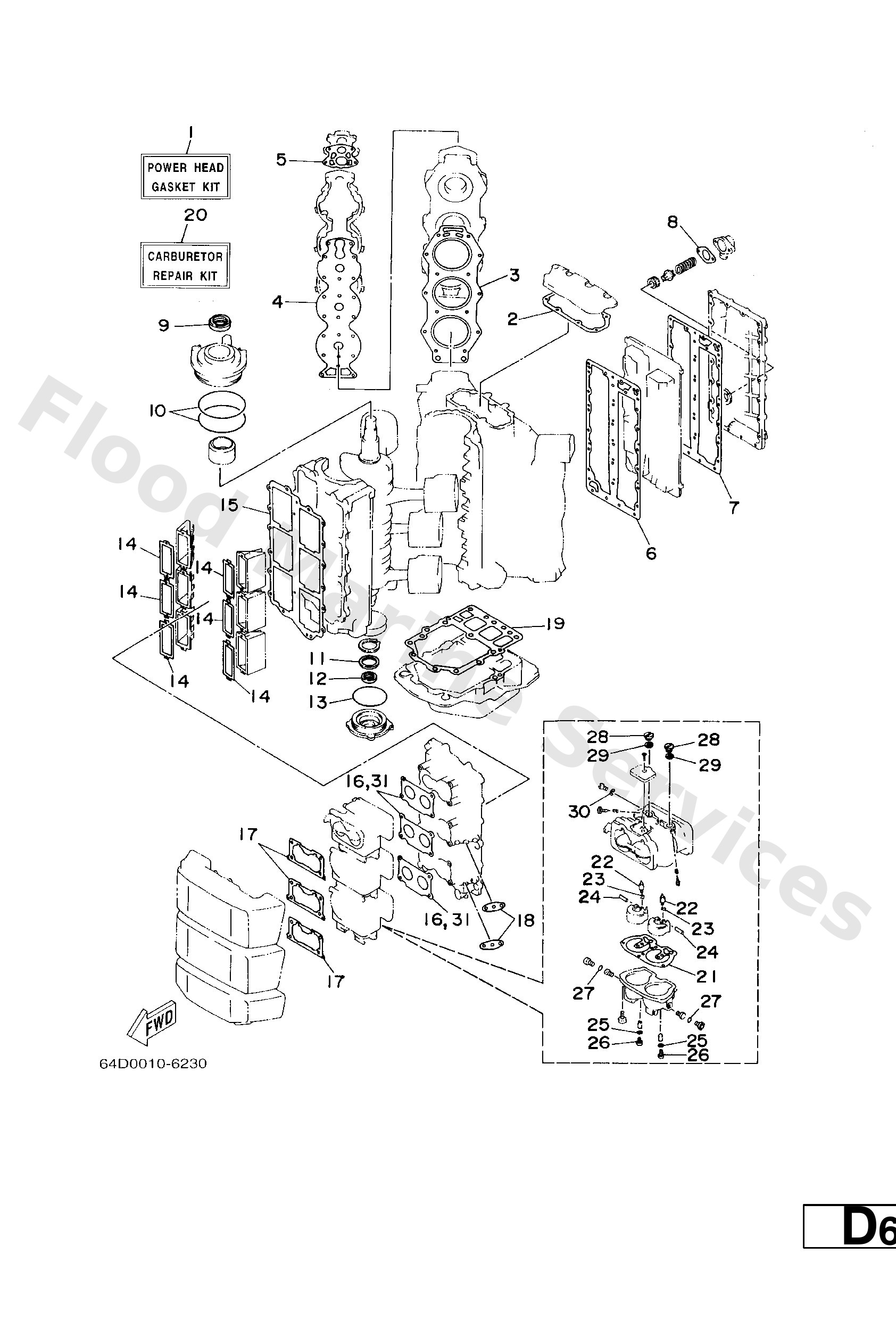

Diagram: REPAIR KIT 1

Diagram

Parts List

64D−W0001−00
Power head gasket kit
Diagram Reference: 1
Get Part
6E5−11381−A2
Gasket 1
Diagram Reference: 2
Get Part
6G5−11181−A2
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
6G5−11193−A0
Gasket, head cover 1
Diagram Reference: 4
Get Part
688−12414−A1
Gasket, cover
Diagram Reference: 5
Get Part
6G5−41112−A1
Gasket, exhaust inner cover
Diagram Reference: 6
Get Part
6G5−41114−A0
Gasket, exhaust inner cover
Diagram Reference: 7
Get Part
6G5−11382−A1
Gasket 2
Diagram Reference: 8
Get Part
93102−40M14
Oil seal(61a)
Diagram Reference: 9
Get Part
93211−04001
O-ring
Diagram Reference: 10
Get Part
93102−35M13
Oil seal (6e5)
Diagram Reference: 11
Get Part
93101−22M15
Oil seal (6e5)
Diagram Reference: 12
Get Part
93210−74M35
O-ring (6e5)
Diagram Reference: 13
Get Part
6E5−13621−A1
Gasket, valve seat
Diagram Reference: 14
Get Part
6G5−13645−A2
Gasket, manifold 1
Diagram Reference: 15
Get Part
6E5−14198−A2
Gasket
Diagram Reference: 16
Get Part
6K7−14483−00
Gasket
Diagram Reference: 17
Get Part
650−24431−A0
Gasket,fuel pump
Diagram Reference: 18
Get Part
6G5−45113−A1
Gasket, upper casing
Diagram Reference: 19
Get Part
64D−W0093−01
Carburetor repair kit
Diagram Reference: 20
Get Part
64D−14384−01
Gasket, float chamber
Diagram Reference: 21
Get Part
6E5−14546−00
Valve, needle
Diagram Reference: 22
Get Part
6E5−14159−00
Clip
Diagram Reference: 23
Get Part
6E5−14386−02
Pin, float
Diagram Reference: 24
Get Part
61U−14959−00
Gasket
Diagram Reference: 25
Get Part
64D−14394−00
Valve, drain
Diagram Reference: 26
Get Part
6E5−14398−01
Gasket
Diagram Reference: 27
Get Part
6E5−14328−01
Plug
Diagram Reference: 28
Get Part
6E5−14979−00
Gasket
Diagram Reference: 29
Get Part
6J8−14959−00
Gasket, drin screw
Diagram Reference: 30
Get Part
