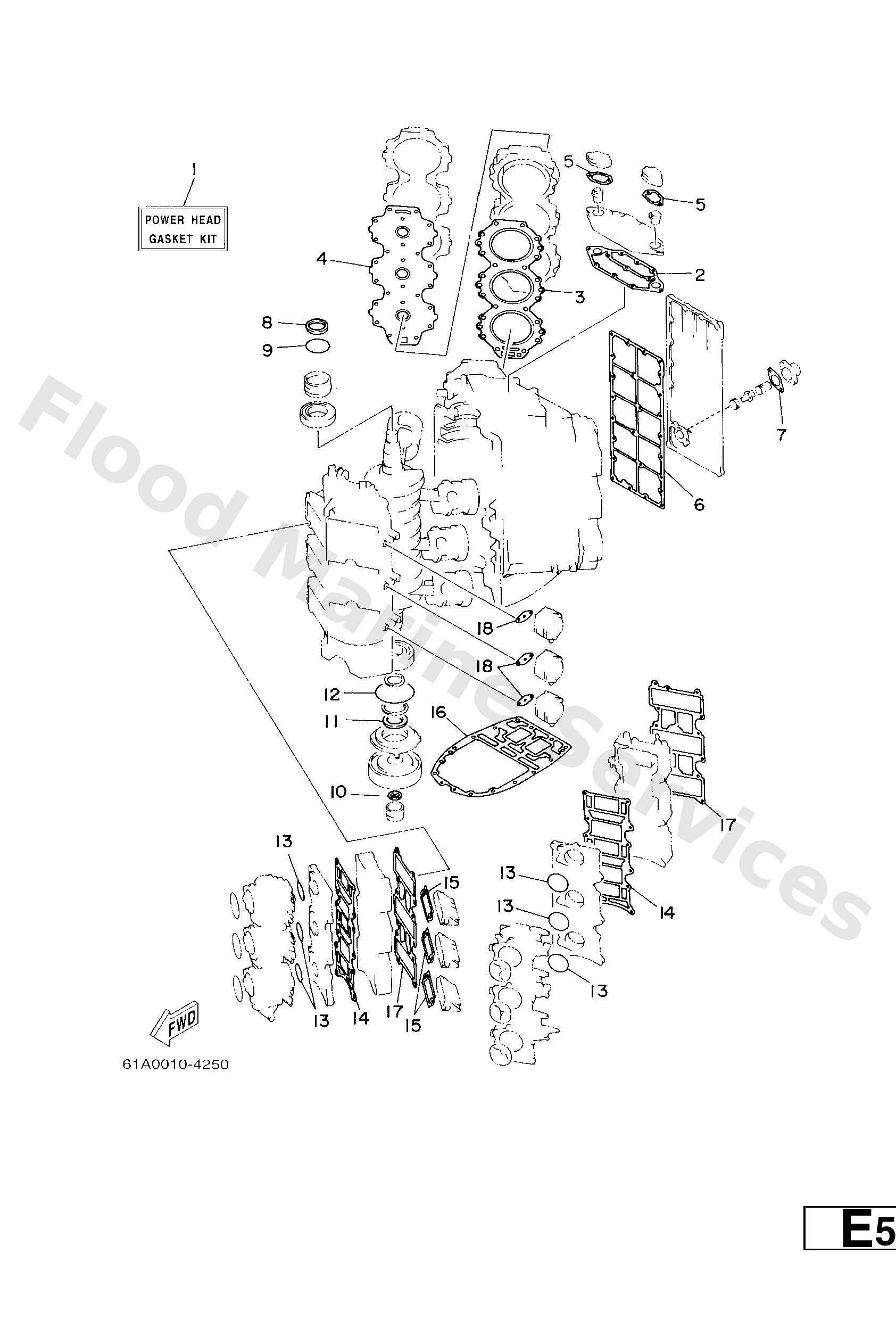

Diagram: REPAIR KIT 1

Diagram

Parts List

61AW0001A3
Power Head Gasket Kit
Diagram Reference: 1
Get Part
61A11381A0
Gasket 1
Diagram Reference: 2
Get Part
69L1118100
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
61A11193A1
Gasket, head cover 1
Diagram Reference: 4
Get Part
61A12414A0
Gasket, cover
Diagram Reference: 5
Get Part
61A41112A1
Gasket, exhaust inner cover
Diagram Reference: 6
Get Part
6G511382A1
Gasket 2
Diagram Reference: 7
Get Part
9310240M38
Oil seal(61a)
Diagram Reference: 8
Get Part
9321054M54
O-ring (6g1)
Diagram Reference: 9
Get Part
9310422M07
Oil seal(61a)
Diagram Reference: 10
Get Part
9310240M36
Oil seal
Diagram Reference: 11
Get Part
9321081MA6
O-ring(61a)
Diagram Reference: 12
Get Part
9321050MA8
O-ring(61a)
Diagram Reference: 13
Get Part
61A1364500
Gasket, Manifold 1
Diagram Reference: 14
Get Part
61A13621A0
Gasket, valve seat
Diagram Reference: 15
Get Part
61A45113A0
Gasket, upper casing
Diagram Reference: 16
Get Part
61A1364600
Gasket, manifold 2
Diagram Reference: 17
Get Part
65024431A0
Gasket,fuel pump
Diagram Reference: 18
