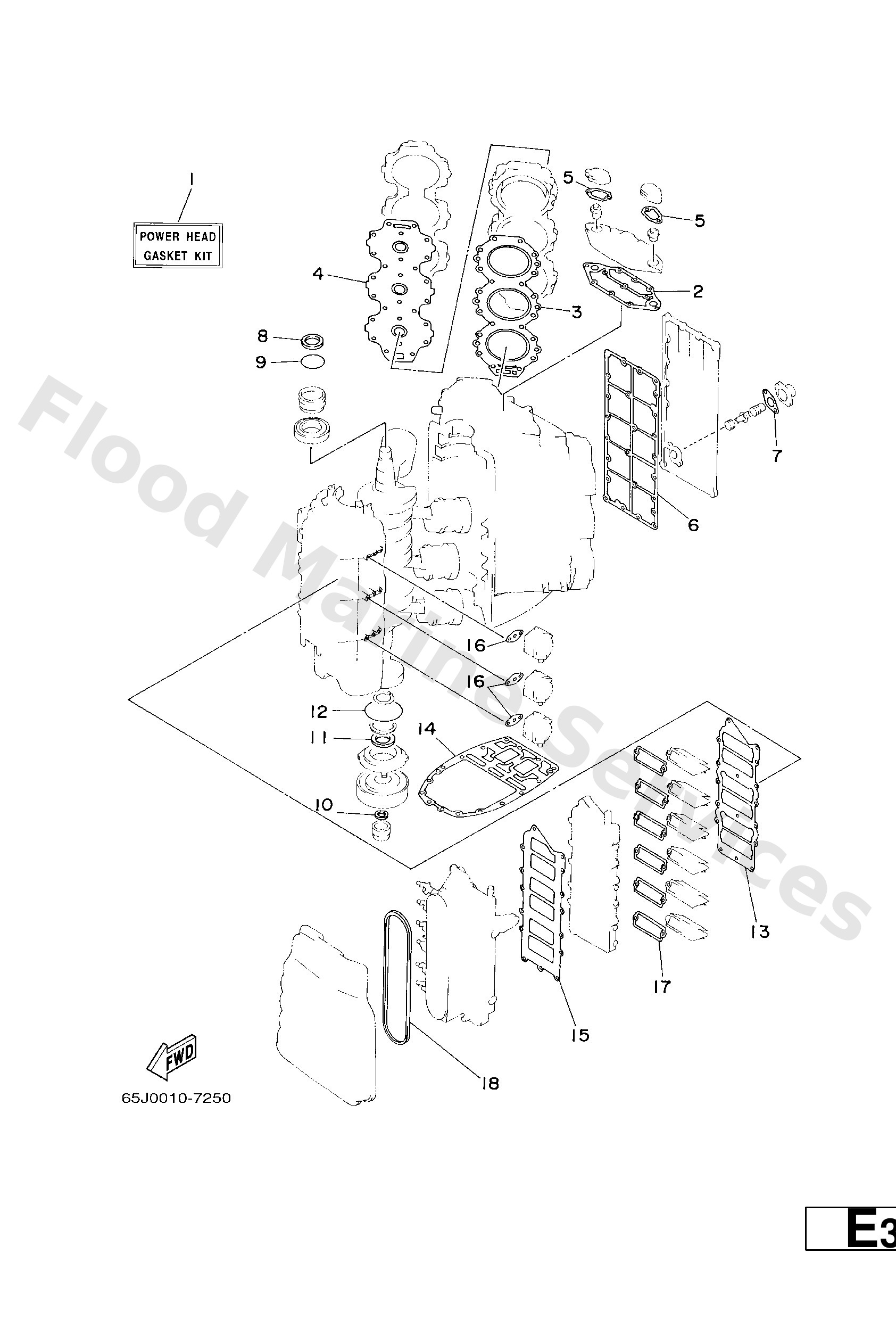

Diagram: REPAIR KIT 1

Diagram

Parts List

65LW000102
Power head gasket kit
Diagram Reference: 1
Get Part
61A--11381--A0
Gasket 1
Diagram Reference: 2
Get Part
69L1118100
Gasket, cylinder head 1
Diagram Reference: 3
Get Part
61A--11193--A1
Gasket, head cover 1
Diagram Reference: 4
Get Part
61A--12414--A0
Gasket, cover
Diagram Reference: 5
Get Part
61A--41112--A0
Gasket, exhaust inner cover
Diagram Reference: 6
Get Part
6G5--11382--A1
Gasket 2
Diagram Reference: 7
Get Part
93102--40M38
Oil seal(61a)
Diagram Reference: 8
Get Part
93210--54M54
O-ring (6g1)
Diagram Reference: 9
Get Part
93104--22M07
Oil seal(61a)
Diagram Reference: 10
Get Part
93102--40M36
Oil seal
Diagram Reference: 11
Get Part
93210--81MA6
O-ring(61a)
Diagram Reference: 12
Get Part
65L--13645--00
Gasket, manifold 1
Diagram Reference: 13
Get Part
61A--45113--A0
Gasket, upper casing
Diagram Reference: 14
Get Part
65L--13646--00
Gasket, manifold 2
Diagram Reference: 15
Get Part
650--24431--A0
Gasket,fuel pump
Diagram Reference: 16
Get Part
61A--13621--A0
Gasket, valve seat
Diagram Reference: 17
Get Part
65L--14483--00
Gasket
Diagram Reference: 18
Get Part
