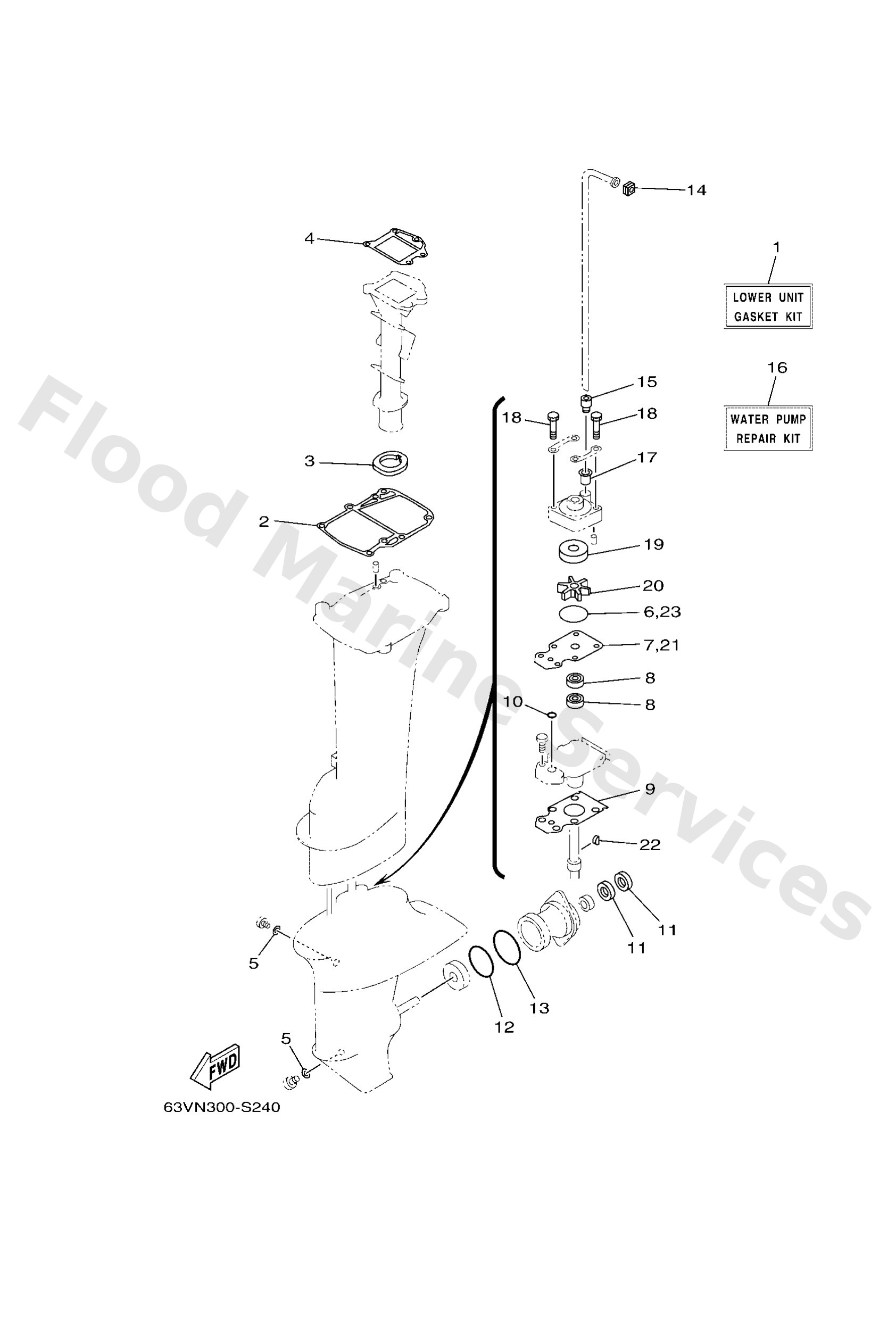

Diagram: REPAIR KIT 2

Diagram

Parts List

63VW000122
Lower unit gasket kit
Diagram Reference: 1
Get Part
63V45113A1
Gasket, upper casing
Diagram Reference: 2
Get Part
63V4113500
Gasket, exhaust manifold
Diagram Reference: 3
Get Part
63V41133A1
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
9043008003
Gasket
Diagram Reference: 5
Get Part
9321044398
O-ring(55x)
Diagram Reference: 6
Get Part
63V4432300
Outer plate, cartridge
Diagram Reference: 7
Get Part
9310120048
Oil seal (20x30x6-648)
Diagram Reference: 8
Get Part
63V45315A0
Packing, lower casing
Diagram Reference: 9
Get Part
9321006ME6
O-ring
Diagram Reference: 10
Get Part
9310117054
Oil seal (17x30x6-650)
Diagram Reference: 11
Get Part
9321057M09
O-ring (683)
Diagram Reference: 12
Get Part
9321056M80
O-ring(6j8)
Diagram Reference: 13
Get Part
63V4436510
Damper, water seal 1
Diagram Reference: 14
Get Part
63V4436800
Rubber, water seal 4
Diagram Reference: 15
Get Part
63VW007803
Water pump repair kit
Diagram Reference: 16
Get Part
6474436600
Damper, water seal 2
Diagram Reference: 17
Get Part
97D9508045
Bolt, hexagon deep recess
Diagram Reference: 18
Get Part
63V4432200
Insert, cartridge
Diagram Reference: 19
Get Part
63V4435201
Impeller
Diagram Reference: 20
Get Part
63V4433800
Key, woodruff
Diagram Reference: 22
