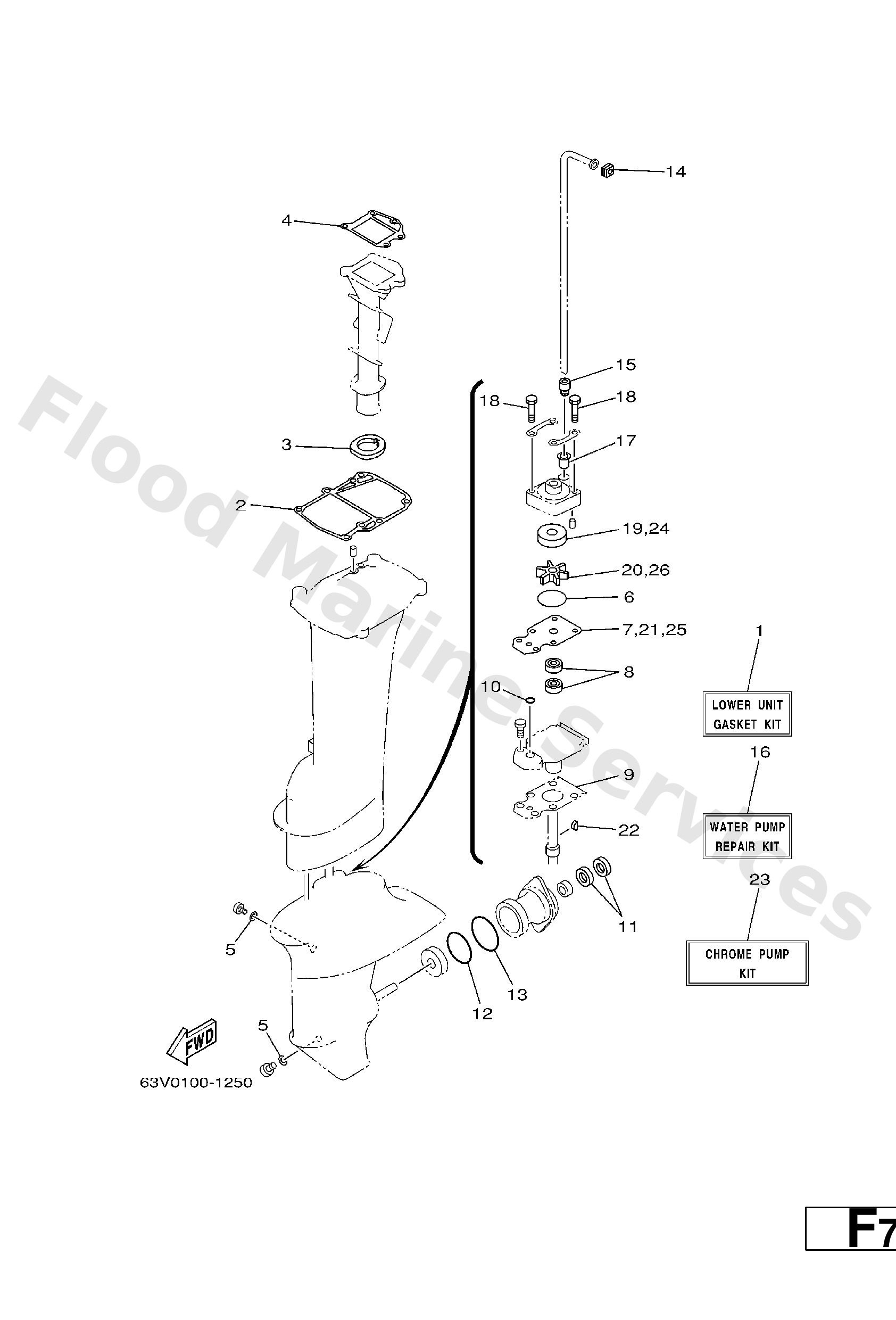

Diagram: REPAIR KIT 2

Diagram

Parts List

63V--W0001--22
Lower unit gasket kit
Diagram Reference: 1
Get Part
63V--45113--A1
Gasket, upper casing
Diagram Reference: 2
Get Part
63V--41135--00
Gasket, exhaust manifold
Diagram Reference: 3
Get Part
63V--41133--A1
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
90430--08020
Gasket
Diagram Reference: 5
Get Part
93210--44398
O-ring(55x)
Diagram Reference: 6
Get Part
63V--44323--00
Outer plate, cartridge
Diagram Reference: 7
Get Part
93101--20048
Oil seal (20x30x6-648)
Diagram Reference: 8
Get Part
63V--45315--A0
Packing, lower casing
Diagram Reference: 9
Get Part
93210--06ME6
O-ring
Diagram Reference: 10
Get Part
93101--17054
Oil seal (17x30x6-650)
Diagram Reference: 11
Get Part
93210--57M09
O-ring (683)
Diagram Reference: 12
Get Part
93210--56M80
O-ring(6j8)
Diagram Reference: 13
Get Part
63V--44365--10
Damper, water seal 1
Diagram Reference: 14
Get Part
63V--44368--00
Rubber, water seal 4
Diagram Reference: 15
Get Part
63V--W0078--01
Water pump repair kit
Diagram Reference: 16
Get Part
647--44366--00
Damper, water seal 2
Diagram Reference: 17
Get Part
97080--08045
Bolt, hexagon
Diagram Reference: 18
Get Part
63V--44322--00
Insert, cartridge
Diagram Reference: 19
Get Part
63V--44352--01
Impeller
Diagram Reference: 20
Get Part
63V--44338--00
Key, woodruff
Diagram Reference: 22
Get Part
63V--W0078--0A
Water pump repair kit
Diagram Reference: 23
Get Part
63V--44322--40
Insert, cartridge
Diagram Reference: 24
Get Part
63V--44323--40
Outer plate, cartridge
Diagram Reference: 25
Get Part
