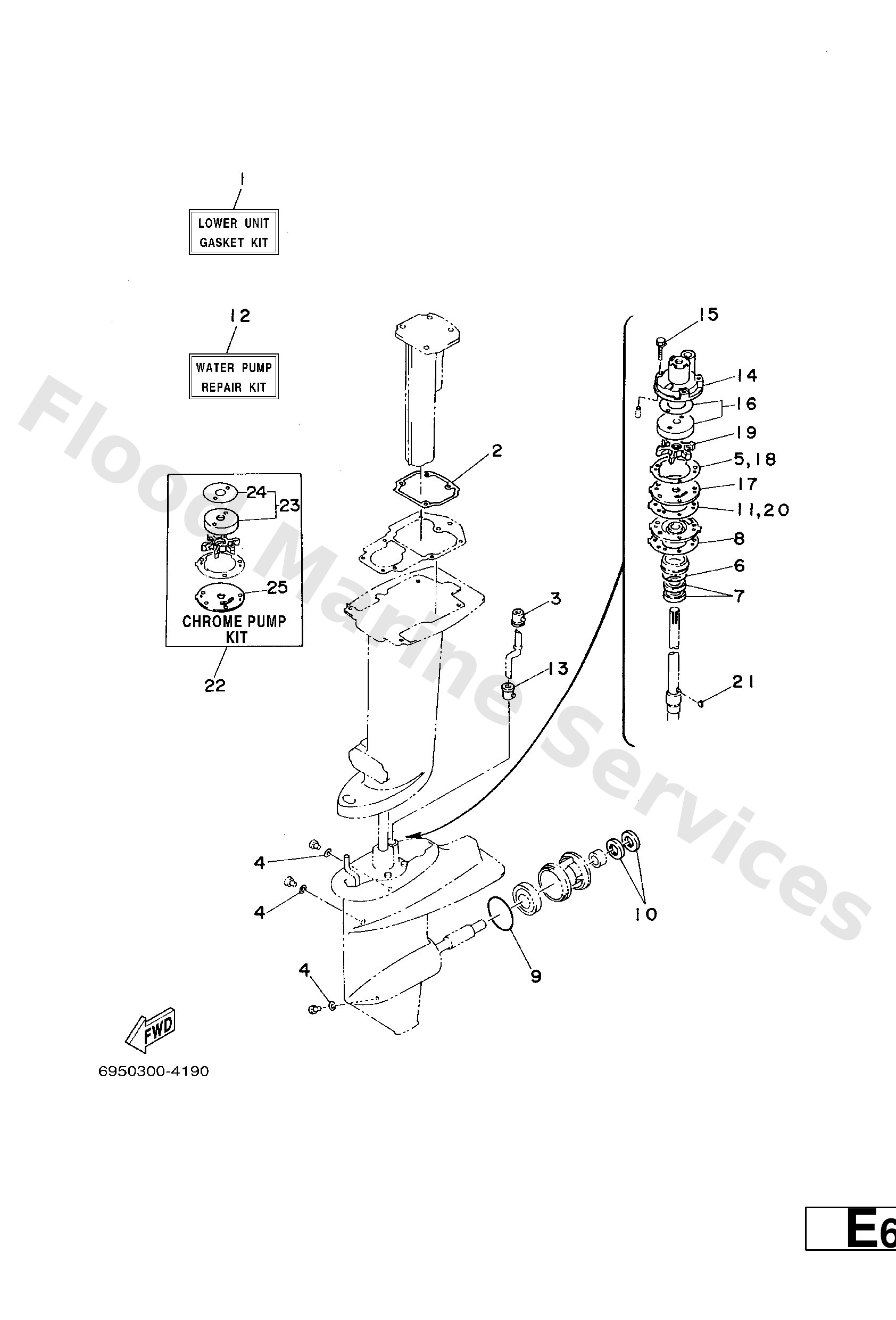

Diagram: REPAIR KIT 2
Parts List
Gasket kit
Diagram Reference: 1
Gasket, exhaust manifold
Diagram Reference: 2
Damper, water seal 2
Diagram Reference: 3
Gasket
Diagram Reference: 4
Gasket, cartridge
Diagram Reference: 5
O-ring (682)
Diagram Reference: 6
Oil seal (22x36x6-663)
Diagram Reference: 7
Gasket, water pump
Diagram Reference: 8
O-ring(6j8)
Diagram Reference: 9
Oil seal
Diagram Reference: 10
Gasket, water pump
Diagram Reference: 11
Water pump repair kit
Diagram Reference: 12
Damper, water seal 1
Diagram Reference: 13
Housing, water pump
Diagram Reference: 14
Bolt, With Washer
Diagram Reference: 15
Insert cartridge comp.
Diagram Reference: 16
Outer plate, cartridge
Diagram Reference: 17
Impeller
Diagram Reference: 19
Key, woodruff
Diagram Reference: 21
Chrome pump kit
Diagram Reference: 22
Insert cartridge comp.
Diagram Reference: 23
Rubber, water seal 3
Diagram Reference: 24
Outer plate, cartridge
Diagram Reference: 25
