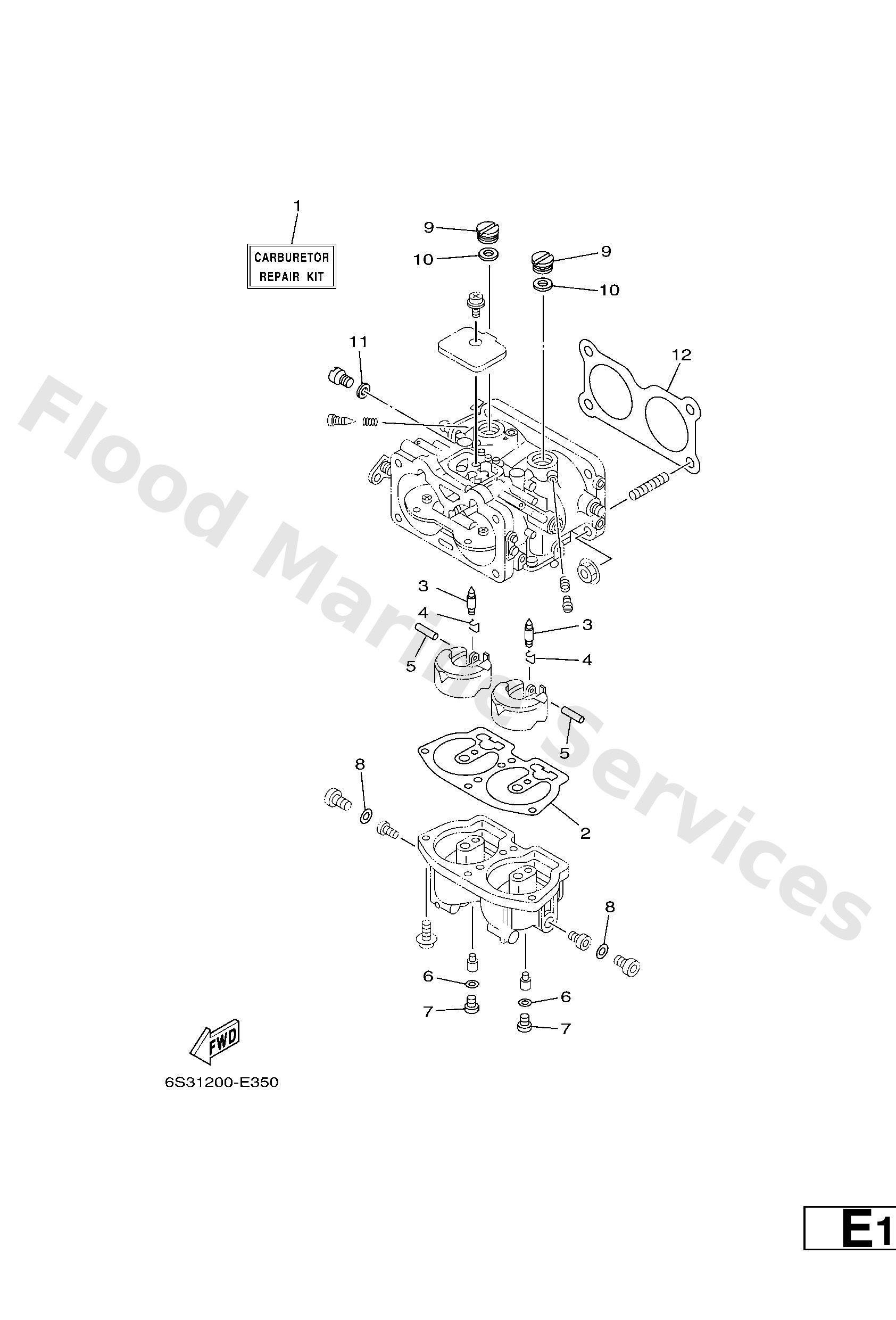

Diagram: REPAIR KIT 2
Parts List
Carburetor repair kit
Diagram Reference: 1
Gasket, float chamber
Diagram Reference: 2
Valve, needle
Diagram Reference: 3
Clip
Diagram Reference: 4
Pin, float
Diagram Reference: 5
Gasket
Diagram Reference: 6
Valve, drain
Diagram Reference: 7
Gasket
Diagram Reference: 8
Plug
Diagram Reference: 9
Gasket
Diagram Reference: 10
Gasket, drin screw
Diagram Reference: 11
Gasket
Diagram Reference: 12
