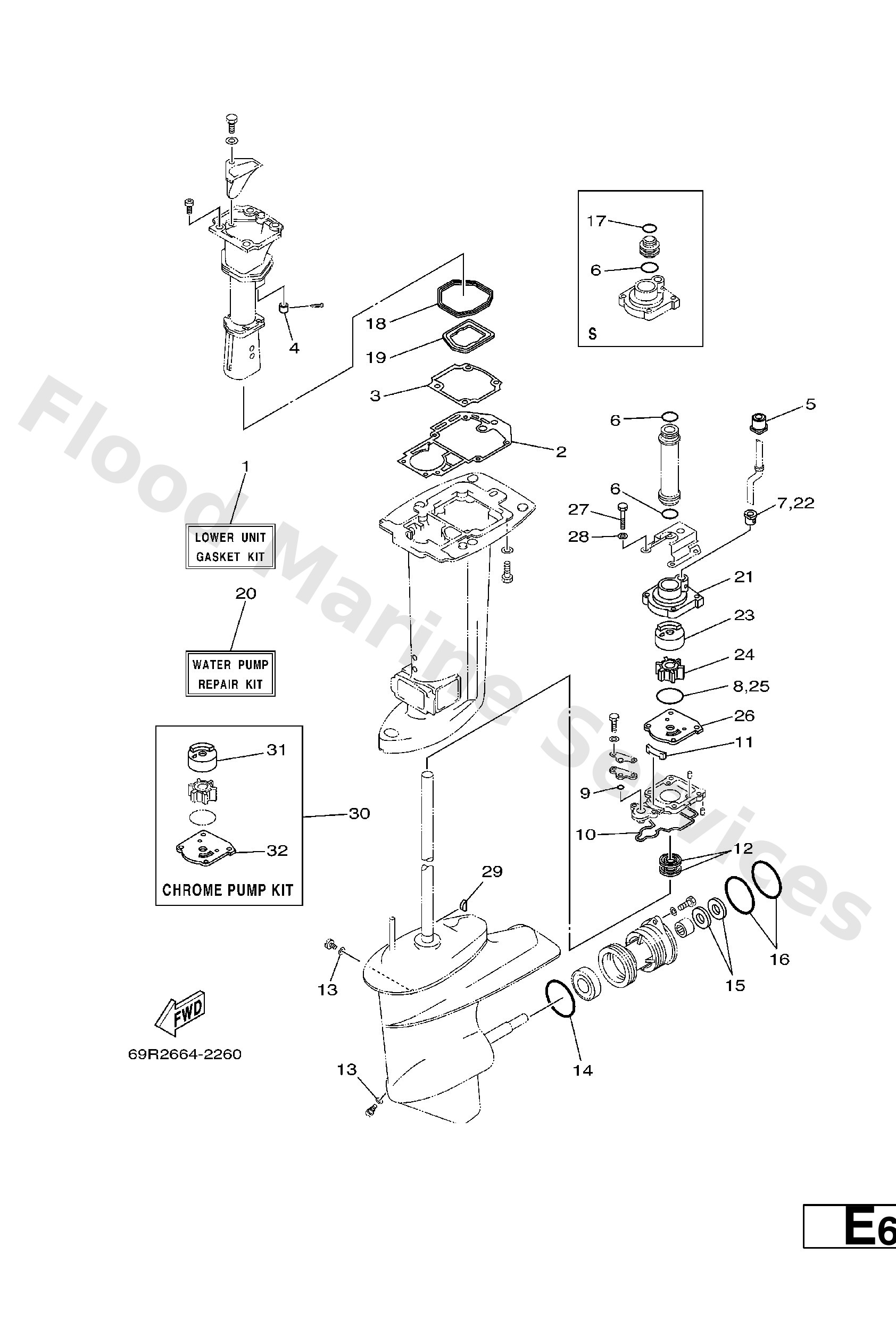

Diagram: REPAIR KIT 2

Diagram

Parts List

69P−W0001−20
Lower unit gasket kit
Diagram Reference: 1
Get Part
689−45113−A1
Gasket, upper casing
Diagram Reference: 2
Get Part
69P−41134−A0
Gasket, exhaust manifold
Diagram Reference: 3
Get Part
6A8−41135−00
Gasket, exhaust manifold 3
Diagram Reference: 4
Get Part
689−44366−00
Damper, water seal 2
Diagram Reference: 5
Get Part
93210−26130 (UN)
O-ring
Diagram Reference: 6
Get Part
6L2−44367−00
Damper, water seal 3
Diagram Reference: 7
Get Part
93210−45161
O-ring
Diagram Reference: 8
Get Part
93210−06ME6
O-ring
Diagram Reference: 9
Get Part
61N−45315−00
Packing, lower casing
Diagram Reference: 10
Get Part
61N−45127−00
Seal
Diagram Reference: 11
Get Part
93101−22067
Oil seal (22x36x6-663)
Diagram Reference: 12
Get Part
90430−08020
Gasket
Diagram Reference: 13
Get Part
93210−64ME7
O-ring
Diagram Reference: 14
Get Part
93101−20M07
Oil seal
Diagram Reference: 15
Get Part
93210−65M50
O-ring
Diagram Reference: 16
Get Part
93210−22164 (S)
O-ring
Diagram Reference: 17
Get Part
69P−41138−00
Seal, ext. 1
Diagram Reference: 18
Get Part
69P−41139−00
Seal, ext. 2
Diagram Reference: 19
Get Part
69P−W0078−00
Water pump repair kit
Diagram Reference: 20
Get Part
69P−44311−00
Housing, water pump
Diagram Reference: 21
Get Part
69P−44322−00
Insert, cartridge
Diagram Reference: 23
Get Part
6H4−44352−02
Impeller
Diagram Reference: 24
Get Part
61N−44323−00
Outer plate, cartridge
Diagram Reference: 26
Get Part
97095−06040
Bolt (682)
Diagram Reference: 27
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 28
Get Part
90280−03M03
Key, woodruff (697)
Diagram Reference: 29
Get Part
69P−W0078−0A
Chrome pump kit
Diagram Reference: 30
Get Part
69P−44322−40
Insert, cartridge
Diagram Reference: 31
Get Part
61N−44323−40
Outer plate, cartridge
Diagram Reference: 32
Get Part
