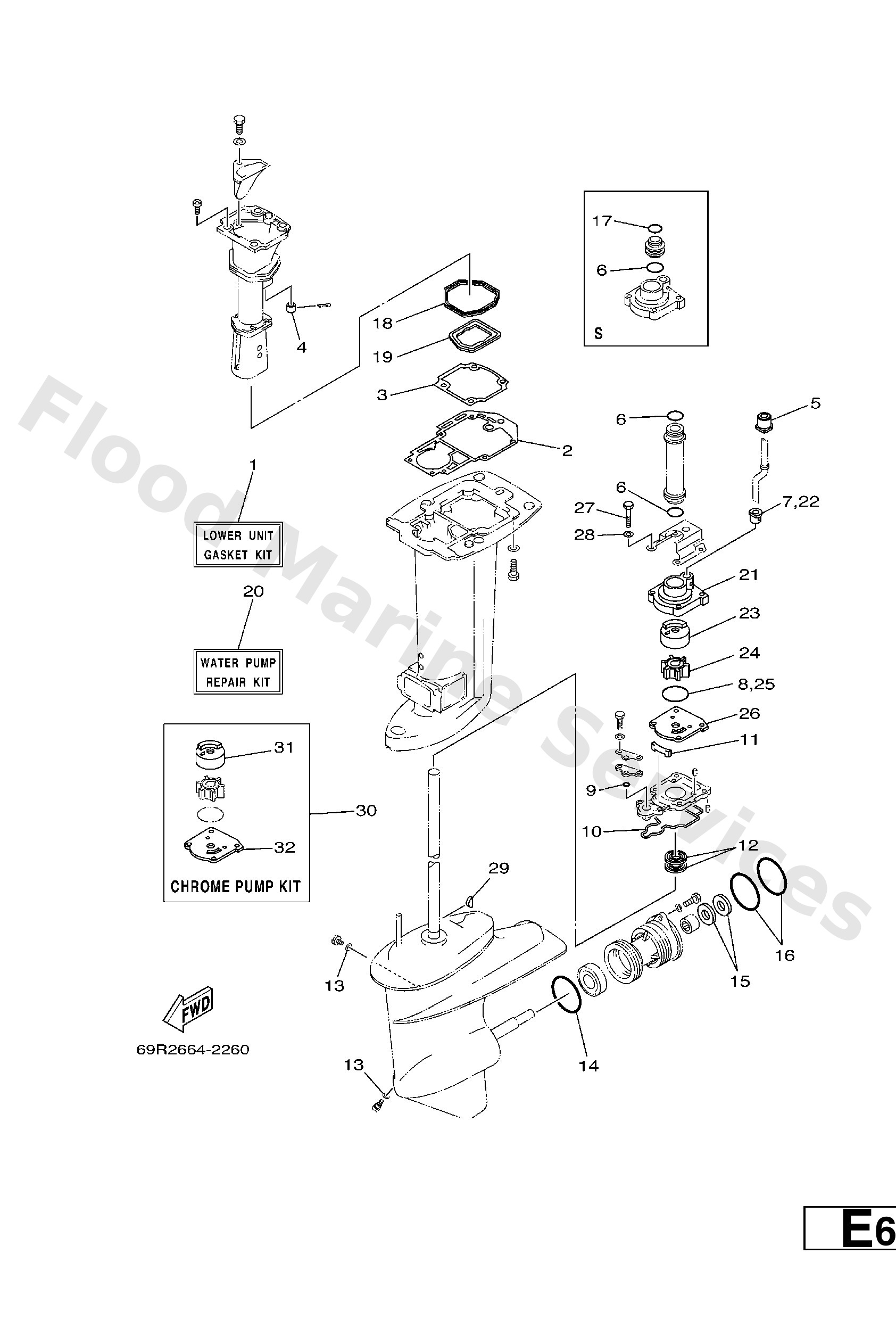

Diagram: REPAIR KIT 2

Diagram

Parts List

69PW000120
Lower unit gasket kit
Diagram Reference: 1
Get Part
68945113A1
Gasket, upper casing
Diagram Reference: 2
Get Part
69P41134A0
Gasket, exhaust manifold
Diagram Reference: 3
Get Part
6A84113500
Gasket, exhaust manifold 3
Diagram Reference: 4
Get Part
6894436600
Damper, water seal 2
Diagram Reference: 5
Get Part
9321026130 (UN)
O-ring
Diagram Reference: 6
Get Part
6L24436700
Damper, water seal 3
Diagram Reference: 7
Get Part
9321045161
O-ring
Diagram Reference: 8
Get Part
9321006ME6
O-ring
Diagram Reference: 9
Get Part
61N4531500
Packing, lower casing
Diagram Reference: 10
Get Part
61N4512700
Seal
Diagram Reference: 11
Get Part
9310122067
Oil seal (22x36x6-663)
Diagram Reference: 12
Get Part
9043008020
Gasket
Diagram Reference: 13
Get Part
9321064ME7
O-ring
Diagram Reference: 14
Get Part
9310120M07
Oil seal
Diagram Reference: 15
Get Part
9321065M50
O-ring
Diagram Reference: 16
Get Part
9321022164 (S)
O-ring
Diagram Reference: 17
Get Part
69P4113800
Seal, ext. 1
Diagram Reference: 18
Get Part
69P4113900
Seal, ext. 2
Diagram Reference: 19
Get Part
69PW007800
Water pump repair kit
Diagram Reference: 20
Get Part
69P4431100
Housing, water pump
Diagram Reference: 21
Get Part
69P4432200
Insert, cartridge
Diagram Reference: 23
Get Part
6H44435202
Impeller
Diagram Reference: 24
Get Part
61N4432300
Outer plate, cartridge
Diagram Reference: 26
Get Part
9709506040
Bolt (682)
Diagram Reference: 27
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 28
Get Part
9028003M03
Key, woodruff (697)
Diagram Reference: 29
Get Part
69PW00780A
Chrome pump kit
Diagram Reference: 30
Get Part
69P4432240
Insert, cartridge
Diagram Reference: 31
Get Part
61N4432340
Outer plate, cartridge
Diagram Reference: 32
