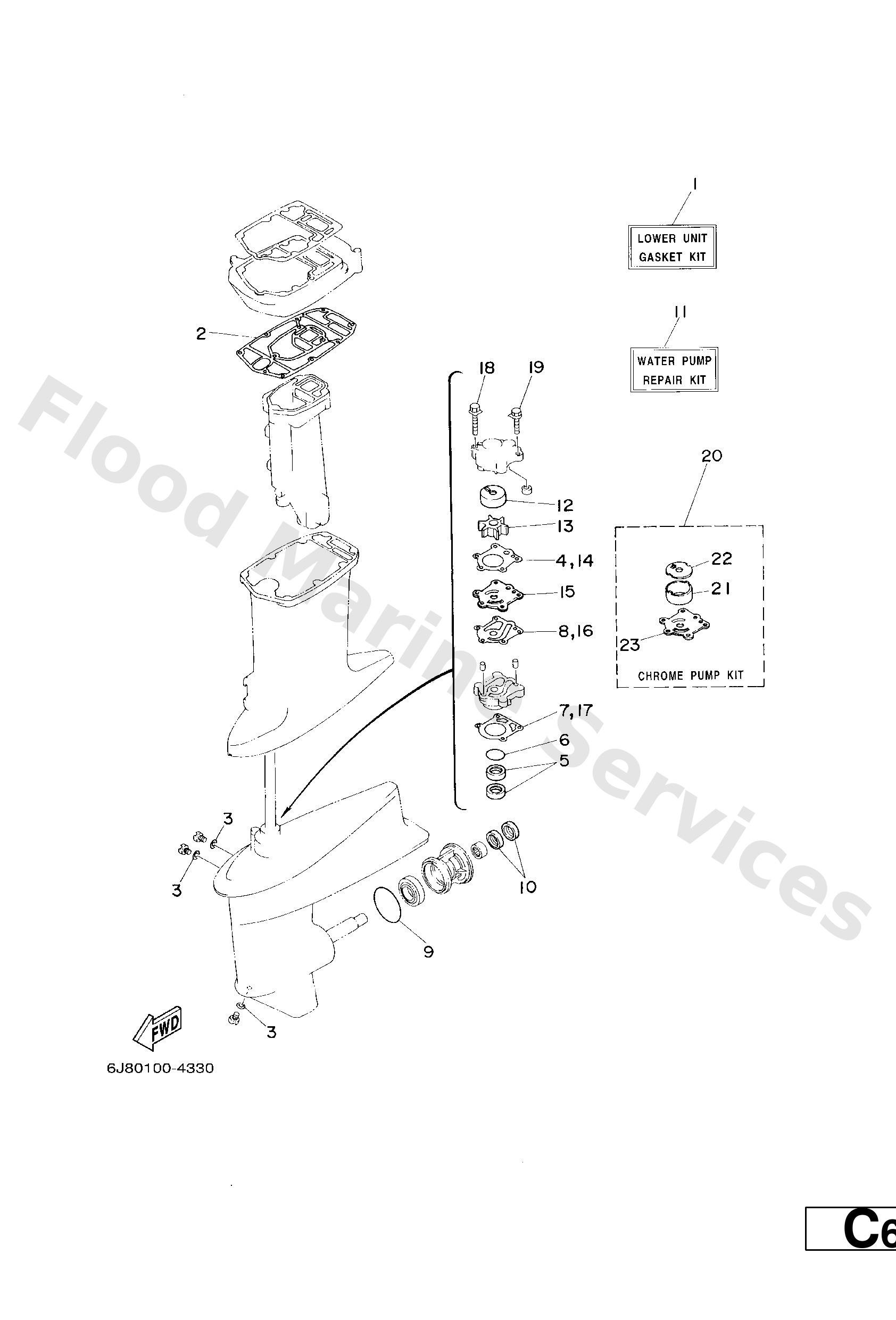

Diagram: REPAIR KIT 2

Diagram

Parts List

6J8−W0001−C2
Gasket kit
Diagram Reference: 1
Get Part
6J8−45114−A1
Gasket, upper casing
Diagram Reference: 2
Get Part
90430−08020
Gasket
Diagram Reference: 3
Get Part
663−44315−A0
Gasket,water pump 1
Diagram Reference: 4
Get Part
93101−23070
Oil seal (663)
Diagram Reference: 5
Get Part
93210−41042
O-ring (132)
Diagram Reference: 6
Get Part
663−44316−A0
Gasket,water pump 2
Diagram Reference: 7
Get Part
663−44324−A0
Gasket,cartridge outer plate
Diagram Reference: 8
Get Part
93210−60MA3
O-ring(6j8)
Diagram Reference: 9
Get Part
93101−20M07
Oil seal
Diagram Reference: 10
Get Part
6J8−W0078−A2
Water pump repair kit
Diagram Reference: 11
Get Part
663−44322−00
Insert, cartridge
Diagram Reference: 12
Get Part
6H4−44352−02
Impeller
Diagram Reference: 13
Get Part
663−44323−00
Outer plate, cartridge
Diagram Reference: 15
Get Part
90119−08M13
Bolt, with washer(6h0)
Diagram Reference: 18
Get Part
90119−08M34
Bolt, with washer(6j8)
Diagram Reference: 19
Get Part
6H4−W0078−0A
Chrome pump kit
Diagram Reference: 20
Get Part
670−44322−01
Insert, cartridge
Diagram Reference: 21
Get Part
670−44321−00
Inner plate, cartridge
Diagram Reference: 22
Get Part
670−44323−00
Outer plate, cartridge
Diagram Reference: 23
Get Part
