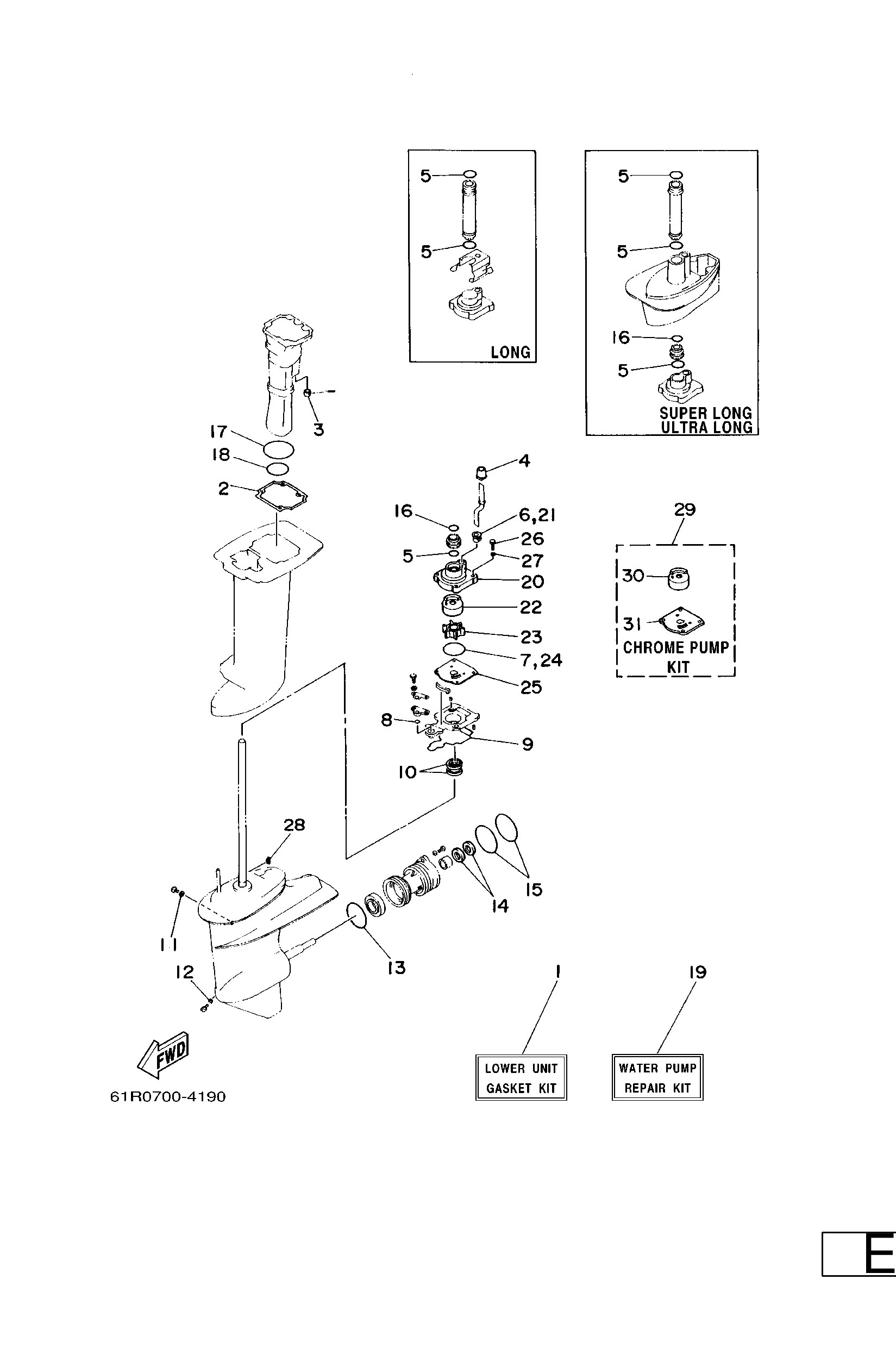

Diagram: REPAIR KIT 2

Diagram

Parts List

61NW0001E1
-
Diagram Reference: 1
Get Part
66441134A0
Gasket, exhaust manifold
Diagram Reference: 2
Get Part
6A84113500 (S)
Gasket, exhaust manifold 3
Diagram Reference: 3
Get Part
6894113500 (L,U,X)
Gasket, Exhaust Manifold
Diagram Reference: 3
Get Part
6894436600
Damper, water seal 2
Diagram Reference: 4
Get Part
9321026240 (UN)
O-ring
Diagram Reference: 5
Get Part
6L24436700
Damper, water seal 3
Diagram Reference: 6
Get Part
9321045161
O-ring
Diagram Reference: 7
Get Part
9321006ME6
O-ring
Diagram Reference: 8
Get Part
61N4531500
Packing, lower casing
Diagram Reference: 9
Get Part
9310122067
Oil seal (22x36x6-663)
Diagram Reference: 10
Get Part
9043008020
Gasket
Diagram Reference: 11
Get Part
9321064ME7
O-ring
Diagram Reference: 13
Get Part
9310120M07
Oil seal
Diagram Reference: 14
Get Part
9321065M50
O-ring
Diagram Reference: 15
Get Part
9321022164 (S,U,X)
O-ring
Diagram Reference: 16
Get Part
6894114100
Seal, exhaust 1
Diagram Reference: 17
Get Part
6894114200
Seal, exhust 2
Diagram Reference: 18
Get Part
61NW007801
Water pump reair kit
Diagram Reference: 19
Get Part
61N4431101
Housing, water pump
Diagram Reference: 20
Get Part
61N4432201
Insert, cartridge
Diagram Reference: 22
Get Part
6H44435202
Impeller
Diagram Reference: 23
Get Part
61N4432300
Outer plate, cartridge
Diagram Reference: 25
Get Part
9709506040
Bolt (682)
Diagram Reference: 26
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 27
Get Part
9028003024
Key, woodruff(662)
Diagram Reference: 28
Get Part
61NW00780A
-
Diagram Reference: 29
Get Part
61N4432241
Insert, cartridge
Diagram Reference: 30
Get Part
61N4432340
Outer plate, cartridge
Diagram Reference: 31
