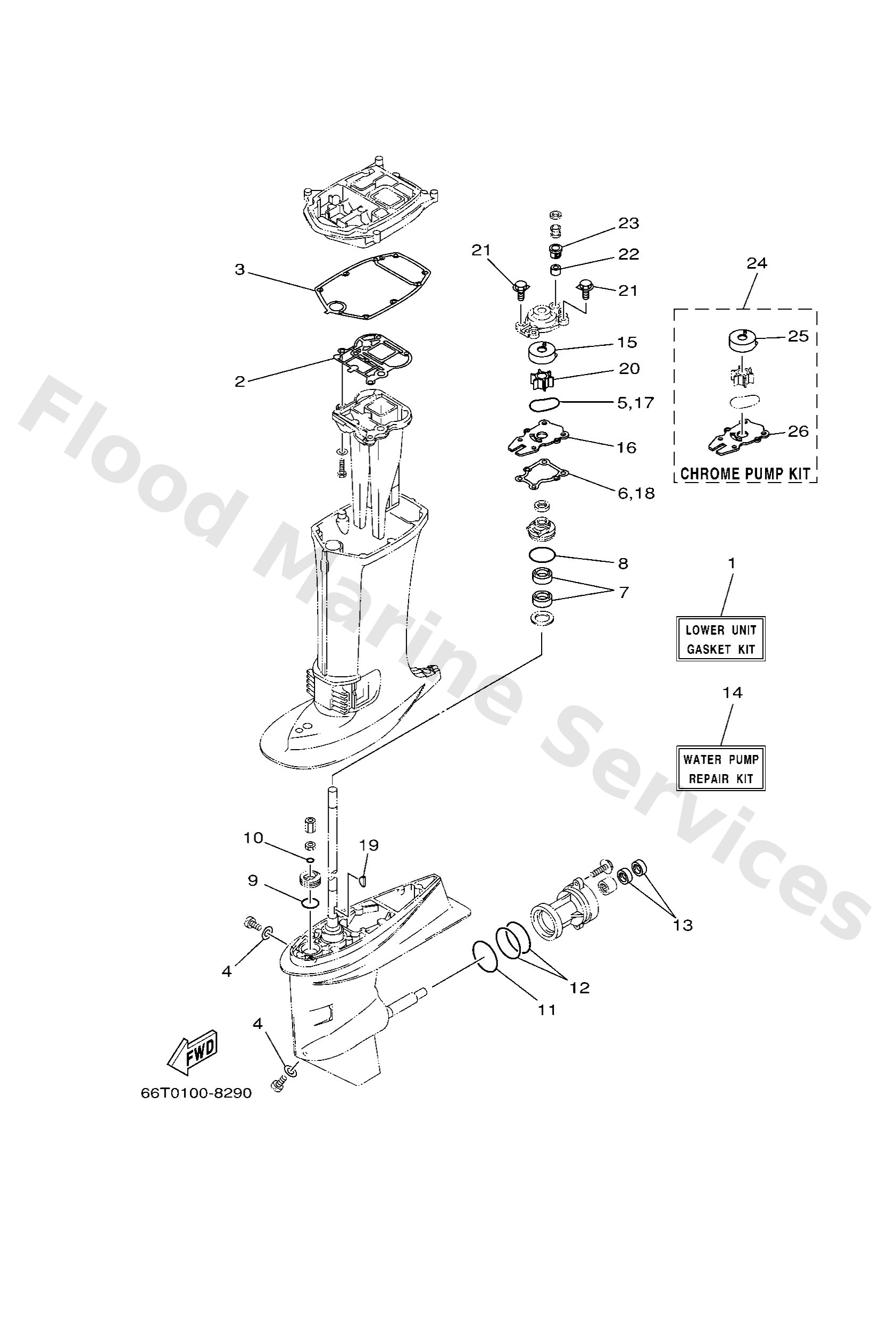

Diagram: REPAIR KIT 2

Diagram

Parts List

66TW000121
Lower unit gasket kit
Diagram Reference: 1
Get Part
66T41133A0
Gasket, exhaust manifold 1
Diagram Reference: 2
Get Part
66T45114A0
Gasket, upper casing
Diagram Reference: 3
Get Part
9043008003
Gasket
Diagram Reference: 4
Get Part
9321059MG7
O-ring
Diagram Reference: 5
Get Part
63D4431600
Gasket, water pump
Diagram Reference: 6
Get Part
9310122M60
Oil seal
Diagram Reference: 7
Get Part
9321048001
O-ring
Diagram Reference: 8
Get Part
9321033MG4
O-ring
Diagram Reference: 9
Get Part
9321006ME6
O-ring
Diagram Reference: 10
Get Part
9321069MG6
O-ring
Diagram Reference: 11
Get Part
9321074MG5
O-ring (xea)
Diagram Reference: 12
Get Part
9310122M00
Oil seal (22x36x6-663)
Diagram Reference: 13
Get Part
66TW007800
Water pump repair kit
Diagram Reference: 14
Get Part
63D4432200
Insert, cartridge
Diagram Reference: 15
Get Part
66T4432300
Outer plate, cartridge
Diagram Reference: 16
Get Part
9028003M03
Key, woodruff (697)
Diagram Reference: 19
Get Part
6H44435202
Impeller
Diagram Reference: 20
Get Part
9011908M15
Bolt, with washer(62w)
Diagram Reference: 21
Get Part
6634436600
Damper, water seal 2
Diagram Reference: 22
Get Part
63D4431200
Cover, water pump housing
Diagram Reference: 23
Get Part
66TW00780A
Chrome pump kit
Diagram Reference: 24
Get Part
63D4432240
Insert, cartridge
Diagram Reference: 25
Get Part
66T4432340
Outer plate, cartridge
Diagram Reference: 26
Get Part
