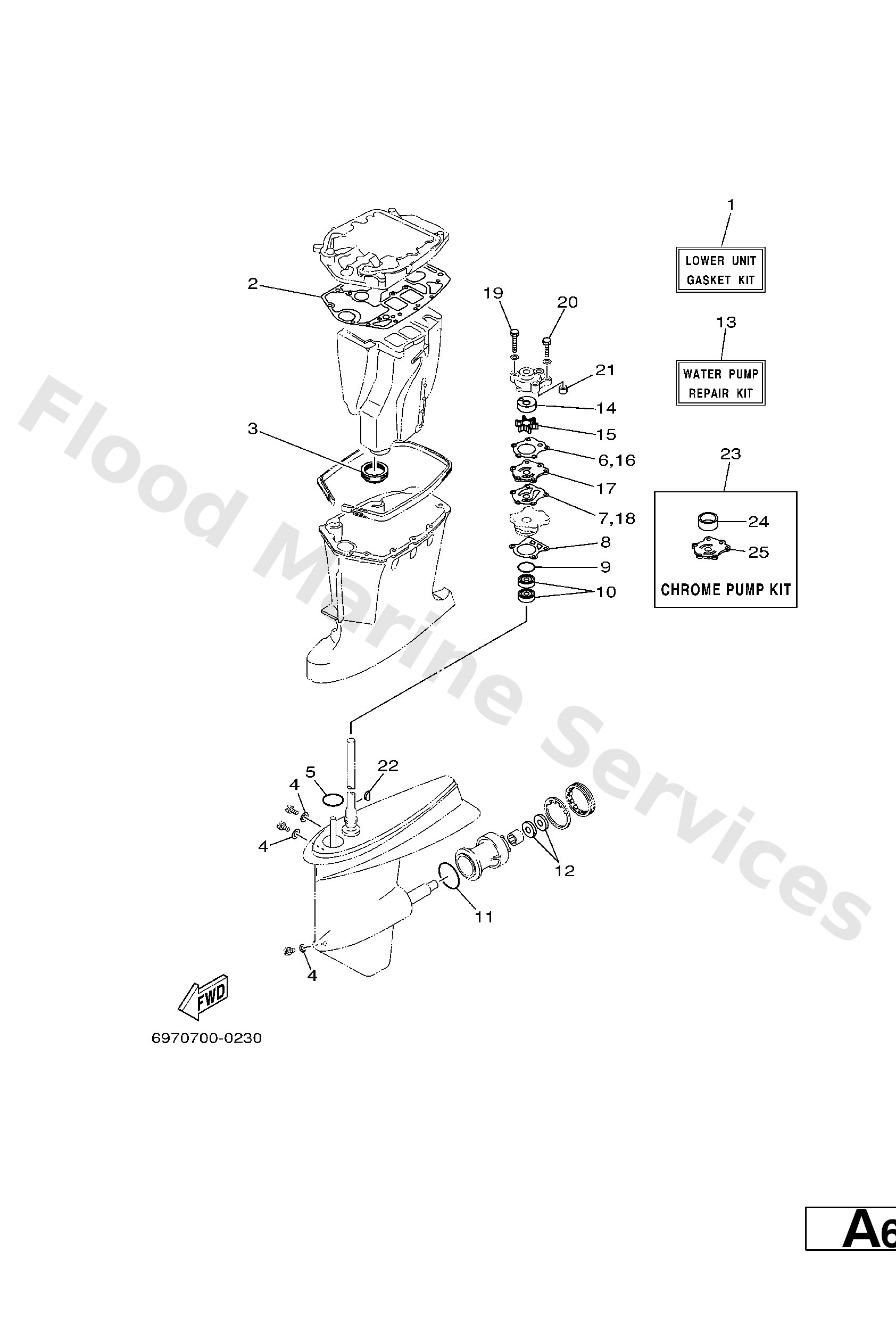

Diagram: REPAIR KIT 2

Diagram

Parts List

698W000121
Lower unit gasket kit
Diagram Reference: 1
Get Part
69745114A0
Gasket,upper casing 2
Diagram Reference: 2
Get Part
6634512300
Gasket, muffler
Diagram Reference: 3
Get Part
90430--08020
Gasket
Diagram Reference: 4
Get Part
93210--49046
O-ring (620)
Diagram Reference: 5
Get Part
663--44315--A0
Gasket,water pump 1
Diagram Reference: 6
Get Part
663--44324--A0
Gasket,cartridge outer plate
Diagram Reference: 7
Get Part
663--44316--A0
Gasket,water pump 2
Diagram Reference: 8
Get Part
93210--41042
O-ring (132)
Diagram Reference: 9
Get Part
93101--23070
Oil seal (663)
Diagram Reference: 10
Get Part
9321066M98
O-ring(6h4)
Diagram Reference: 11
Get Part
93101--22067
Oil seal (22x36x6-663)
Diagram Reference: 12
Get Part
663W007801
Water pump repair kit
Diagram Reference: 13
Get Part
663--44322--00
Insert, cartridge
Diagram Reference: 14
Get Part
6974435200
Impellar
Diagram Reference: 15
Get Part
663--44323--00
Outer plate, cartridge
Diagram Reference: 17
Get Part
9709508055
Bolt, hexagon
Diagram Reference: 19
Get Part
97095--08045
Bolt, hexagon
Diagram Reference: 20
Get Part
663--44366--00
Damper, water seal 2
Diagram Reference: 21
Get Part
90280--03M03
Key, woodruff (697)
Diagram Reference: 22
Get Part
697--W0078--0A
Chrome pump kit
Diagram Reference: 23
Get Part
663--44322--40
Insert, cartridge
Diagram Reference: 24
Get Part
670--44323--00
Outer plate, cartridge
Diagram Reference: 25
Get Part
