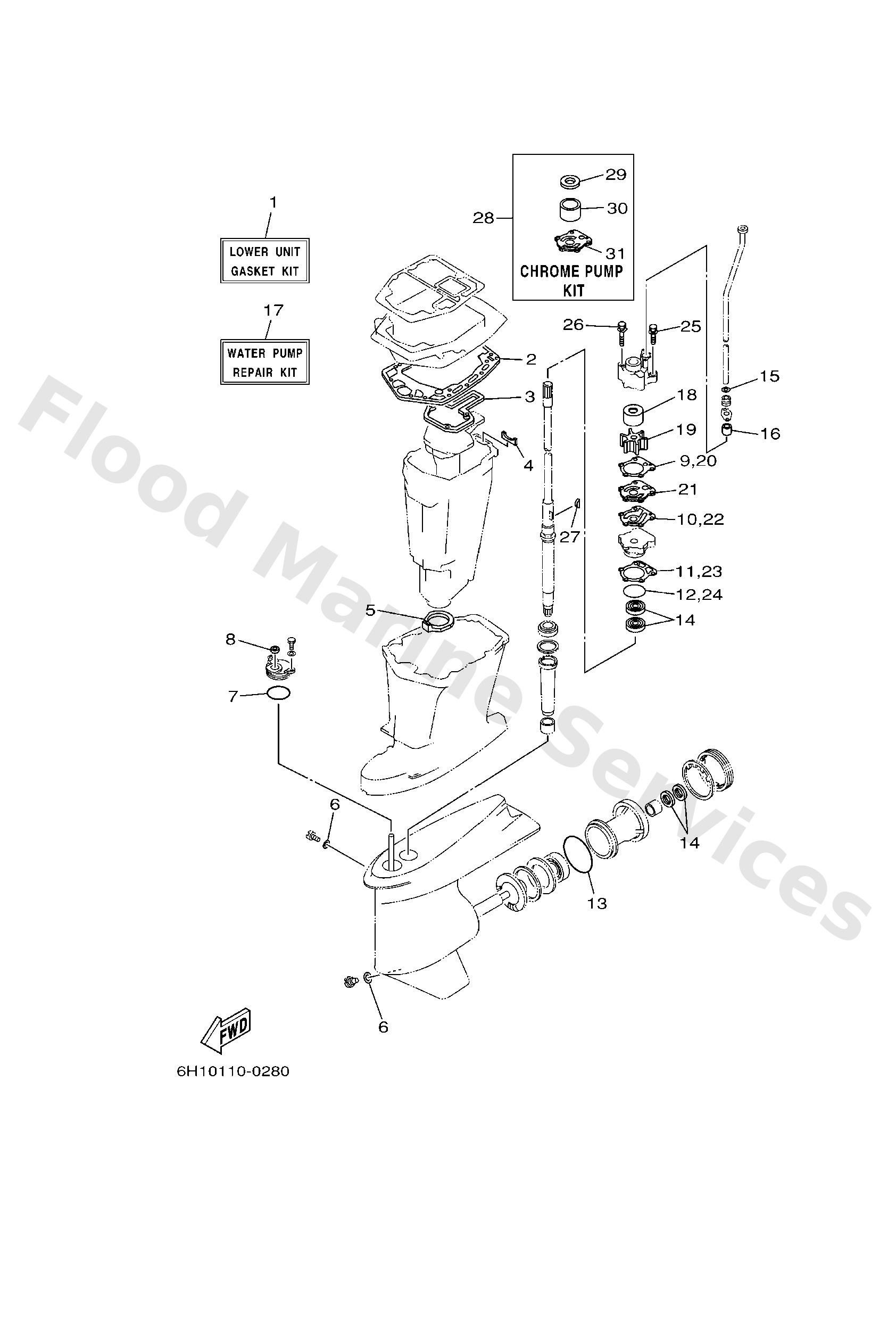

Diagram: REPAIR KIT 2

Diagram

Parts List

688W000121
Lower unit gasket kit
Diagram Reference: 1
Get Part
68845114A1
Gasket, upper casing
Diagram Reference: 2
Get Part
68841134A0
Gasket, exhaust manifold
Diagram Reference: 3
Get Part
6884113300
Gasket, exhaust manifold 1
Diagram Reference: 4
Get Part
6884512300
Gasket, muffler
Diagram Reference: 5
Get Part
9043008020
Gasket
Diagram Reference: 6
Get Part
9321049046
O-ring (620)
Diagram Reference: 7
Get Part
9310609014
Oil seal
Diagram Reference: 8
Get Part
68844315A0
Gasket,water pump 1
Diagram Reference: 9
Get Part
68844324A0
Gasket,cartridge 0uter plate
Diagram Reference: 10
Get Part
68844316A0
Gasket,water pump 2
Diagram Reference: 11
Get Part
9321046044
O-ring
Diagram Reference: 12
Get Part
9321085M97
O-ring(6h1)
Diagram Reference: 13
Get Part
9310125M03
Oil seal
Diagram Reference: 14
Get Part
9043012072
Gasket
Diagram Reference: 15
Get Part
6634436600
Damper, water seal 2
Diagram Reference: 16
Get Part
692W007802
Water pump repair kit
Diagram Reference: 17
Get Part
6884432200
Insert, cartridge
Diagram Reference: 18
Get Part
6884435203
Impeller
Diagram Reference: 19
Get Part
6884432300
Outer plate, cartridge
Diagram Reference: 21
Get Part
9011908M13
Bolt, with washer(6h0)
Diagram Reference: 25
Get Part
9011908M16
Bolt, with washer(6h0)
Diagram Reference: 26
Get Part
9028004M04
Key, woodruff (688)
Diagram Reference: 27
Get Part
688W00781A
Chrome pump kit
Diagram Reference: 28
Get Part
6884432141
Inner plate, cartridge
Diagram Reference: 29
Get Part
6884432241
Insert, cartridge
Diagram Reference: 30
Get Part
6884432340
Outer plate, cartridge
Diagram Reference: 31
