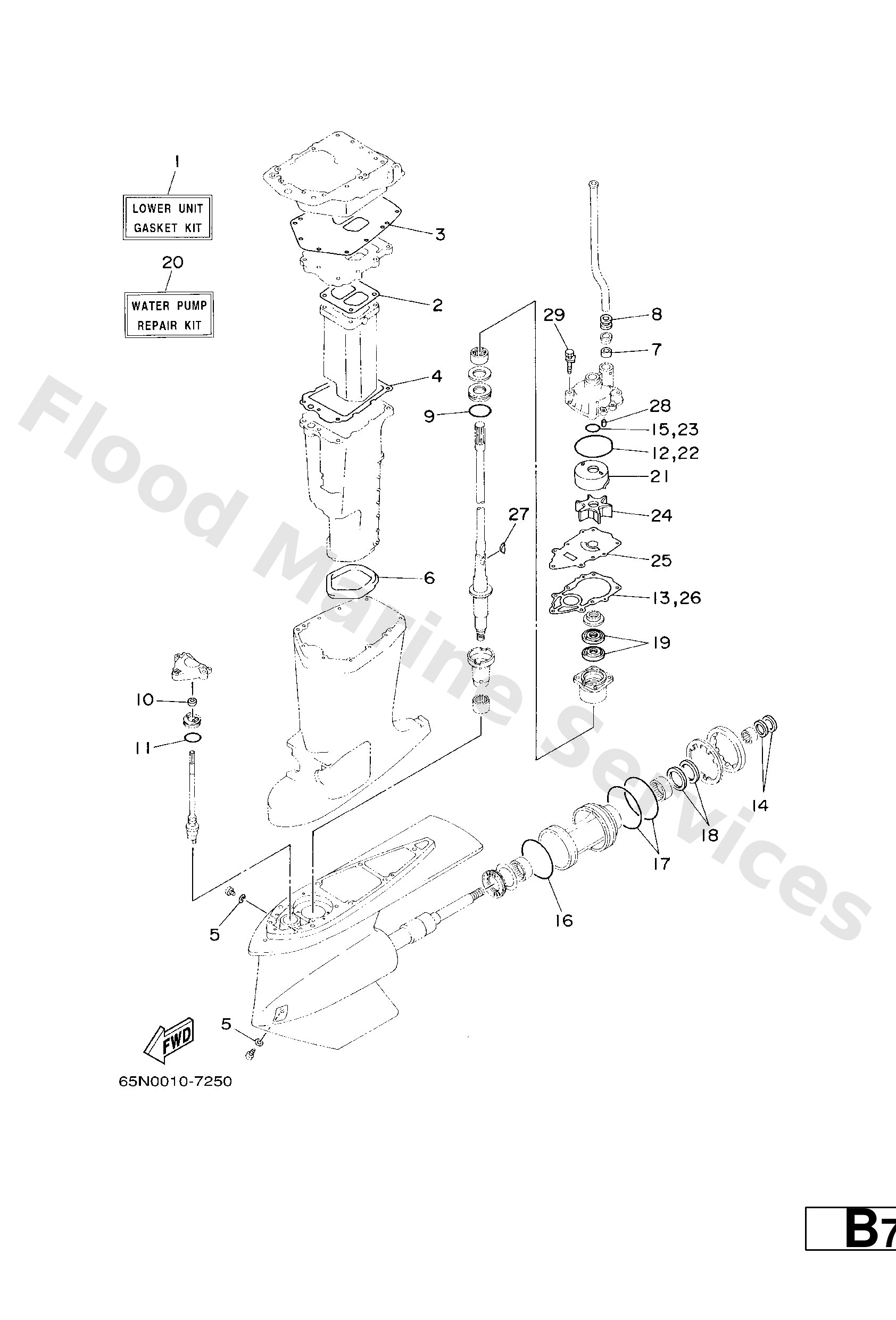

Diagram: REPAIR KIT 2
Parts List
Lower unit gasket kit
Diagram Reference: 1
Gasket, exhaust manifold
Diagram Reference: 2
Gasket, upper casing
Diagram Reference: 3
Gasket, exhaust manifold
Diagram Reference: 4
Gasket
Diagram Reference: 5
Gasket, muffler
Diagram Reference: 6
Damper, water seal 1
Diagram Reference: 7
Damper, water seal 2
Diagram Reference: 8
O-ring (70e)
Diagram Reference: 9
Oil seal
Diagram Reference: 10
O-ring(6l5)
Diagram Reference: 11
O-ring (6e5)
Diagram Reference: 12
Gasket, water pump
Diagram Reference: 13
Oil seal
Diagram Reference: 14
O-ring (6g8)
Diagram Reference: 15
O-ring (6a5)
Diagram Reference: 16
O-ring(65n)
Diagram Reference: 17
Oil seal(65n)
Diagram Reference: 18
Oil seal (6e5)
Diagram Reference: 19
Water pump repair kit
Diagram Reference: 20
Insert, cartridge
Diagram Reference: 21
Impeller
Diagram Reference: 24
Outer plate, cartridge
Diagram Reference: 25
Key, woodruff (6e5)
Diagram Reference: 27
Pin, dowel (614)
Diagram Reference: 28
Bolt, with washer
Diagram Reference: 29
