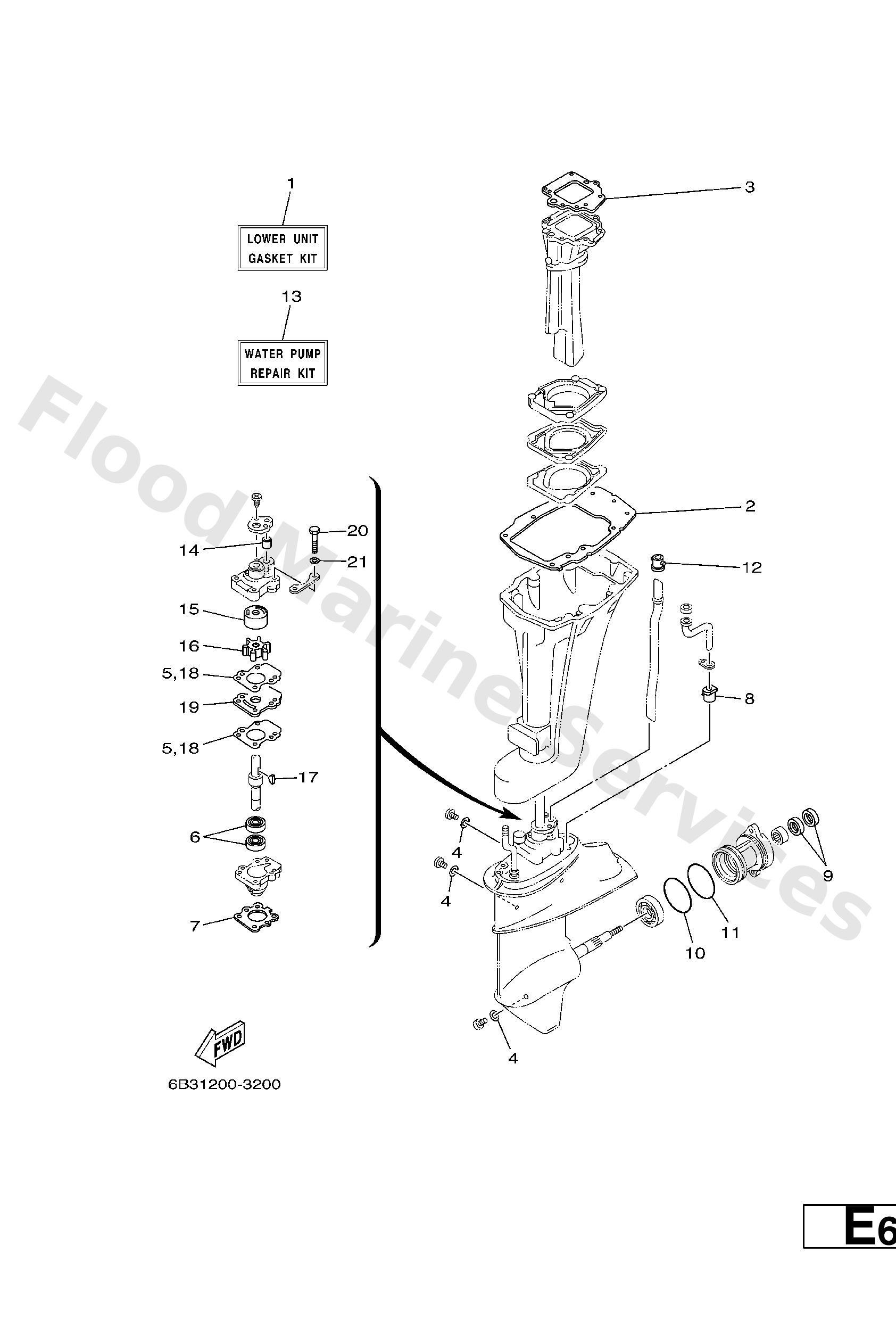

Diagram: REPAIR KIT 2

Diagram

Parts List

6B4−W0001−20

Lower unit gasket kit

Diagram Reference: 1

682−45113−A2

Gasket, upper casing

Diagram Reference: 2

682−41133−A0

Gasket,exhaust manifold 1

Diagram Reference: 3

90430−08020

Gasket

Diagram Reference: 4

682−44315−A0

Gasket,water pump 1

Diagram Reference: 5

93101−20001

Oil seal

Diagram Reference: 6

683−45315−A0

Packing,lower casing

Diagram Reference: 7

6E7−44366−00

Damper, water seal 2

Diagram Reference: 8

93101−17001

Oil seal

Diagram Reference: 9

93210−57M09

O-ring (683)

Diagram Reference: 10

93210−56M80

O-ring(6j8)

Diagram Reference: 11

626−44365−01

Damper, water seal 1

Diagram Reference: 12

6B4−W0078−0A

Water pump repair kit

Diagram Reference: 13

682−44365−00

Damper, water seal 1

Diagram Reference: 14

682−44322−41

Insert, cartridge

Diagram Reference: 15

682−44352−03

Impeller

Diagram Reference: 16

90280−03005

Key, woodruff

Diagram Reference: 17

682−44323−40

Outer plate, cartridge(chrome)

Diagram Reference: 19

97095−06045

Bolt, hexagon

Diagram Reference: 20

92995−06600

Washer, plain (646)

Diagram Reference: 21
