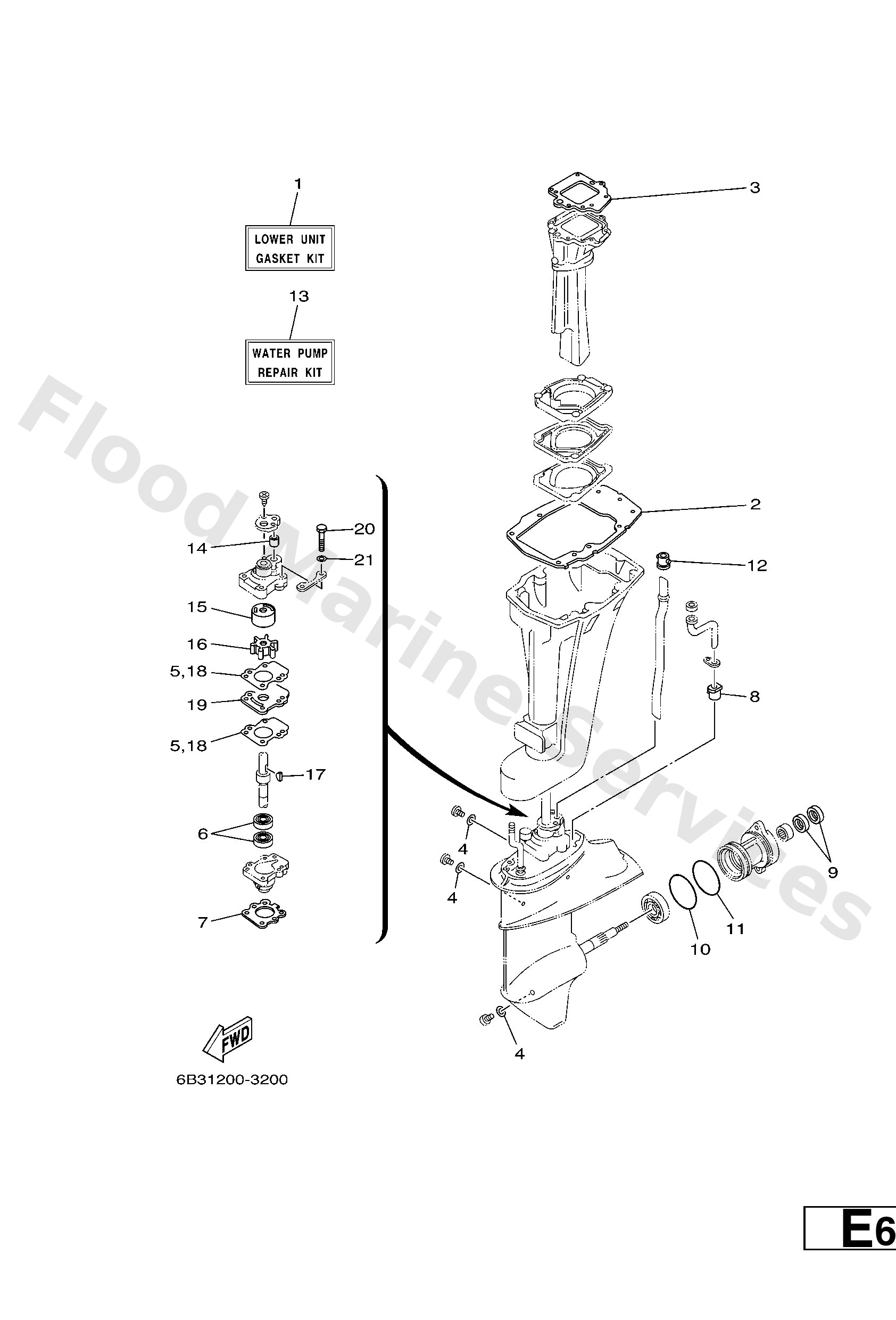

Diagram: REPAIR KIT 2

Diagram

Parts List

6B4W000120
Lower unit gasket kit
Diagram Reference: 1
Get Part
68245113A2
Gasket, upper casing
Diagram Reference: 2
Get Part
68241133A0
Gasket,exhaust manifold 1
Diagram Reference: 3
Get Part
9043008020
Gasket
Diagram Reference: 4
Get Part
68244315A0
Gasket,water pump 1
Diagram Reference: 5
Get Part
9310120001
Oil seal
Diagram Reference: 6
Get Part
68345315A0
Packing,lower casing
Diagram Reference: 7
Get Part
6E74436600
Damper, water seal 2
Diagram Reference: 8
Get Part
9310117001
Oil seal
Diagram Reference: 9
Get Part
9321057M09
O-ring (683)
Diagram Reference: 10
Get Part
9321056M80
O-ring(6j8)
Diagram Reference: 11
Get Part
6264436501
Damper, water seal 1
Diagram Reference: 12
Get Part
6B4W00780A
Water pump repair kit
Diagram Reference: 13
Get Part
6824436500
Damper, water seal 1
Diagram Reference: 14
Get Part
6824432241
Insert, cartridge
Diagram Reference: 15
Get Part
6824435203
Impeller
Diagram Reference: 16
Get Part
9028003005
Key, woodruff
Diagram Reference: 17
Get Part
6824432340
Outer plate, cartridge(chrome)
Diagram Reference: 19
Get Part
9709506045
Bolt, hexagon
Diagram Reference: 20
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 21
Get Part
