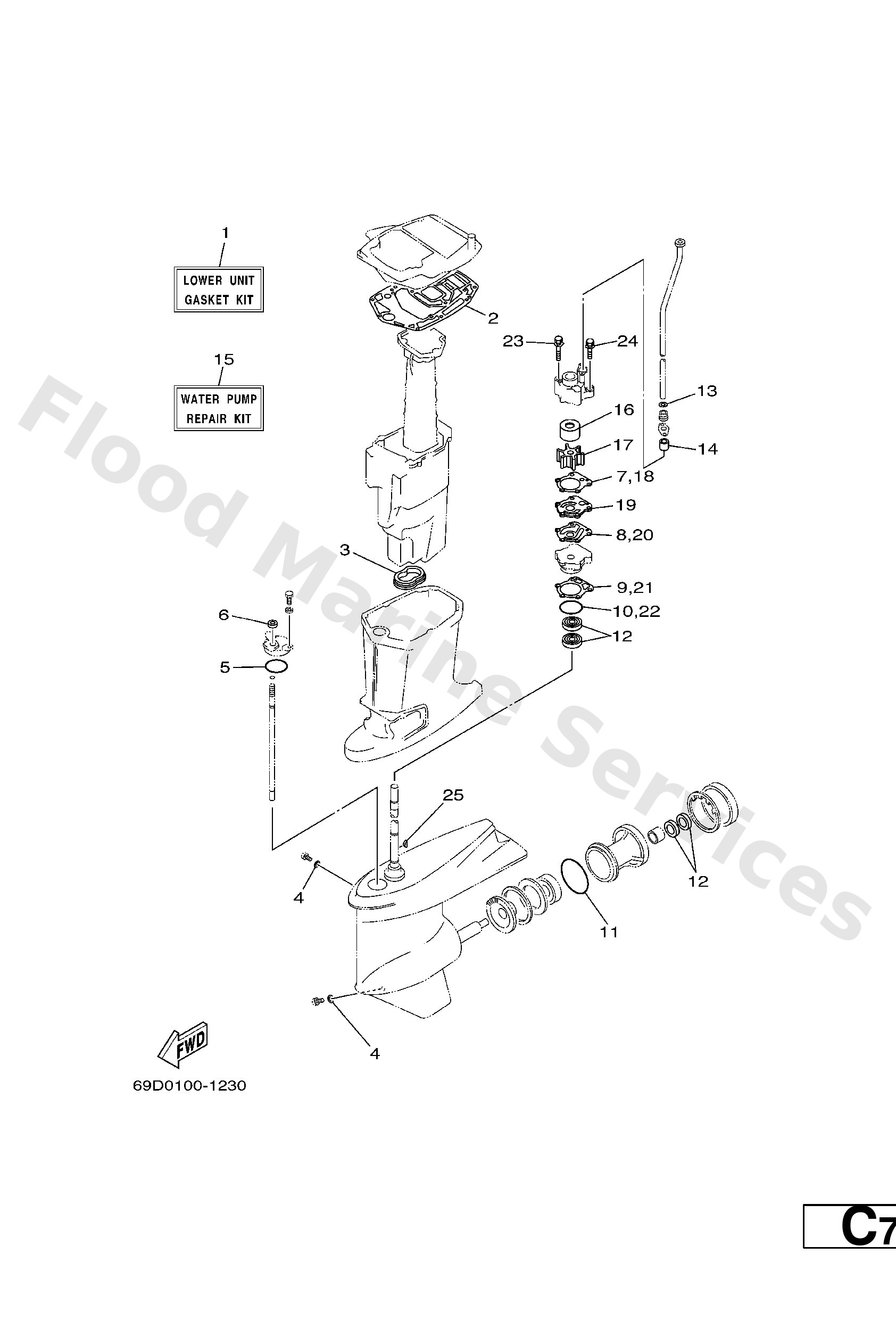

Diagram: REPAIR KIT 2

Diagram

Parts List

69D−W0001−20
Lower unit gasket kit
Diagram Reference: 1
Get Part
6H3−45114−A1
Gasket, upper casing
Diagram Reference: 2
Get Part
6H3−45123−00
Gasket, muffler
Diagram Reference: 3
Get Part
90430−08020
Gasket
Diagram Reference: 4
Get Part
93210−49046
O-ring (620)
Diagram Reference: 5
Get Part
93106−09014
Oil seal
Diagram Reference: 6
Get Part
688−44315−A0
Gasket,water pump 1
Diagram Reference: 7
Get Part
688−44324−A0
Gasket,cartridge 0uter plate
Diagram Reference: 8
Get Part
688−44316−A0
Gasket,water pump 2
Diagram Reference: 9
Get Part
93210−46044
O-ring
Diagram Reference: 10
Get Part
93210−85M97
O-ring(6h1)
Diagram Reference: 11
Get Part
93101−25M03
Oil seal
Diagram Reference: 12
Get Part
90430−12072
Gasket
Diagram Reference: 13
Get Part
663−44366−00
Damper, water seal 2
Diagram Reference: 14
Get Part
69D−W0078−00
Water pump repair kit
Diagram Reference: 15
Get Part
69D−44322−00
Insert, cartridge
Diagram Reference: 16
Get Part
688−44352−03
Impeller
Diagram Reference: 17
Get Part
688−44323−40
Outer plate, cartridge
Diagram Reference: 19
Get Part
90119−08M16
Bolt, with washer(6h0)
Diagram Reference: 23
Get Part
90119−08M13
Bolt, with washer(6h0)
Diagram Reference: 24
Get Part
90280−04M04
Key, woodruff (688)
Diagram Reference: 25
