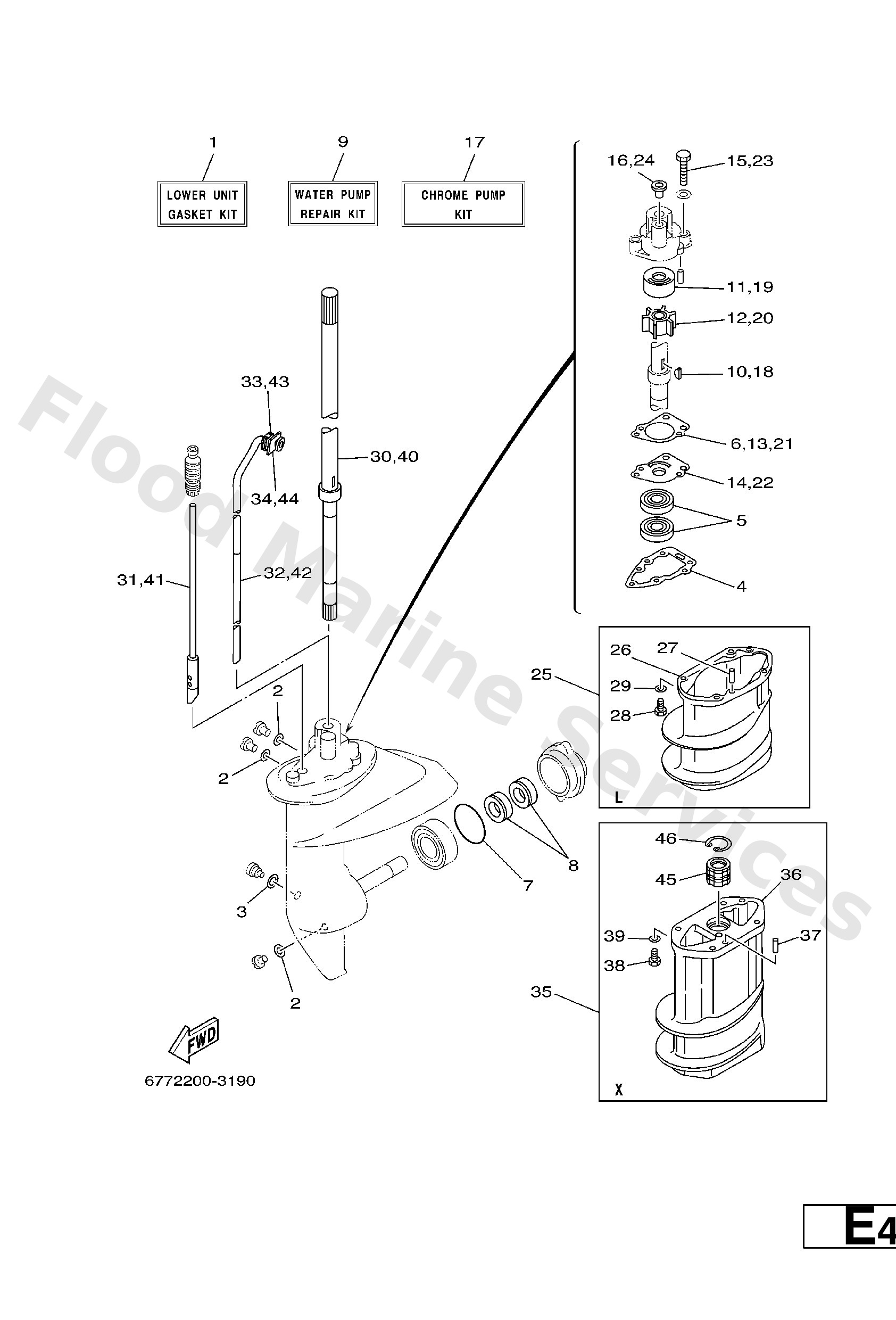

Diagram: REPAIR KIT 2
Parts List
Gasket kit, lower unit
Diagram Reference: 1
Gasket
Diagram Reference: 2
Gasket (6f5)
Diagram Reference: 3
Packing, lower casing
Diagram Reference: 4
Oil seal (18x28x6-647)
Diagram Reference: 5
Gasket, water pump
Diagram Reference: 6
O−Ring
Diagram Reference: 7
Oil seal (655)
Diagram Reference: 8
Water pump repair kit
Diagram Reference: 9
Key, Woodruff
Diagram Reference: 10
Insert, cartridge
Diagram Reference: 11
Impeller
Diagram Reference: 12
Outer plate, cartridge
Diagram Reference: 14
Bolt
Diagram Reference: 15
22 −
Diagram Reference: 16
19 −
Diagram Reference: 17
Insert, cartridge
Diagram Reference: 19
Outer plate, cartridge
Diagram Reference: 22
22 −
Diagram Reference: 27
Bolt
Diagram Reference: 28
Washer
Diagram Reference: 29
Drive shaft comp.
Diagram Reference: 30
Shift cam assembly
Diagram Reference: 31
Tube, water
Diagram Reference: 32
Damper, water seal 1
Diagram Reference: 33
Set plate, water tube
Diagram Reference: 34
Drive Shaft Comp.
Diagram Reference: 40
Shift Cam assembly
Diagram Reference: 41
Water Tube assembly
Diagram Reference: 42
Bushing, drive shaft 3
Diagram Reference: 45
Circlip
Diagram Reference: 46
