Diagram: REPAIR KIT 2

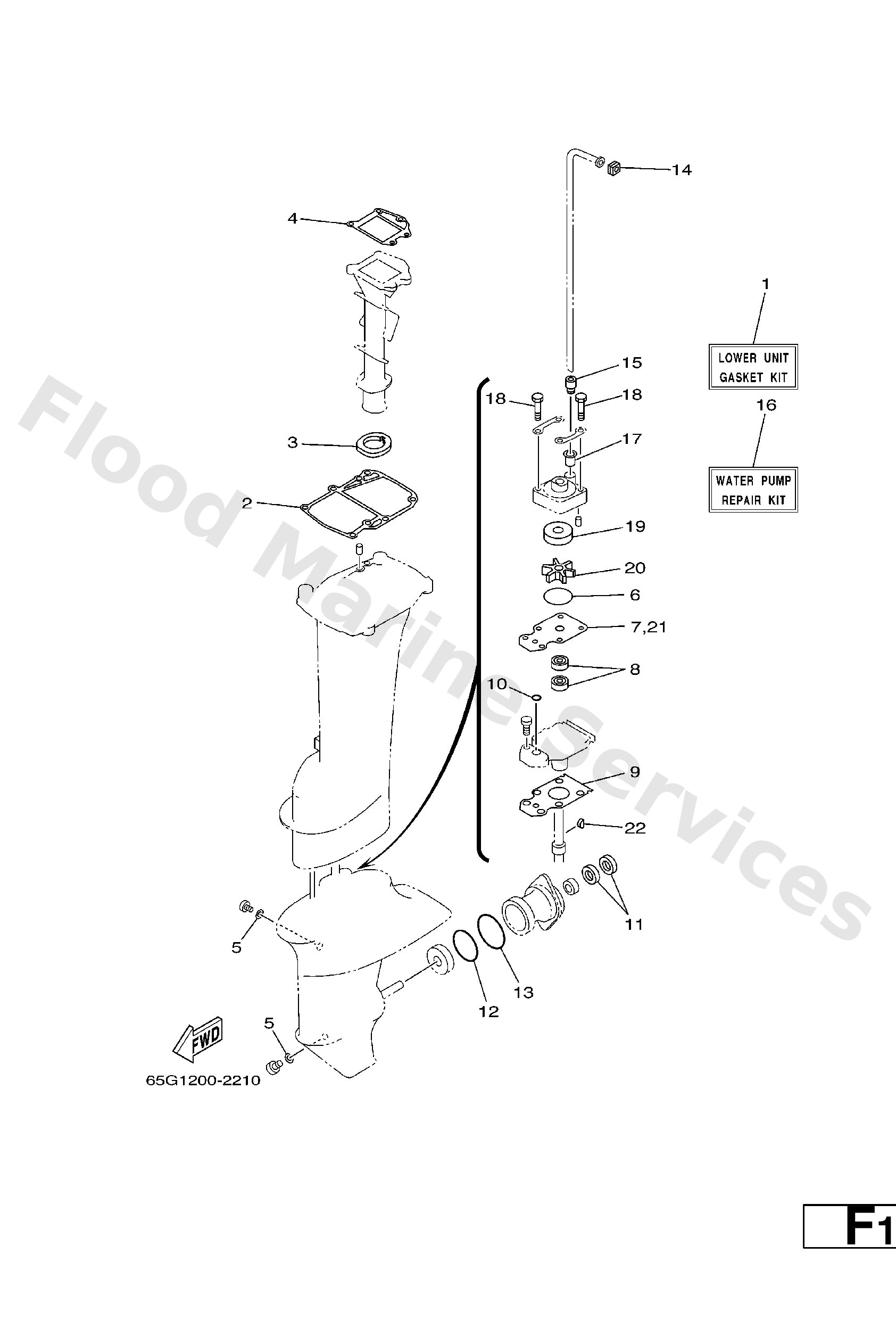

Diagram

Parts List

65G−W0001−C1 (FOR CHROMATE)

21 −

Diagram Reference: 1

63V−45113−A1

Gasket, upper casing

Diagram Reference: 2

63V−41135−00

Gasket, exhaust manifold

Diagram Reference: 3

63V−41133−A1

Gasket, exhaust manifold 1

Diagram Reference: 4

90430−08020

Gasket

Diagram Reference: 5

93210−44398

O-ring(55x)

Diagram Reference: 6

63V−44323−40

Outer plate, cartridge

Diagram Reference: 7

93101−20048

Oil seal (20x30x6-648)

Diagram Reference: 8

63V−45315−A0

Packing, lower casing

Diagram Reference: 9

93210−06ME6

O-ring

Diagram Reference: 10

93101−17054

Oil seal (17x30x6-650)

Diagram Reference: 11

93210−57M09

O-ring (683)

Diagram Reference: 12

93210−56M80

O-ring(6j8)

Diagram Reference: 13

63V−44365−10

Damper, water seal 1

Diagram Reference: 14

63V−44368−00

Rubber, water seal 4

Diagram Reference: 15

65G−W0078−01 (FOR CHROMATE)

21 −

Diagram Reference: 16

647−44366−00

Damper, water seal 2

Diagram Reference: 17

97080−08045

Bolt, hexagon

Diagram Reference: 18

63V−44322−40

Insert, cartridge

Diagram Reference: 19

63V−44352−01

Impeller

Diagram Reference: 20

63V−44338−00

Key, woodruff

Diagram Reference: 22
