F2.5AMH (2003)
REPAIR KIT 2

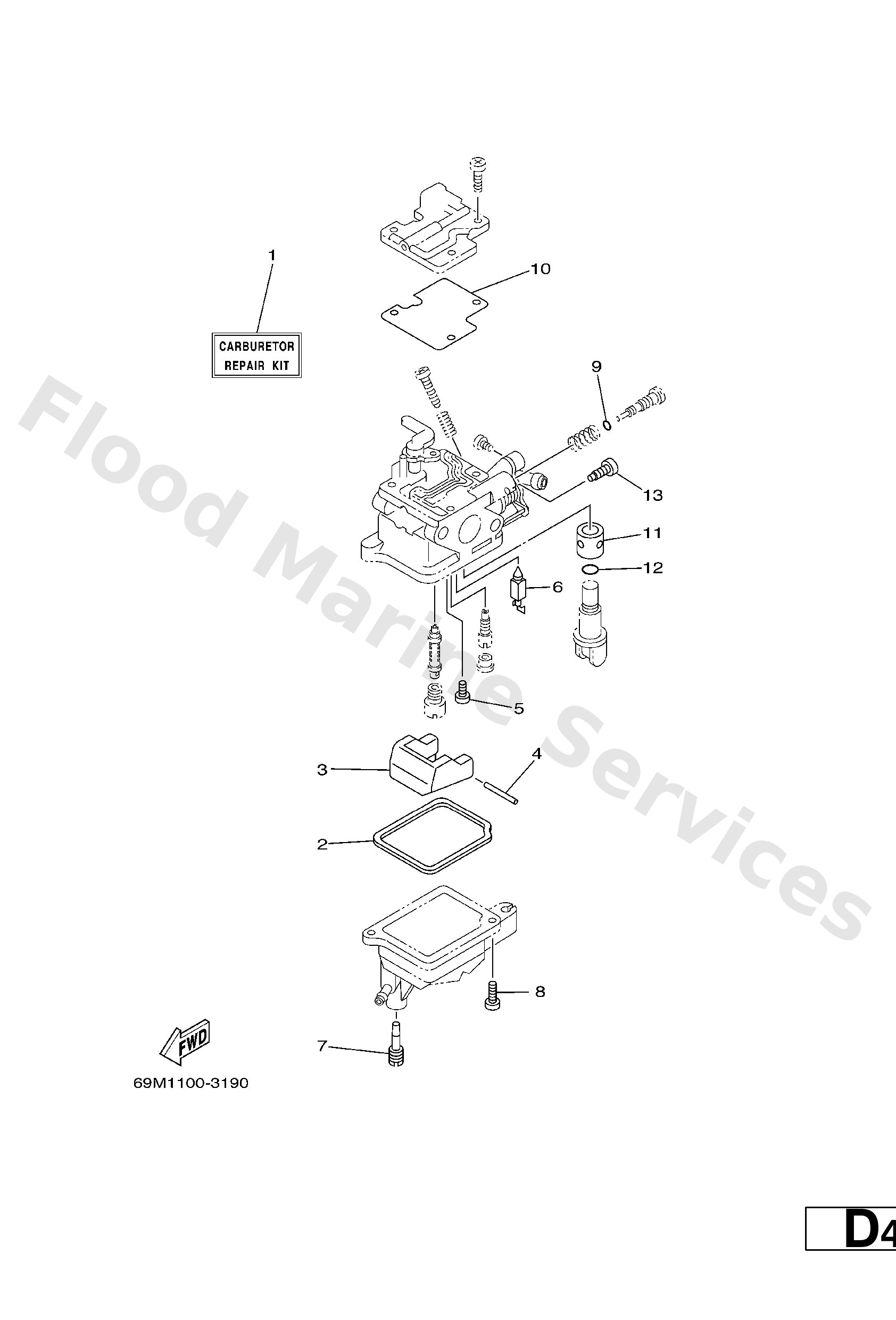

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
69M−W0093−00
Carburetor repair kit
Loading…
↗
2
69M−14984−00
Gasket, float chamber
Loading…
↗
3
69M−14385−00
Float
Loading…
↗
4
6A1−14386−00
Pin, float
Loading…
↗
5
98580−03005
Screw, pan head(78g)
Loading…
↗
6
62Y−14392−00
Valve, needle
Loading…
↗
7
69M−14991−00
Screw
Loading…
↗
8
98580−04010
Screw, pan head (e56)
Loading…
↗
9
2T4−14397−00
O-ring
Loading…
↗
10
69M−14536−00
Gasket
Loading…
↗
11
69M−24523−00
Valve
Loading…
↗
12
69M−24533−00
O-ring
Loading…
↗
13
69M−24535−00
Screw, lever fitting
Loading…
↗
