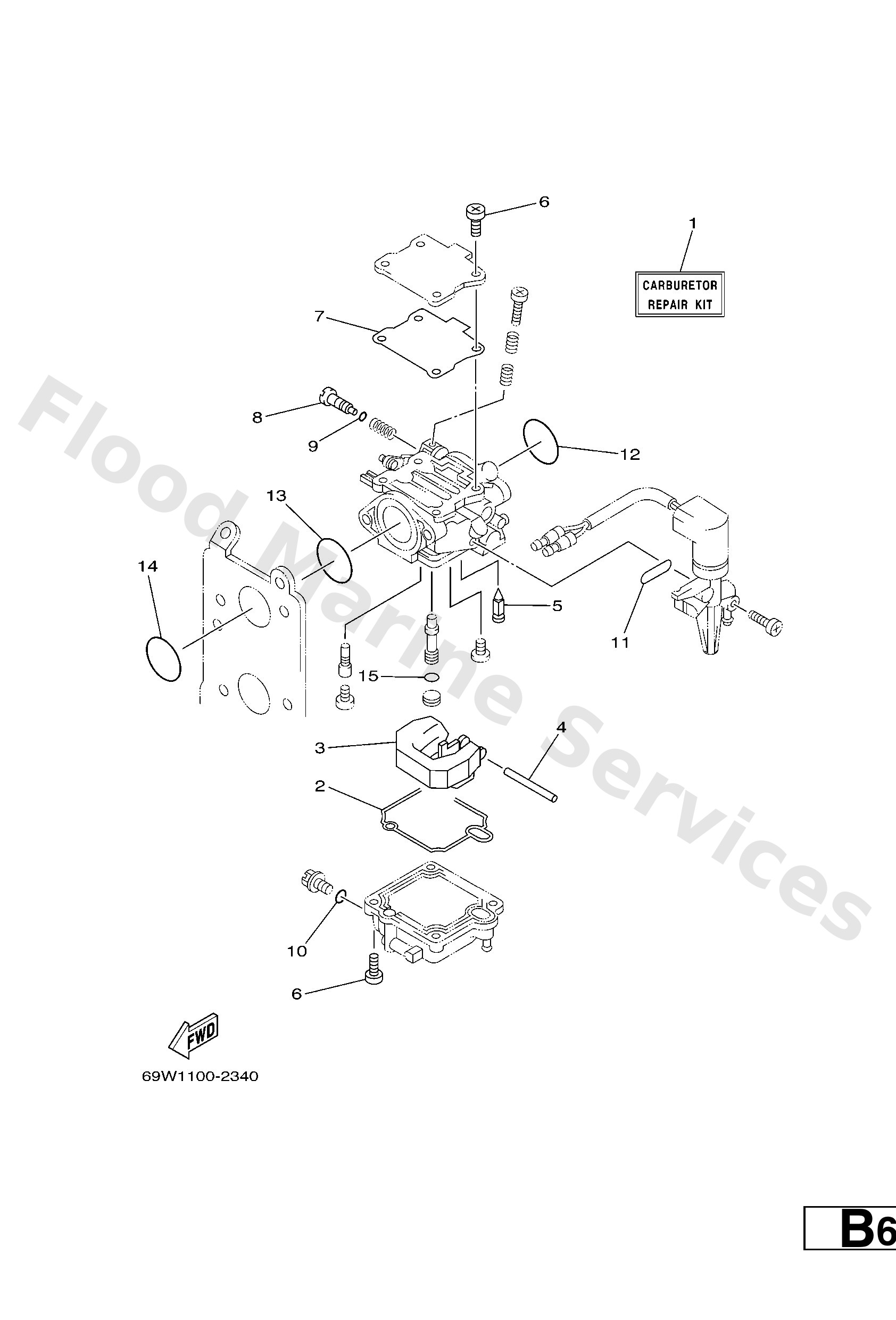

Diagram: REPAIR KIT 2
Parts List
Carburetor repair kit
Diagram Reference: 1
Gasket, float chamber
Diagram Reference: 2
Float
Diagram Reference: 3
Pin, float
Diagram Reference: 4
Valve, needle
Diagram Reference: 5
Screw, throttle
Diagram Reference: 6
Gasket
Diagram Reference: 7
Screw, air adjusting
Diagram Reference: 8
O-ring
Diagram Reference: 9
Ring, o
Diagram Reference: 10
Gasket
Diagram Reference: 11
O-ring
Diagram Reference: 12
O-ring(6l2)
Diagram Reference: 13
O-ring(62y)
Diagram Reference: 14
O-ring
Diagram Reference: 15
