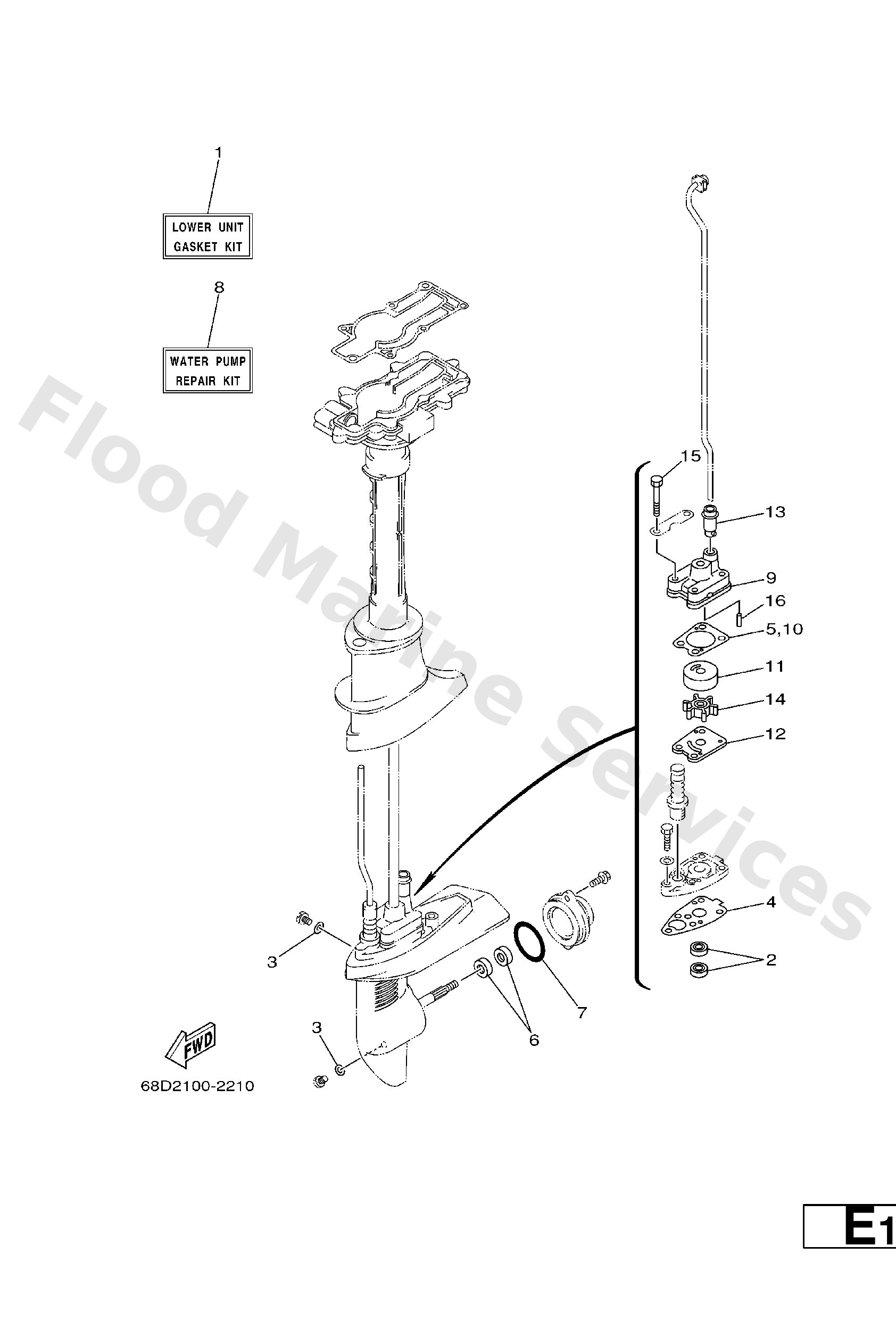

Diagram: REPAIR KIT 2
Parts List
L0wer unit gasket kit
Diagram Reference: 1
Oil seal
Diagram Reference: 2
Gasket
Diagram Reference: 3
Packing, lower cas
Diagram Reference: 4
Gasket, water pump
Diagram Reference: 5
O−Ring
Diagram Reference: 7
Water Pump Repair Kit
Diagram Reference: 8
Housing water pump
Diagram Reference: 9
Insert, cartridge
Diagram Reference: 11
Outer plate, cartridge
Diagram Reference: 12
Damper, water seal 2
Diagram Reference: 13
Impeller
Diagram Reference: 14
Bolt
Diagram Reference: 15
Pin, Dowel
Diagram Reference: 16
