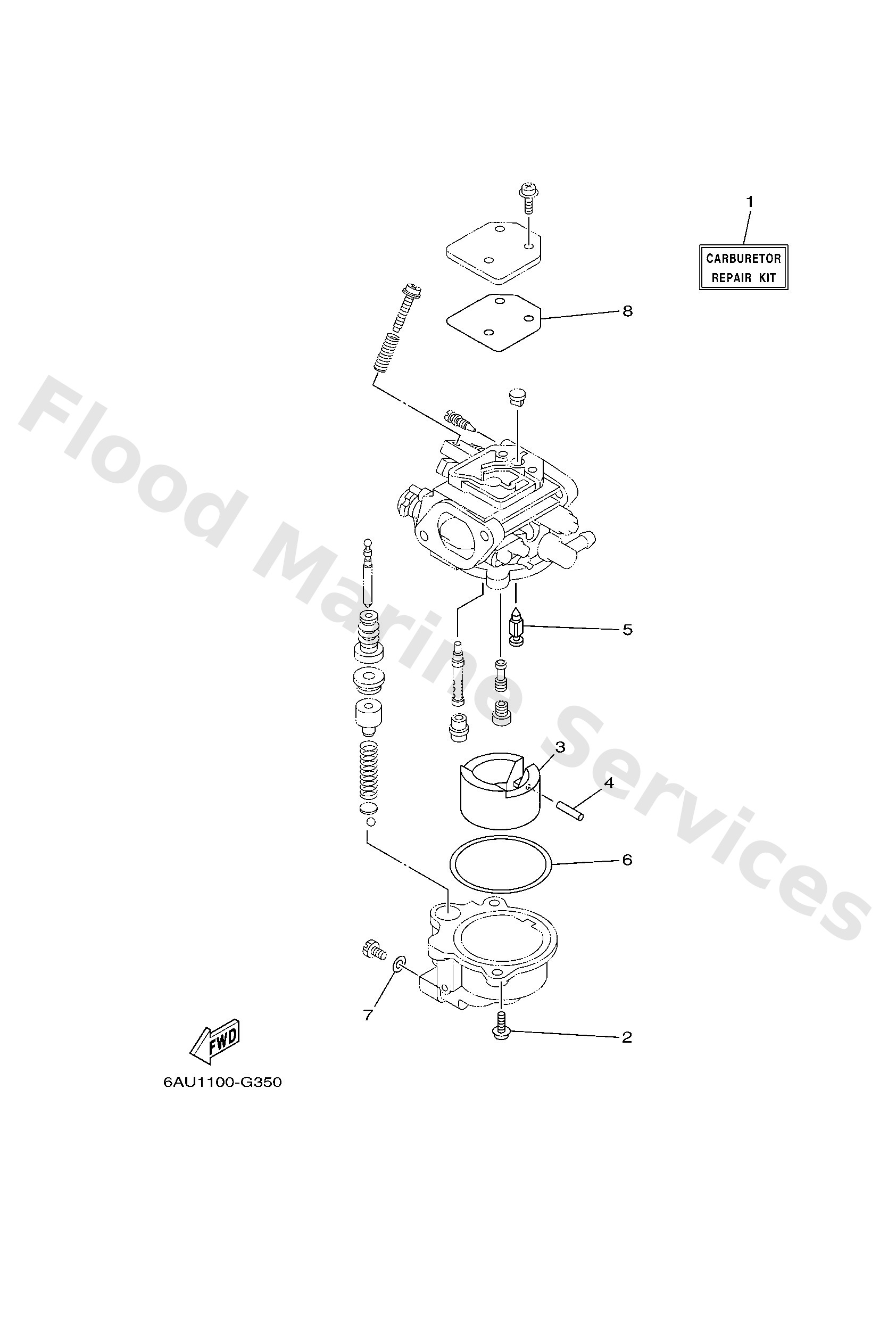

Diagram: REPAIR KIT 2
Parts List
Carburetor repair kit
Diagram Reference: 1
Screw, With Washer
Diagram Reference: 2
Float
Diagram Reference: 3
Pin, float
Diagram Reference: 4
Valve, needle
Diagram Reference: 5
Gasket, float chamber
Diagram Reference: 6
Gasket, drin screw
Diagram Reference: 7
Gasket
Diagram Reference: 8
